The World's Largest Independent Producer of Alternators 1 - 5,000kVA
Industrial / ECP3C 4 poli

ECP3

4 poli

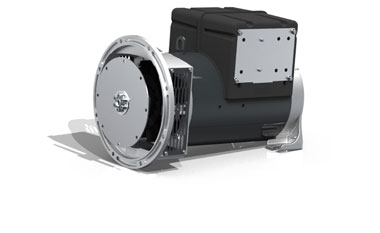

The ECP3 C-Type range has many product features designed into the alternator.
C-Type alternators make the most of energy conversion to produce the maximum power to size ratio.
C-Type is now one of the simplest alternators to assemble, integrate, configure and maintain with OEM equipment.
Our aim was to deliver maximum power from the smallest, lightest and strongest alternators and our designers have lavished the C-Type with much more flexibility.
The entire series is manufactured according to, and complies with, the most common specifications such as CEI 2-3, IEC 34-1, EN 60034-1, VDE 0530, BS 4999-5000, CAN/ CSA-C22.2 No14-95- No100-95.

Find out more   Accessori

Caratteristiche Generali

ECP3C 4 poli
Range potenza (kVA) 6.5 - 18
Riferimento codice avvolgimento T0405S3
Poli 4
Regolatore DSR
Sovravelocità massima (RPM) 2250
Classe isolamento IP23
Altitudine (m) 0-1000
Modelli Range potenza (kVA)
trifase
ECP3 1S4 C 6.5 - 7.8
ECP3 2S4 C 8 - 9.6
ECP3 1L4 C 11 - 13.2
ECP3 2L4 C 13.5 - 16.2
ECP3 3L4 C 15 - 18


Documentazione tecnica

DDS - Dynamic Data Support

Crea una scheda tecnica personalizzata secondo le tue particolari specifiche.

Clicca qui



Disegni d'ingombro
