NPE32 ![](/attatchments/images/C-Type%20Logo%20Blue_RGB.png)
4 极发电机

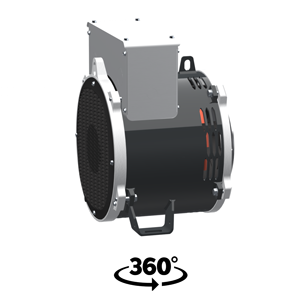

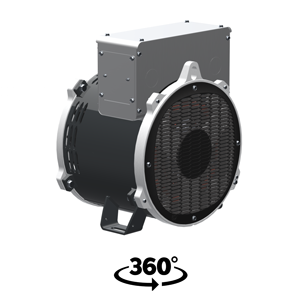

The NPE32 C-Type range has many product features designed into the alternator.
C-Type alternators make the most of energy conversion to produce the maximum power to size ratio.
C-Type is now one of the simplest alternators to assemble, integrate, configure and maintain with OEM equipment.
Our aim was to deliver maximum power from the smallest, lightest and strongest alternators and our designers have lavished the C-Type with much more flexibility.
The entire series is manufactured according to, and complies with, the most common specifications such as CEI 2-3, IEC 34-1, EN 60034-1, VDE 0530, BS 4999-5000, CAN/ CSA-C22.2 No14-95- No100-95.
![](/media/rotation_360/npe32c/npe32c_00.png)
![](/media/rotation_360/npe32c/npe32c_01.png)
![](/media/rotation_360/npe32c/npe32c_02.png)
![](/media/rotation_360/npe32c/npe32c_03.png)
![](/media/rotation_360/npe32c/npe32c_04.png)
![](/media/rotation_360/npe32c/npe32c_05.png)
![](/media/rotation_360/npe32c/npe32c_06.png)
![](/media/rotation_360/npe32c/npe32c_07.png)
![](/media/rotation_360/npe32c/npe32c_08.png)
![](/media/rotation_360/npe32c/npe32c_09.png)
![](/media/rotation_360/npe32c/npe32c_10.png)
![](/media/rotation_360/npe32c/npe32c_11.png)
![](/media/rotation_360/npe32c/npe32c_12.png)
![](/media/rotation_360/npe32c/npe32c_13.png)
![](/media/rotation_360/npe32c/npe32c_14.png)
![](/media/rotation_360/npe32c/npe32c_15.png)
![](/media/rotation_360/npe32c/npe32c_16.png)
![](/media/rotation_360/npe32c/npe32c_17.png)
![](/media/rotation_360/npe32c/npe32c_18.png)
![](/media/rotation_360/npe32c/npe32c_19.png)
![](/media/rotation_360/npe32c/npe32c_20.png)
![](/media/rotation_360/npe32c/npe32c_21.png)
![](/media/rotation_360/npe32c/npe32c_22.png)
![](/media/rotation_360/npe32c/npe32c_23.png)
![](/media/rotation_360/npe32c/npe32c_24.png)
![](/media/rotation_360/npe32c/npe32c_25.png)
![](/media/rotation_360/npe32c/npe32c_26.png)
![](/media/rotation_360/npe32c/npe32c_27.png)
![](/media/rotation_360/npe32c/npe32c_28.png)
![](/media/rotation_360/npe32c/npe32c_29.png)
![](/media/rotation_360/npe32c/npe32c_30.png)
![](/media/rotation_360/npe32c/npe32c_31.png)
![](/media/rotation_360/npe32c/npe32c_32.png)
![](/media/rotation_360/npe32c/npe32c_33.png)
![](/media/rotation_360/npe32c/npe32c_34.png)
![](/media/rotation_360/npe32c/npe32c_35.png)
般特征
NPE32C 4 pole | |
---|---|
功率范围 (kVA) | 5 - 42 |
线圈代码 | T0405S3 |
电极 | 4 |
调节器 | DSR |
超速 (RPM) | 2250 |
防护等级 | IP23 |
高度 (m) | 0-1000 |
型号 | 功率范围 (kVA) | |
---|---|---|
单相 | 三相 | |
NPE32 1S4 C | 5 - 6.5 | 8 - 10 |
NPE32 2S4 C | 7 - 8 | 11 - 13 |
NPE32 1M4 C | 11 - 13 | 16 - 19 |
NPE32 2M4 C | 13.5 - 17 | 20 - 24 |
NPE32 L4 C | 16.5 - 20 | 25 - 31 |
NPE32 VL4 C | 22 - 25 | 35 - 42 |
