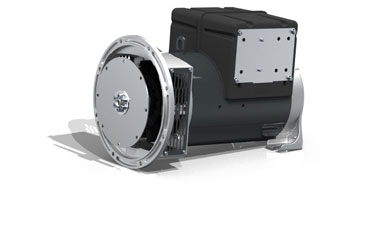

ECP3 |  |
4 极发电机
1 单相专用
The ECP3 C-Type range has many product features designed into the alternator.
C-Type alternators make the most of energy conversion to produce the maximum power to size ratio.
C-Type is now one of the simplest alternators to assemble, integrate, configure and maintain with OEM equipment.
Our aim was to deliver maximum power from the smallest, lightest and strongest alternators and our designers have lavished the C-Type with much more flexibility.
The entire series is manufactured according to, and complies with, the most common specifications such as CEI 2-3, IEC 34-1, EN 60034-1, VDE 0530, BS 4999-5000, CAN/ CSA-C22.2 No14-95- No100-95.
般特征
| ECP3C 4 极（单相专用） | |
|---|---|
| 功率范围 (kVA) | 5 - 13.5 |
| 线圈代码 | S4246B3 |
| 电极 | 4 |
| 调节器 | DSR |
| 超速 (RPM) | 2250 |
| 防护等级 | IP23 |
| 高度 (m) | 0-1000 |
| 型号 | 功率范围 (kVA) |
|---|---|
| 单相 | |
| ECP3 1S4 C | 5 - 6 |
| ECP3 2S4 C | 6 - 7.5 |
| ECP3 1L4 C | 8.5 - 10 |
| ECP3 2L4 C | 10 - 12 |
| ECP3 3L4 C | 11 - 13.5 |
技术资料
外形尺寸图纸
ECP3 1S4 C
ECP3 2S4 C
ECP3 1L4 C
ECP3 2L4 C
ECP3 3L4 C
