工业 / ECP28C 4 极(单相专用)

ECP28

4 极发电机
1 单相专用

The ECP28 C-Type range has many product features designed into the alternator.
C-Type alternators make the most of energy conversion to produce the maximum power to size ratio.
C-Type is now one of the simplest alternators to assemble, integrate, configure and maintain with OEM equipment.
Our aim was to deliver maximum power from the smallest, lightest and strongest alternators and our designers have lavished the C-Type with much more flexibility.
The entire series is manufactured according to, and complies with, the most common specifications such as CEI 2-3, IEC 34-1, EN 60034-1, VDE 0530, BS 4999-5000, CAN/ CSA-C22.2 No14-95- No100-95.

Find out more   Accessories

般特征

ECP28C 4 极(单相专用)
功率范围 (kVA)5 - 25
线圈代码S4235B3
电极4
调节器DSR
超速 (RPM)2250
防护等级IP23
高度 (m)0-1000
型号功率范围 (kVA)
单相
ECP28 1VS4 C5 - 6
ECP28 2VS4 C7 - 8.5
ECP28 1S4 C8.5 - 10.5
ECP28 2S4 C10.5 - 12.5
ECP28 3S4 C12.5 - 15
ECP28 M4 C14.5 - 17
ECP28 L4 C18 - 22
ECP28 VL4 C22 - 25


技术资料

DDS - 动态数据支持

根据您的规格要求,创建自己的个性化技术数据表。

从此处获取

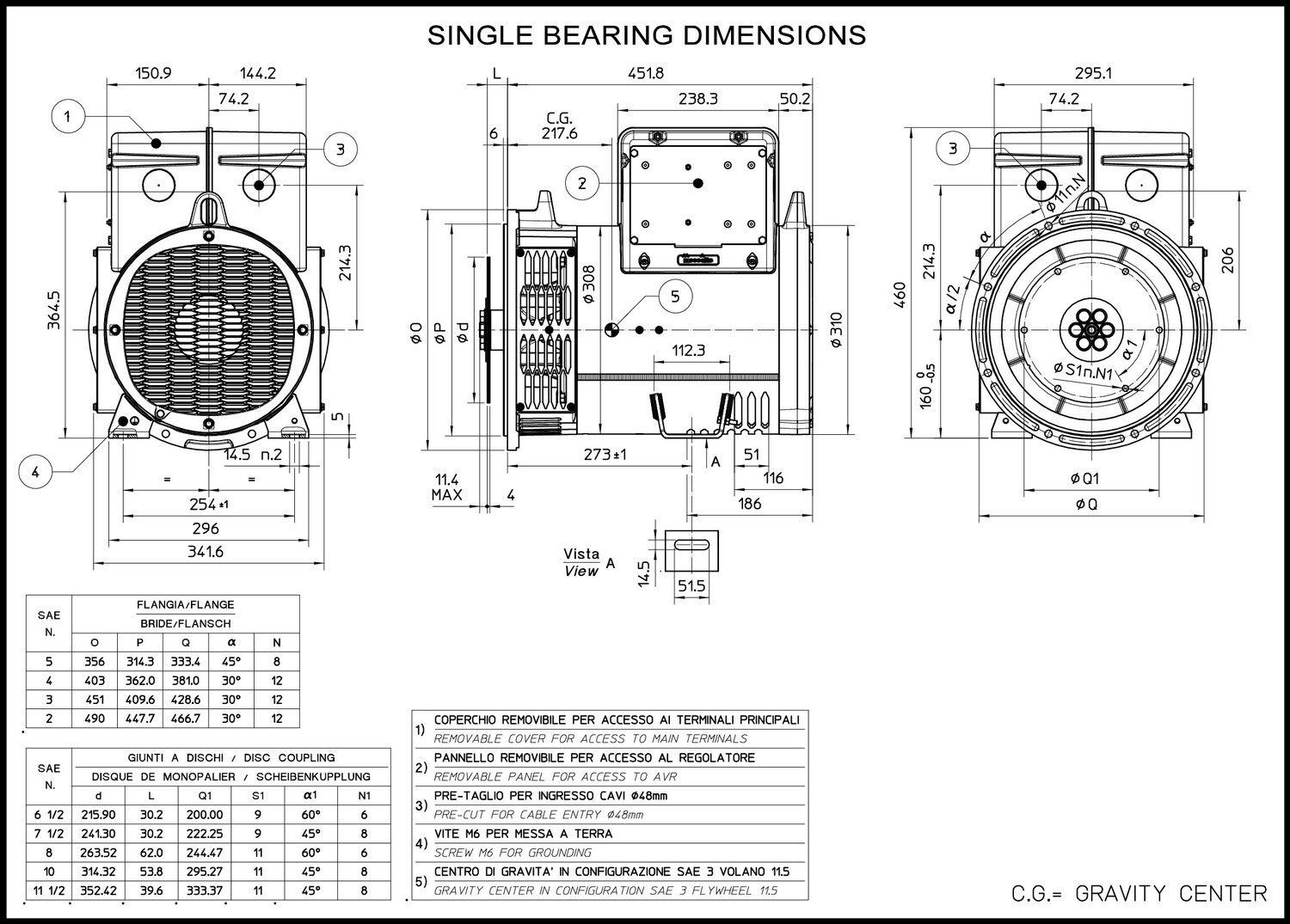

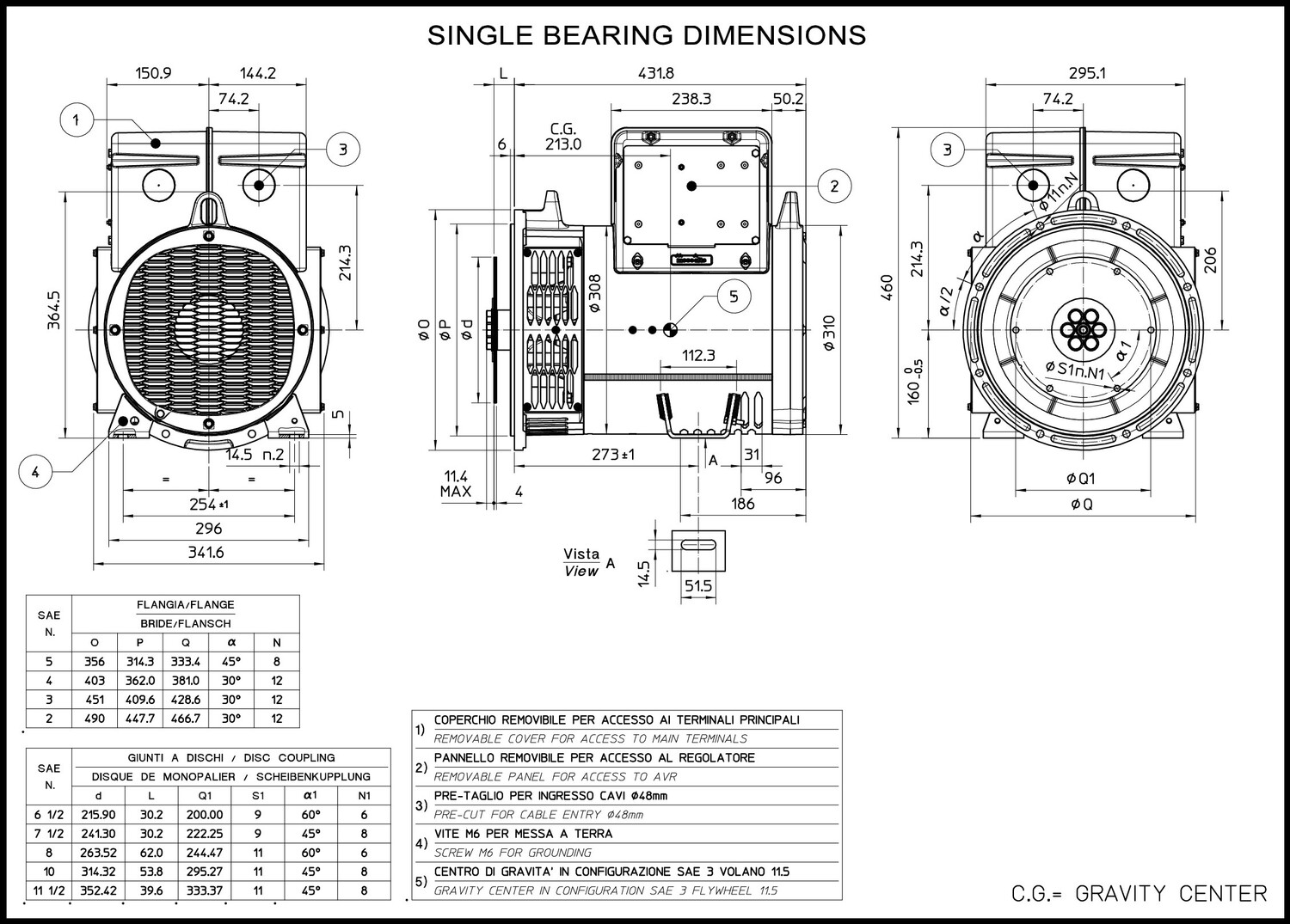

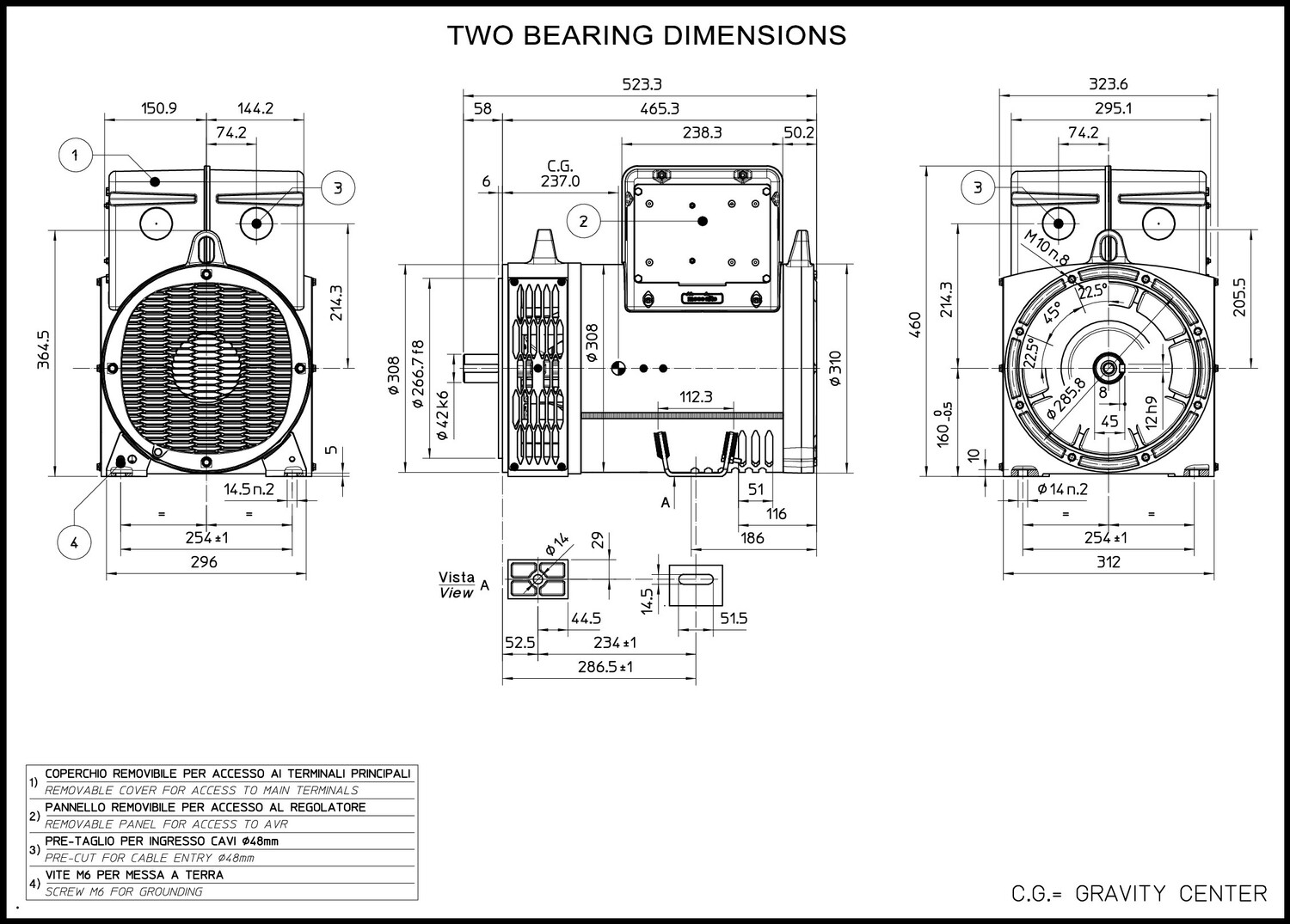

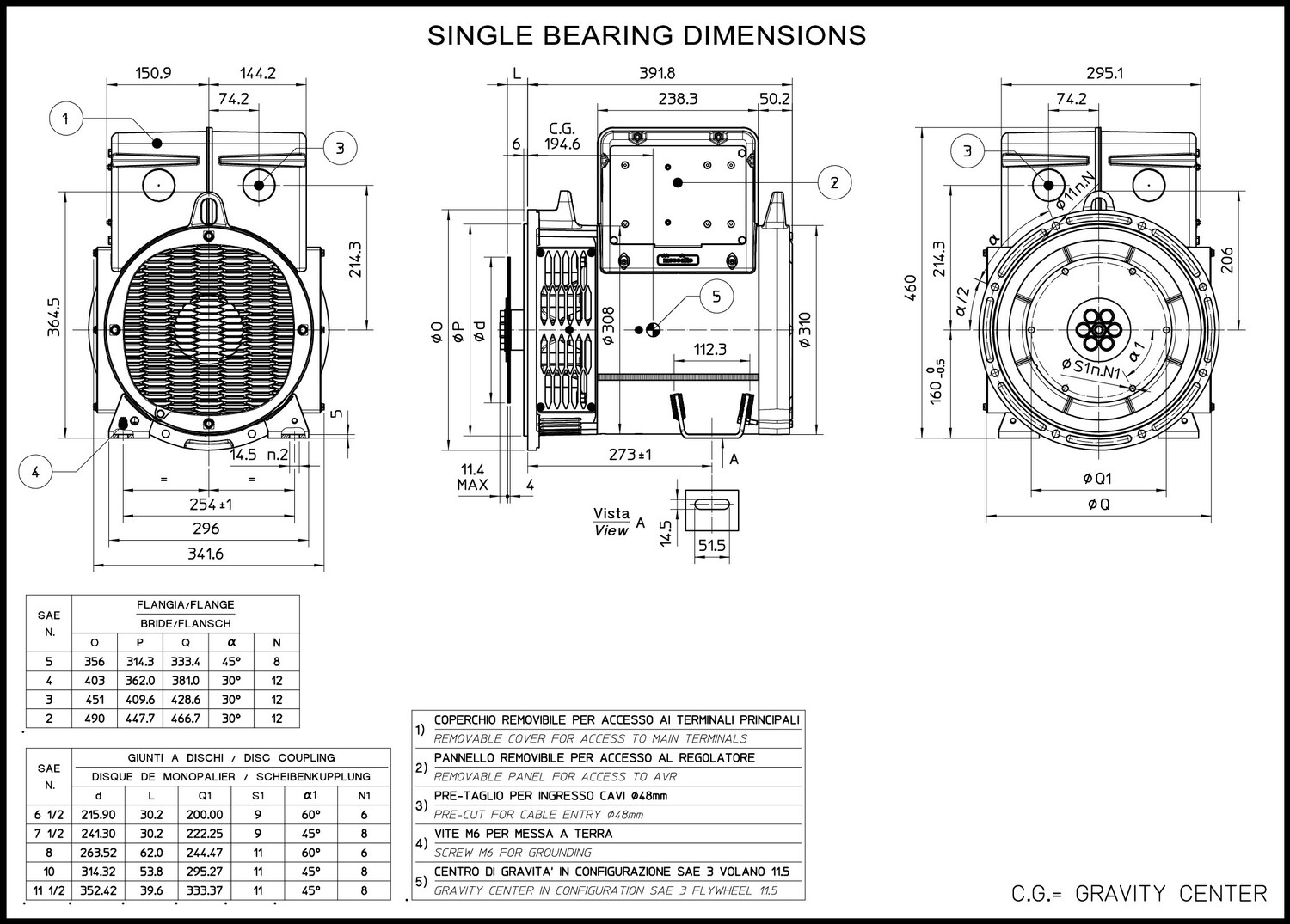

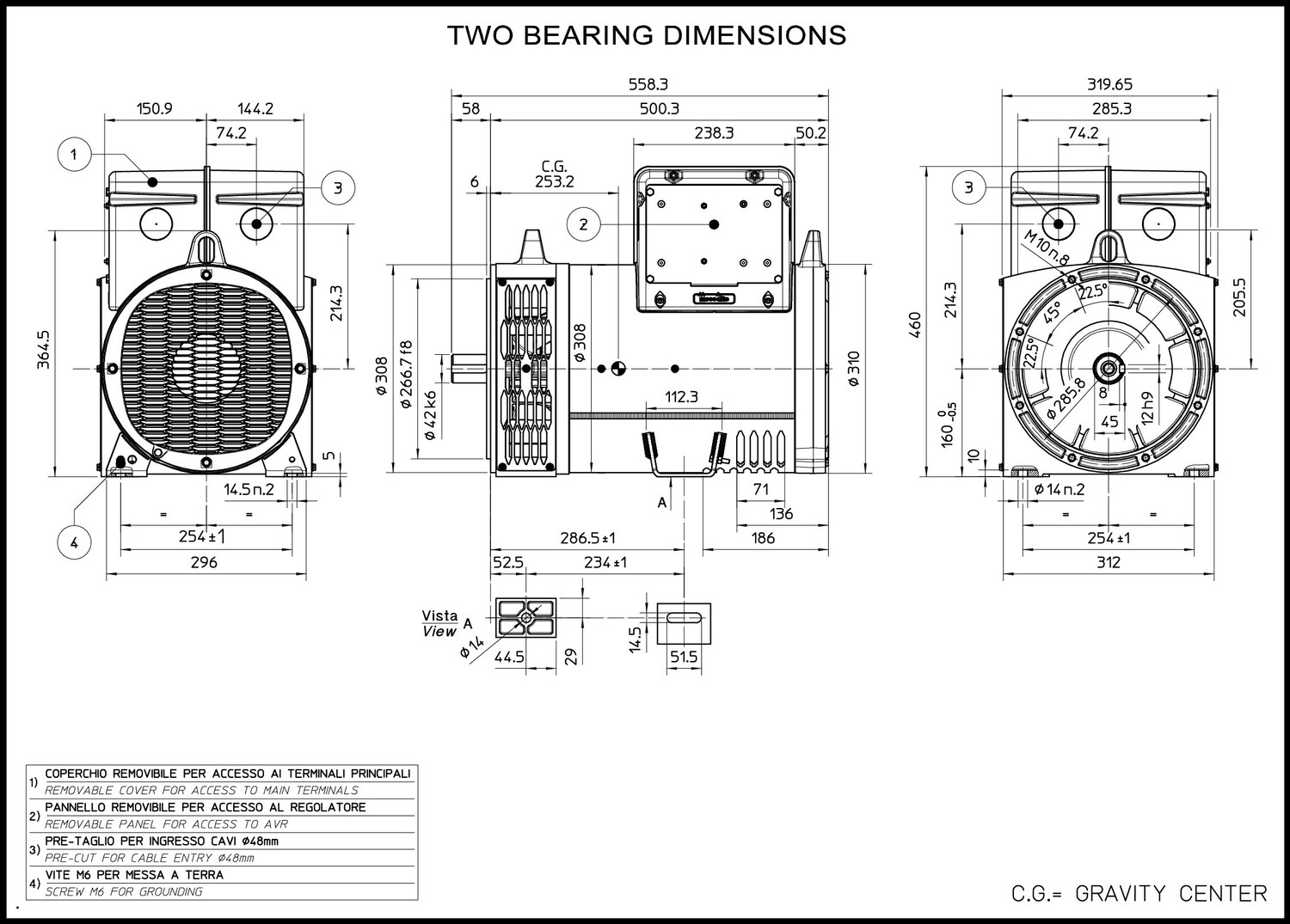

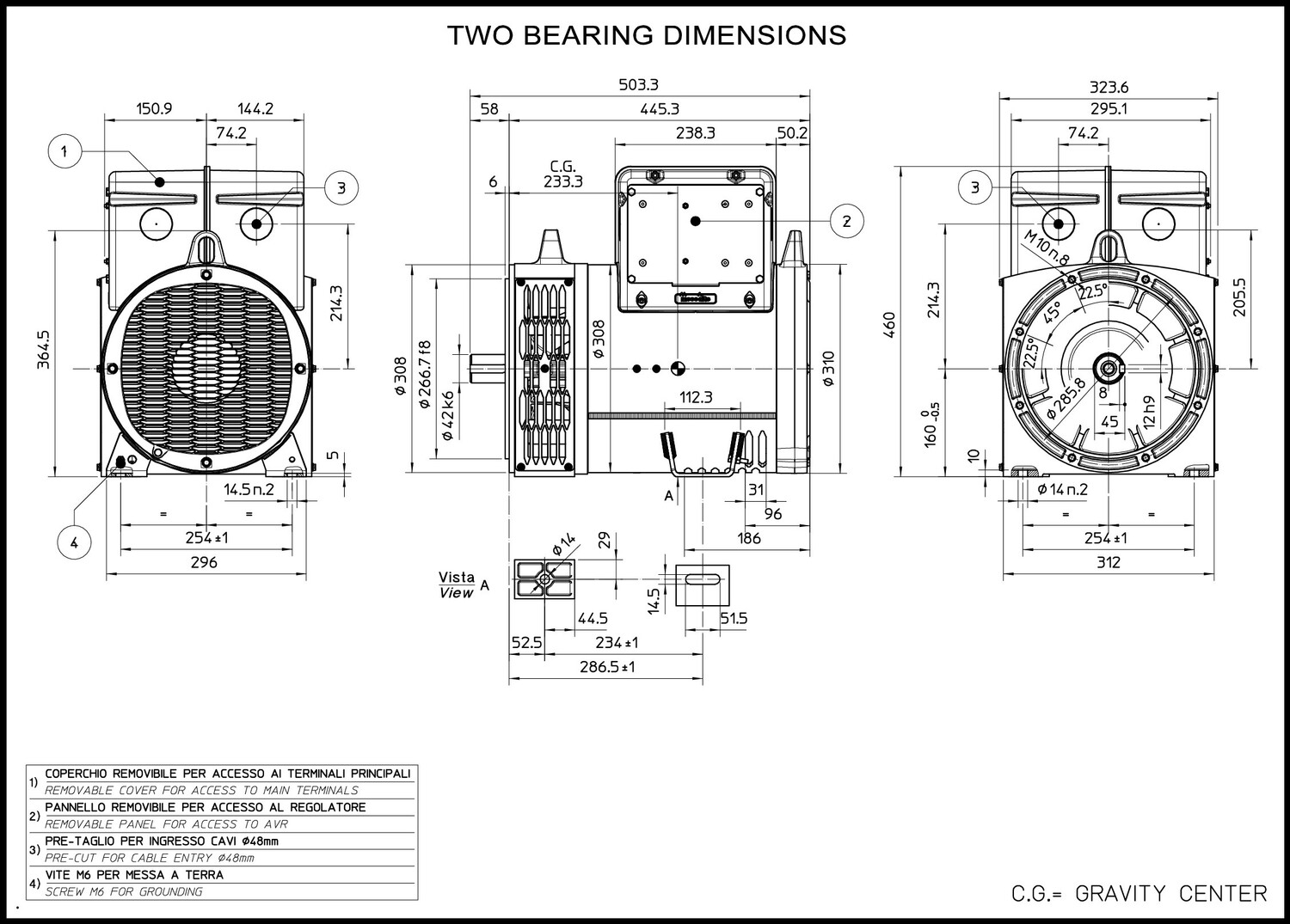

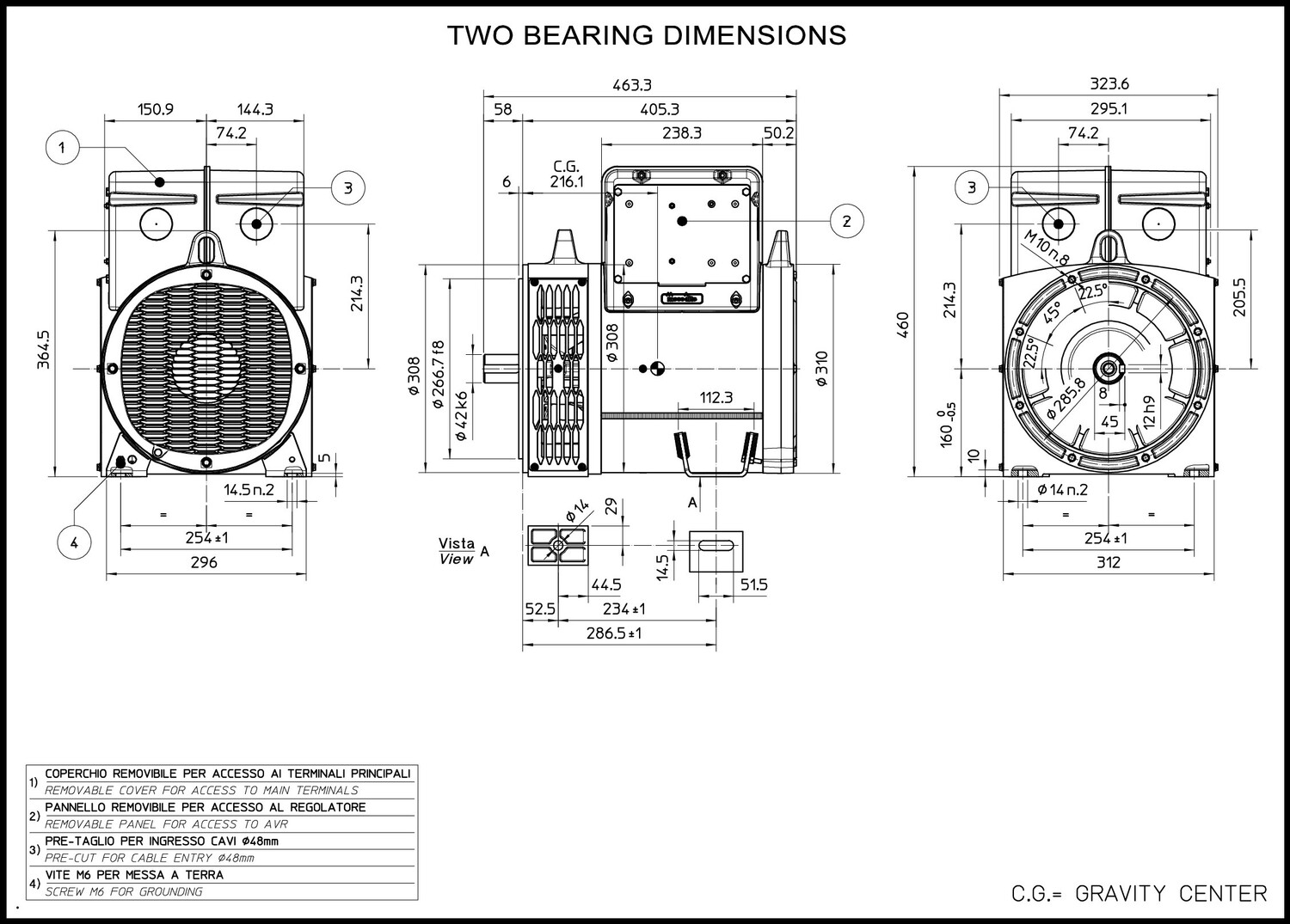

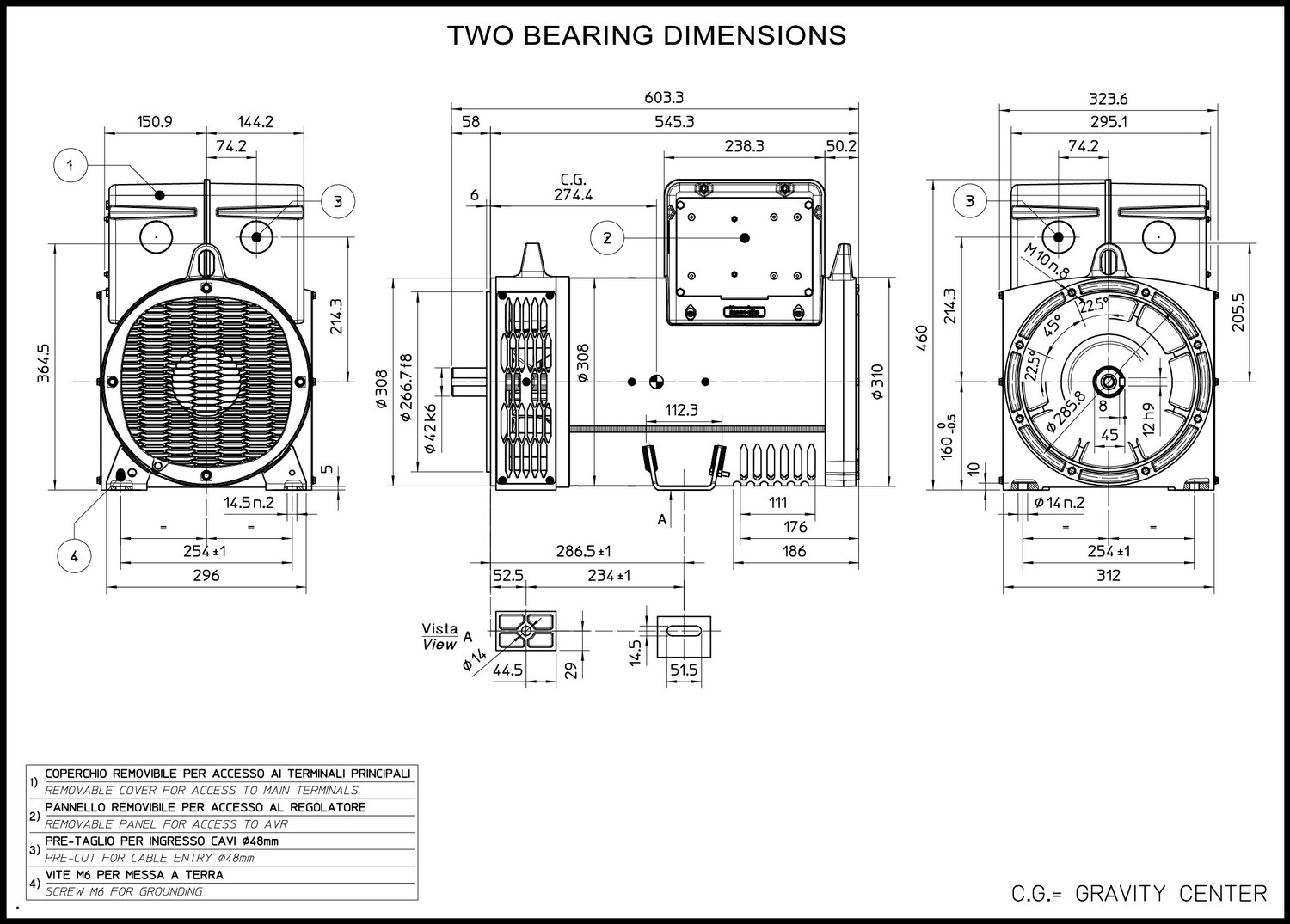

外形尺寸图纸
