NPE32 |  |
4 poli
The NPE32 C-Type range has many product features designed into the alternator.
C-Type alternators make the most of energy conversion to produce the maximum power to size ratio.
C-Type is now one of the simplest alternators to assemble, integrate, configure and maintain with OEM equipment.
Our aim was to deliver maximum power from the smallest, lightest and strongest alternators and our designers have lavished the C-Type with much more flexibility.
The entire series is manufactured according to, and complies with, the most common specifications such as CEI 2-3, IEC 34-1, EN 60034-1, VDE 0530, BS 4999-5000, CAN/ CSA-C22.2 No14-95- No100-95.
Caratteristiche Generali
| NPE32C 4 pole | |
|---|---|
| Range potenza (kVA) | 5 - 42 |
| Riferimento codice avvolgimento | T0405S3 |
| Poli | 4 |
| Regolatore | DSR |
| Sovravelocità massima (RPM) | 2250 |
| Classe isolamento | IP23 |
| Altitudine (m) | 0-1000 |
| Modelli | Range potenza (kVA) | |
|---|---|---|
| monofase | trifase | |
| NPE32 1S4 C | 5 - 6.5 | 8 - 10 |
| NPE32 2S4 C | 7 - 8 | 11 - 13 |
| NPE32 1M4 C | 11 - 13 | 16 - 19 |
| NPE32 2M4 C | 13.5 - 17 | 20 - 24 |
| NPE32 L4 C | 16.5 - 20 | 25 - 31 |
| NPE32 VL4 C | 22 - 25 | 35 - 42 |
Documentazione tecnica
DDS - Dynamic Data Support
Create your own and personalized technical datasheet according to your specifications.

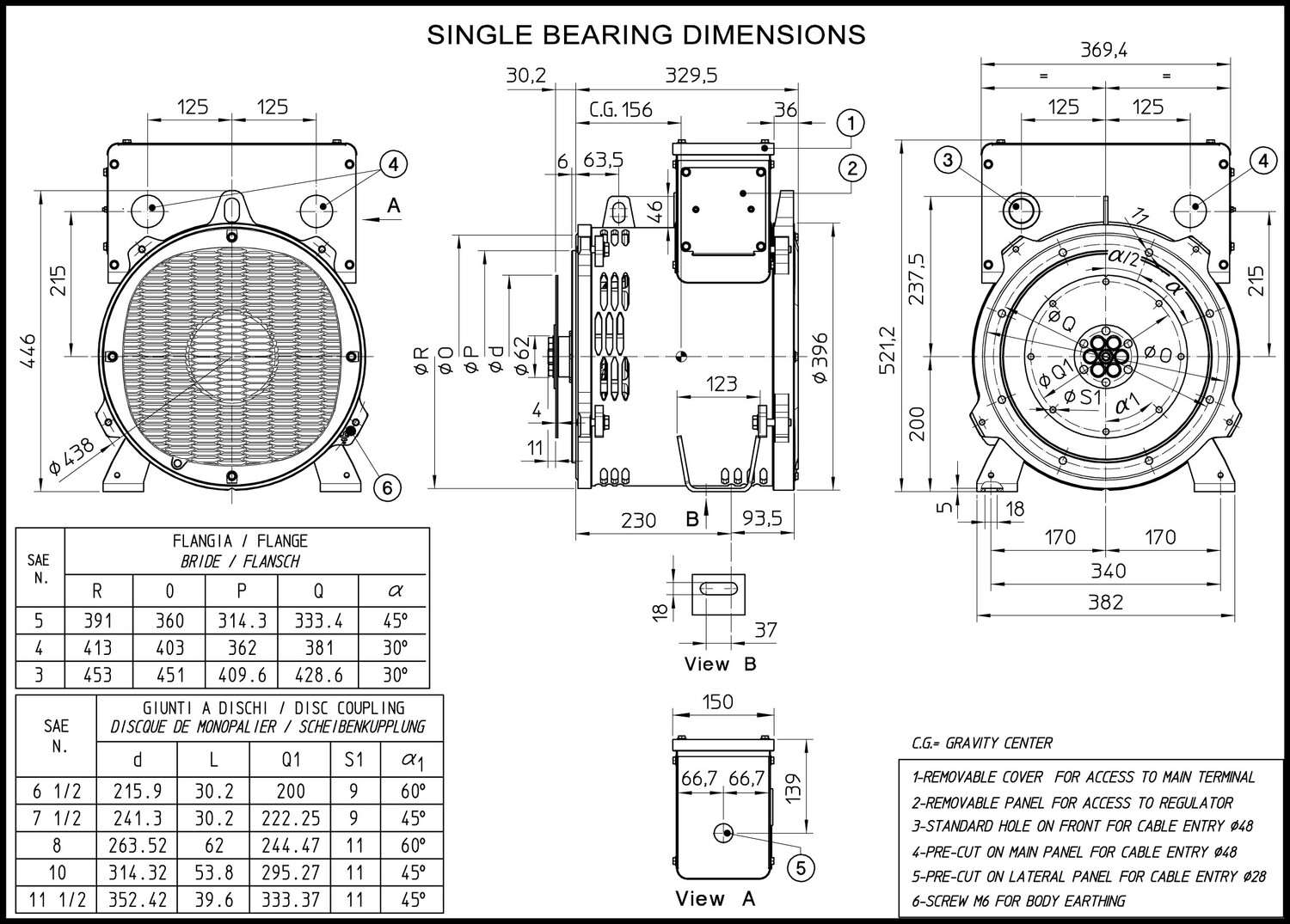

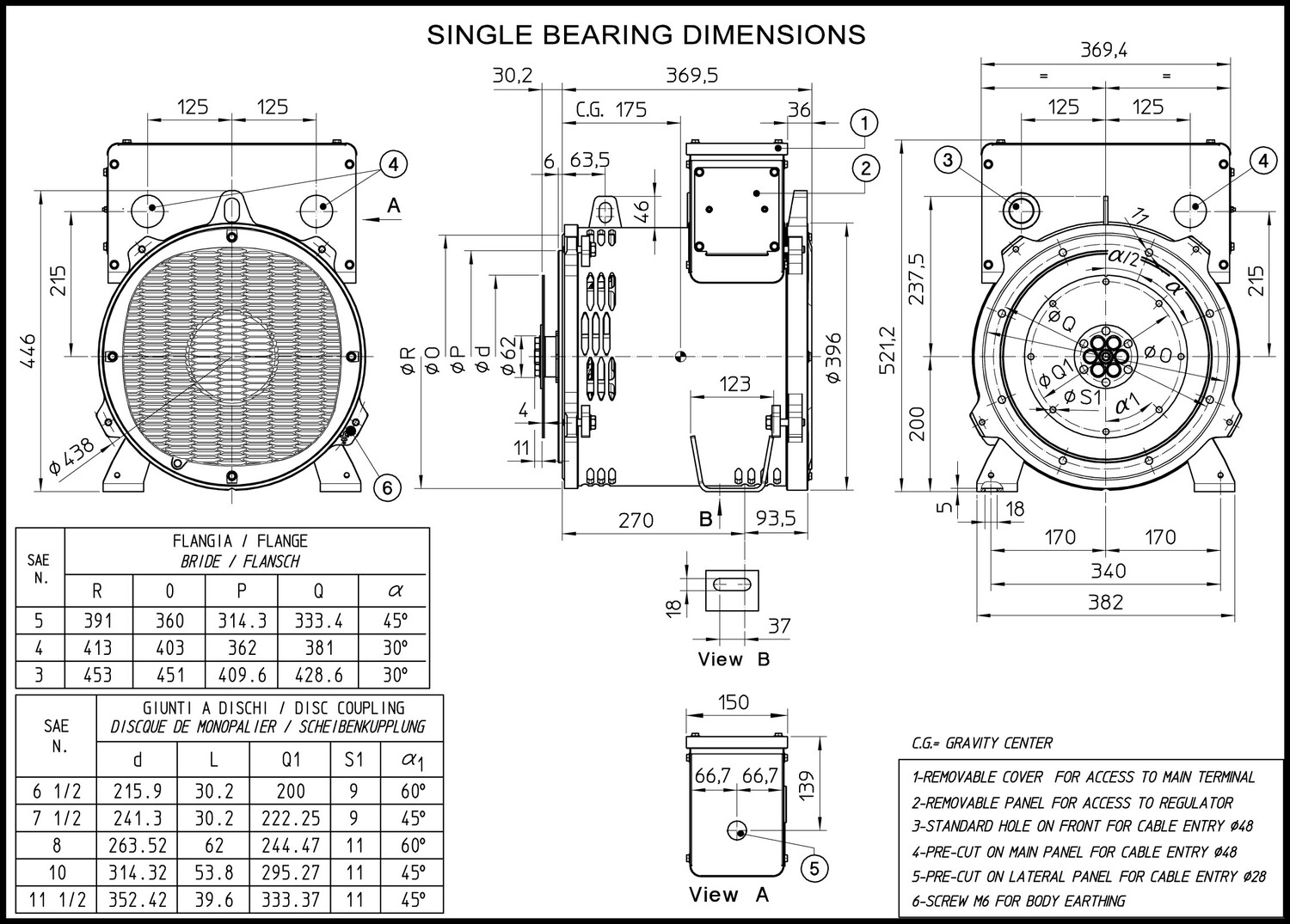

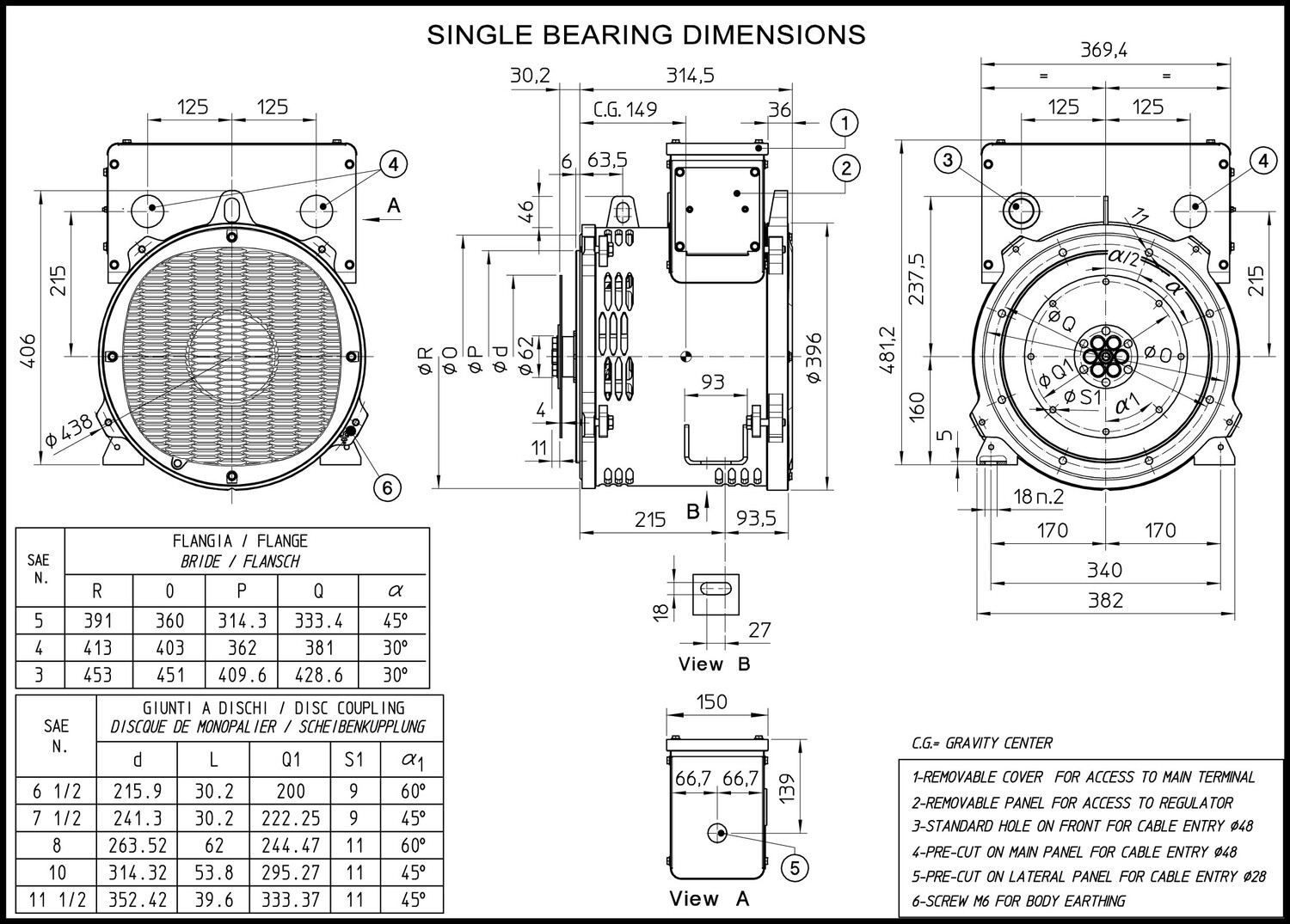

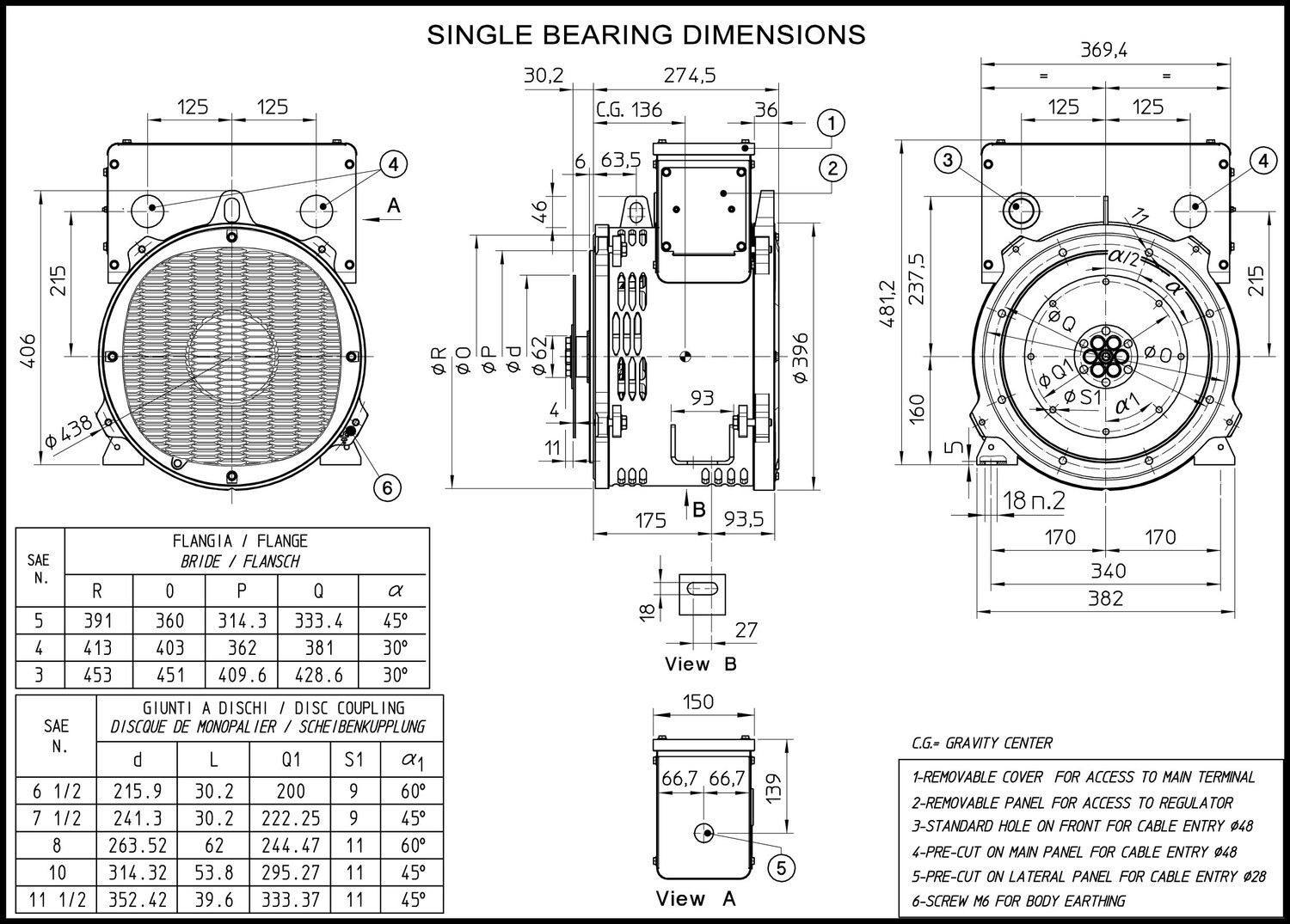

Disegni d'ingombro
NPE32 1S4 C
NPE32 2S4 C
NPE32 1M4 C
NPE32 2M4 C
NPE32 L4 C
NPE32 VL4 C
