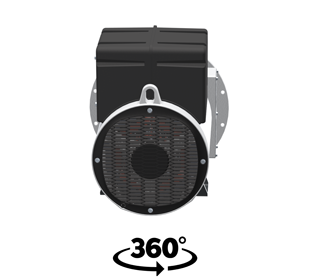

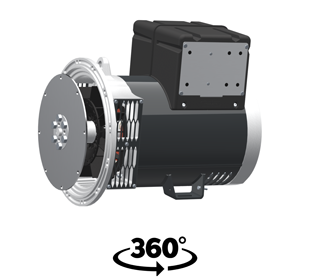

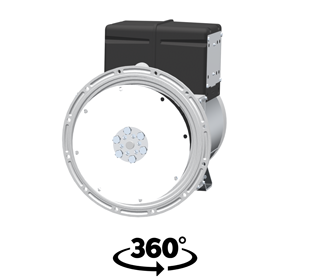

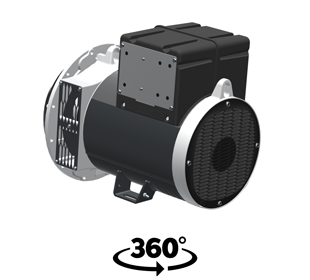

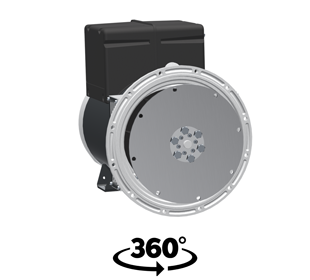

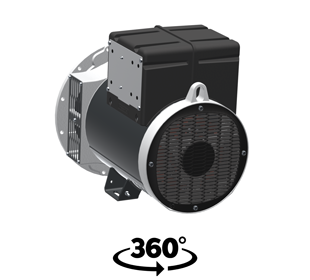

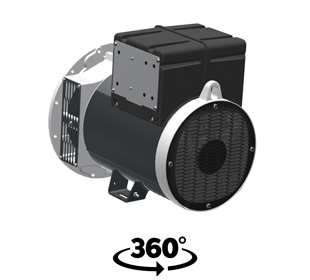

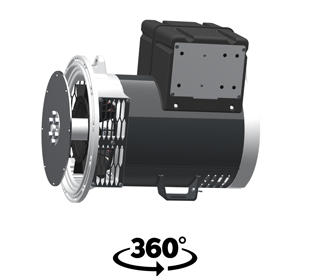

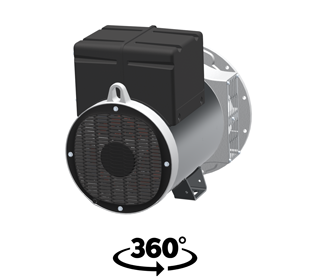

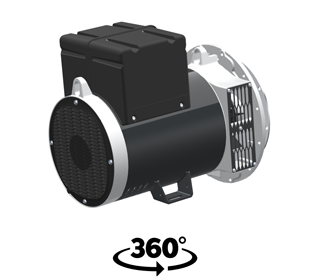

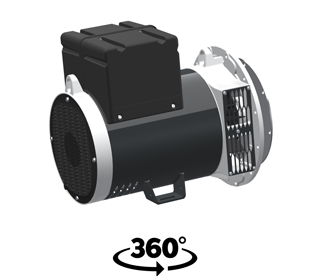

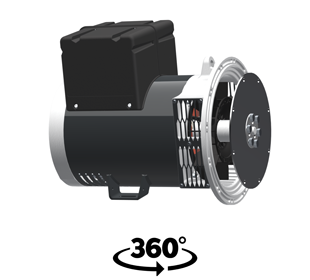

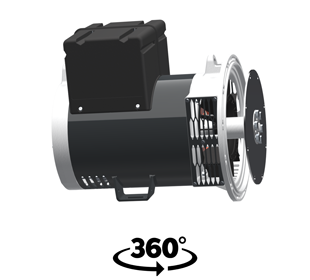

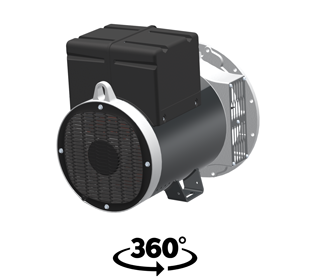

ECP28
4 poli
The ECP28 C-Type range has many product features designed into the alternator.
C-Type alternators make the most of energy conversion to produce the maximum power to size ratio.
C-Type is now one of the simplest alternators to assemble, integrate, configure and maintain with OEM equipment.
Our aim was to deliver maximum power from the smallest, lightest and strongest alternators and our designers have lavished the C-Type with much more flexibility.
The entire series is manufactured according to, and complies with, the most common specifications such as CEI 2-3, IEC 34-1, EN 60034-1, VDE 0530, BS 4999-5000, CAN/ CSA-C22.2 No14-95- No100-95.
Caratteristiche Generali
| ECP28C 4 poli | |
|---|---|
| Range potenza (kVA) | 4.5 - 36 |
| Riferimento codice avvolgimento | T0405S3 |
| Poli | 4 |
| Regolatore | DSR |
| Sovravelocità massima (RPM) | 2250 |
| Classe isolamento | IP23 |
| Altitudine (m) | 0-1000 |
| Modelli | Range potenza (kVA) | |
|---|---|---|
| monofase | trifase | |
| ECP28 1VS4 C | 4.5 - 5 | 7.5 - 9 |
| ECP28 2VS4 C | 6.5 - 7 | 10 - 12 |
| ECP28 1S4 C | 8 - 8.5 | 12.5 - 15 |
| ECP28 2S4 C | 10 - 10.5 | 15 - 18 |
| ECP28 3S4 C | 11.5 - 12 | 17.5 - 21 |
| ECP28 M4 C | 13.5 - 14 | 20 - 24 |
| ECP28 L4 C | 16.5 - 17 | 25 - 30 |
| ECP28 VL4 C | 20.5 - 21 | 30 - 36 |
Documentazione tecnica
DDS - Dynamic Data Support
Crea una scheda tecnica personalizzata secondo le tue particolari specifiche.
Disegni d'ingombro
