ECO46MV 4 pole generator
General Characteristics
| ECO46MV 4 A 6.3-6.6kV pitch 5/6 | |
|---|---|
| Power range (kVA) | 1620 - 3240 |
| Winding code | T67M5S6 |
| Pole | 4 |
| Regulator | DER-2/A |
| Overspeed (RPM) | 2250 |
| Protection class | IP23 |
| Altitude (m) | 0-1000 |
| Models | Power range (kVA) |
|---|---|
| 3 phase | |
| ECO46MV 1L4 A | 1620 - 1940 |
| ECO46MV 2L4 A | 1780 - 2140 |
| ECO46MV 3L4 A | 1940 - 2330 |
| ECO46MV 1VL4 A | 2270 - 2720 |
| ECO46MV 2VL4 A | 2480 - 2970 |
| ECO46MV 3VL4 A | 2700 - 3240 |
Technical documents
DDS - Dynamic Data Support
Create your own and personalized technical datasheet according to your specifications.

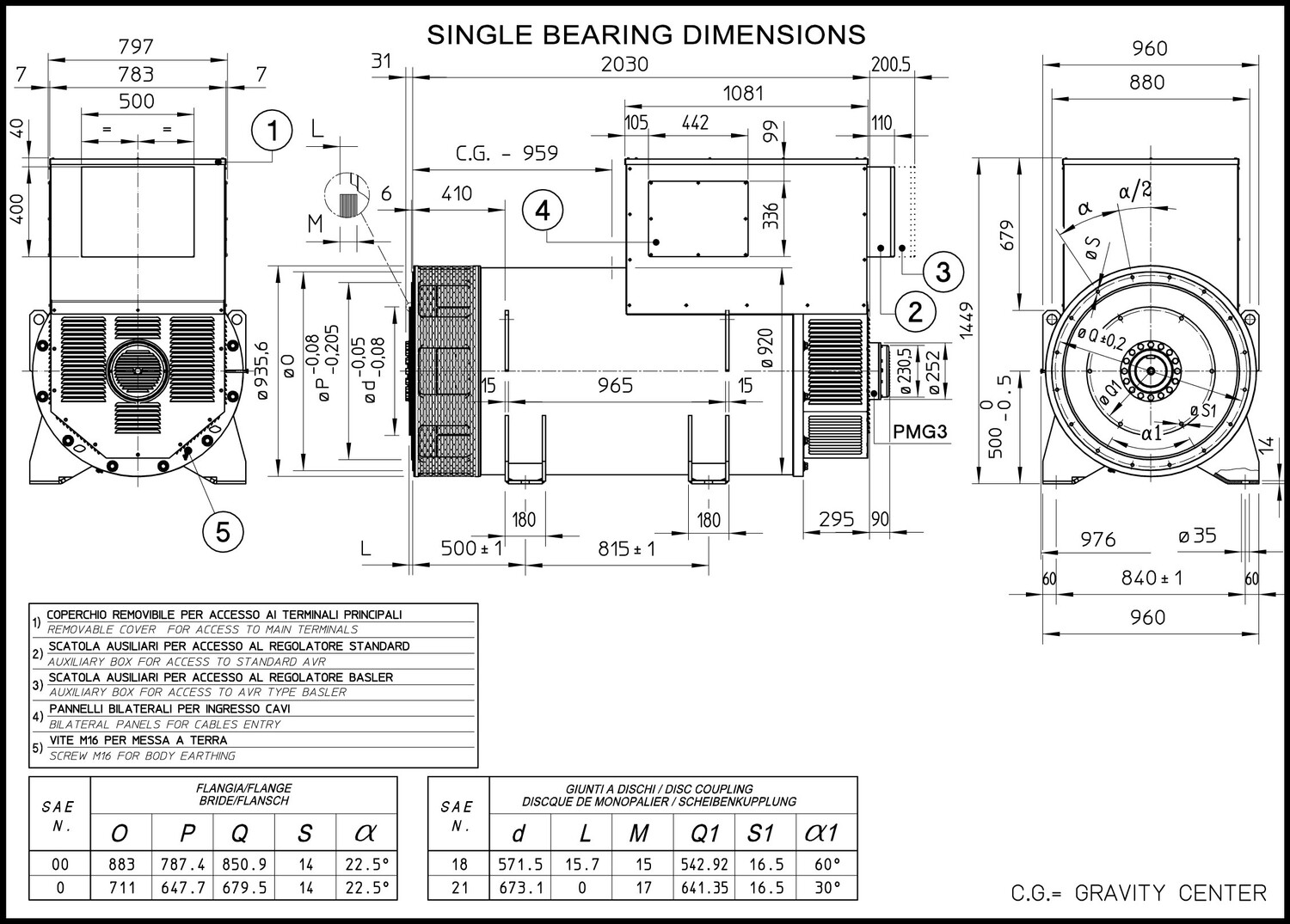

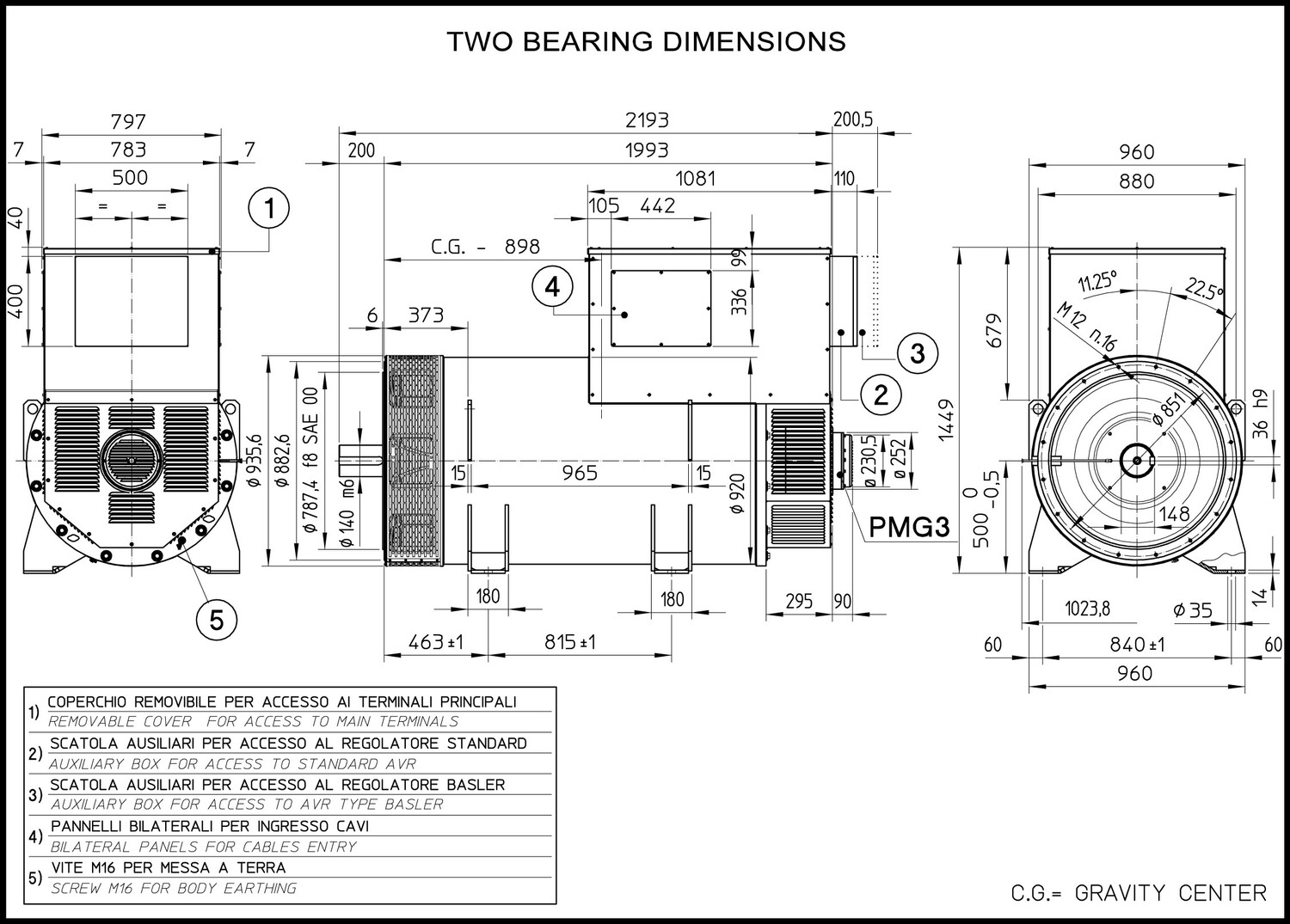

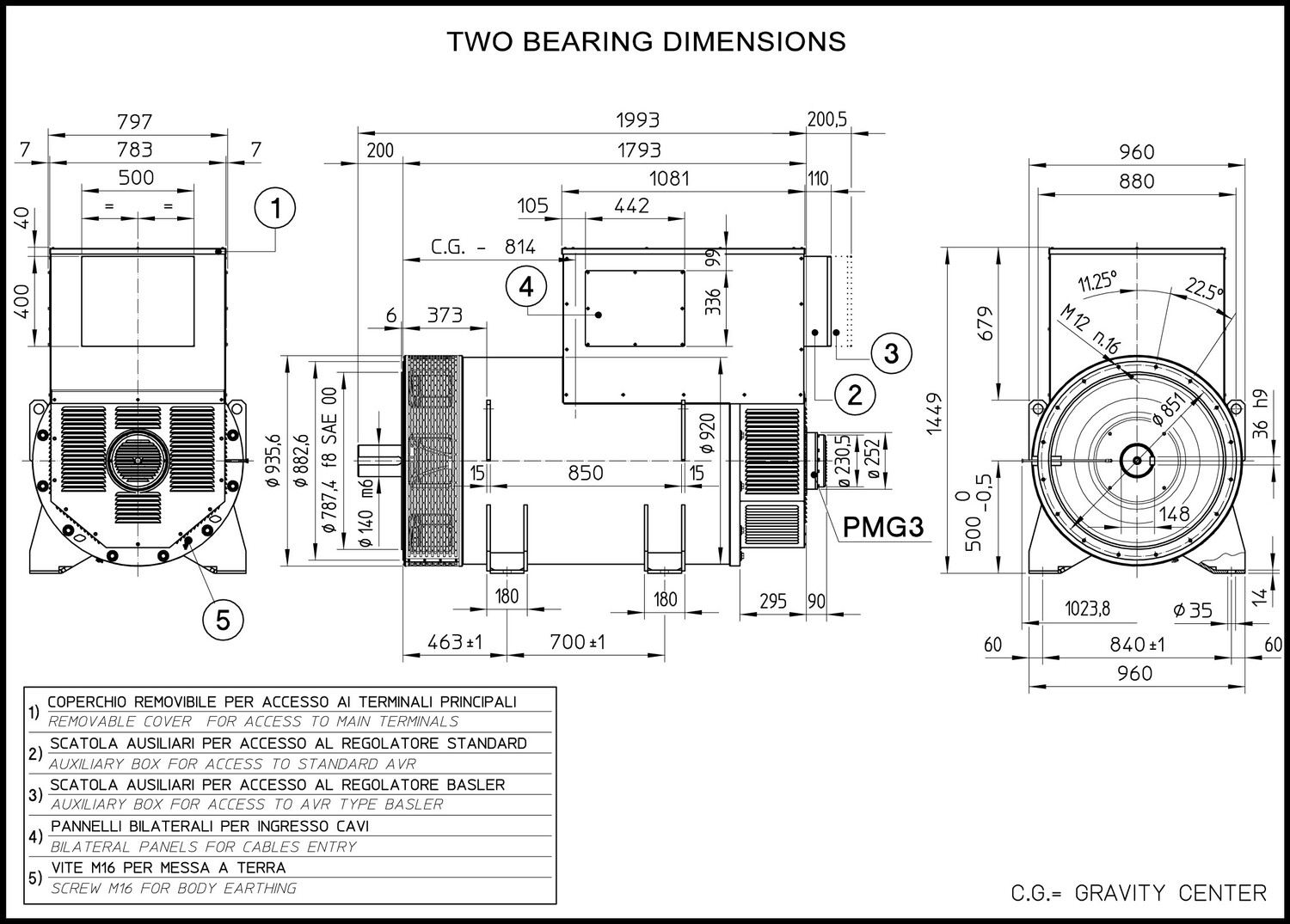

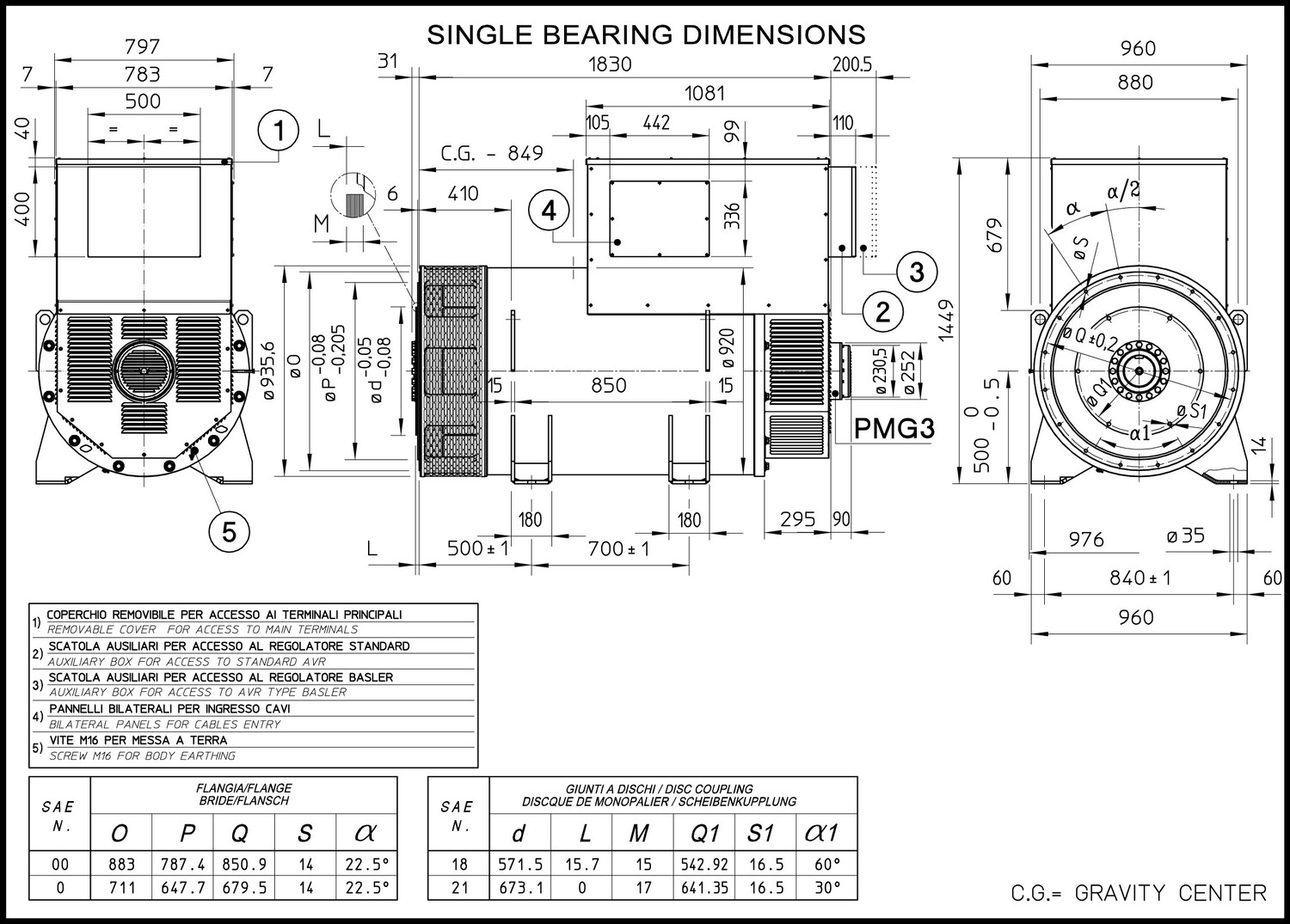

Overall Dimensions Drawings
ECO46MV 1L4 A
ECO46MV 2L4 A
ECO46MV 3L4 A
ECO46MV 1VL4 A
ECO46MV 2VL4 A
ECO46MV 3VL4 A
