ECO43HV 4 pole generator
General Characteristics
| ECO43HV 4 A 11.5-13.8kV pitch 5/6 | |
|---|---|
| Power range (kVA) | 900 - 1560 |
| Winding code | T61H6S6 |
| Pole | 4 |
| Regulator | DER-2/A |
| Overspeed (RPM) | 2250 |
| Protection class | IP23 |
| Altitude (m) | 0-1000 |
| Models | Power range (kVA) |
|---|---|
| 3 phase | |
| ECO43HV 1VL4 A | 900 - 1080 |
| ECO43HV 2VL4 A | 1000 - 1200 |
| ECO43HV 1XL4 A | 1100 - 1320 |
| ECO43HV 2XL4 A | 1300 - 1560 |
Technical documents
DDS - Dynamic Data Support
Create your own and personalized technical datasheet according to your specifications.

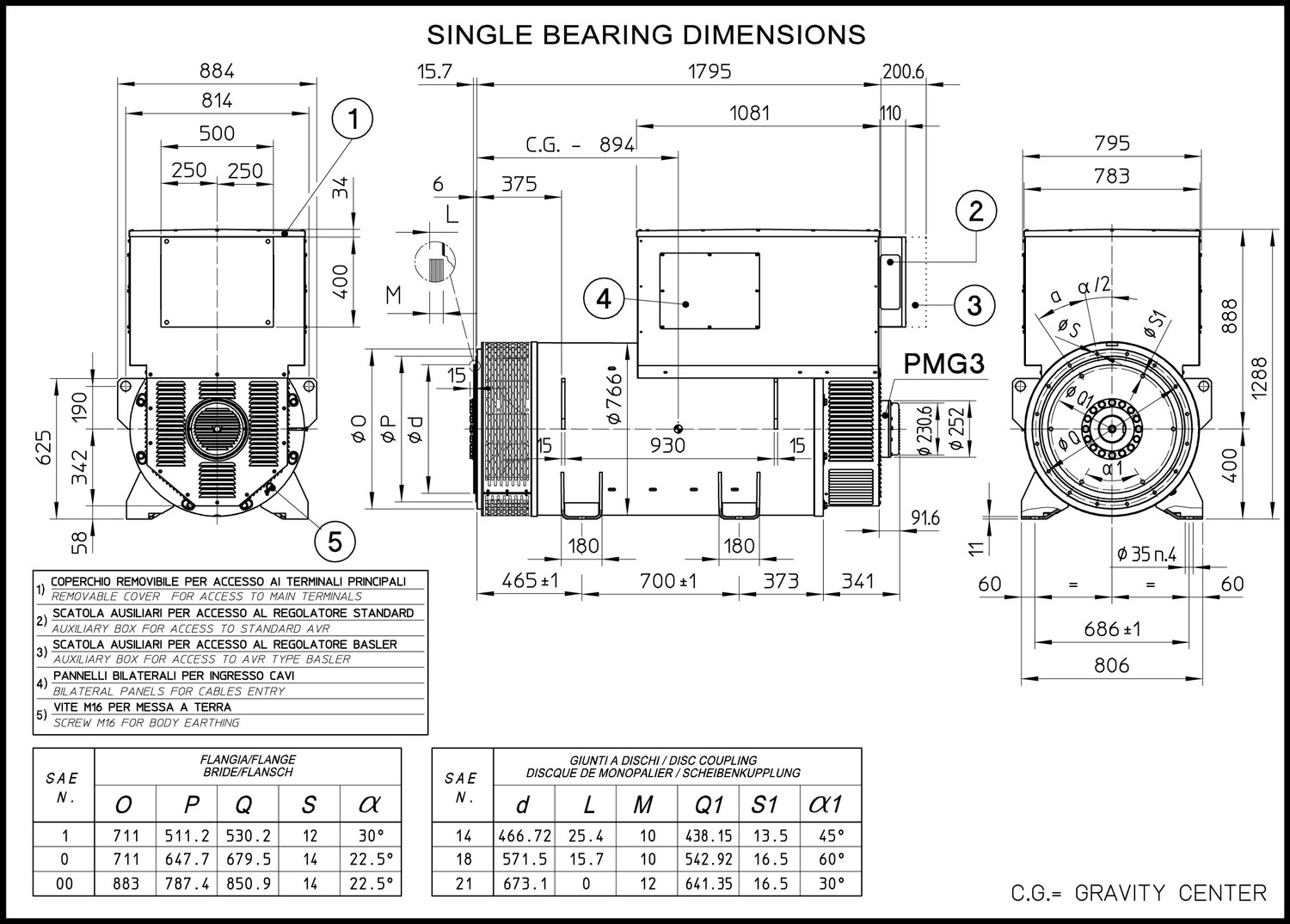

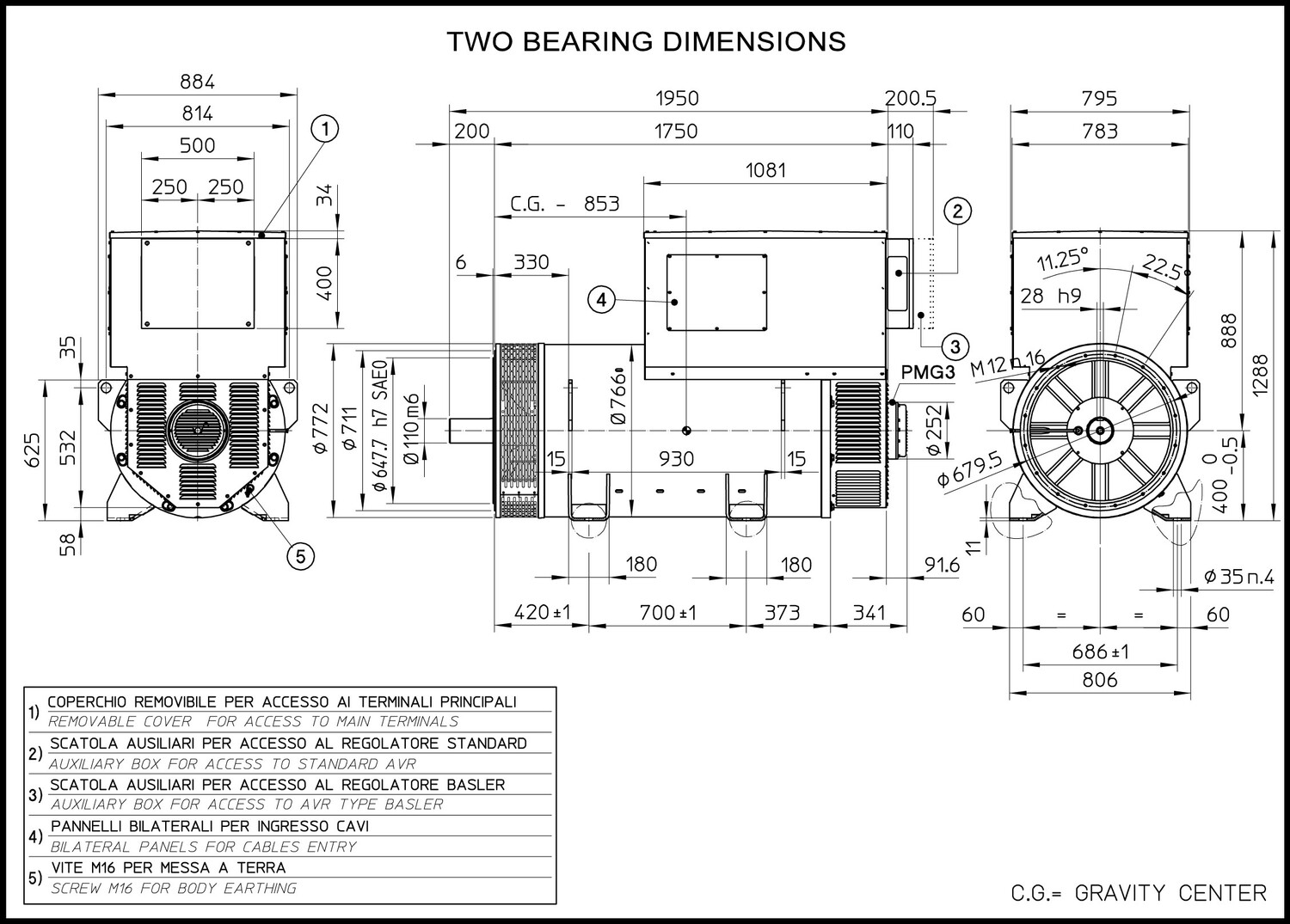

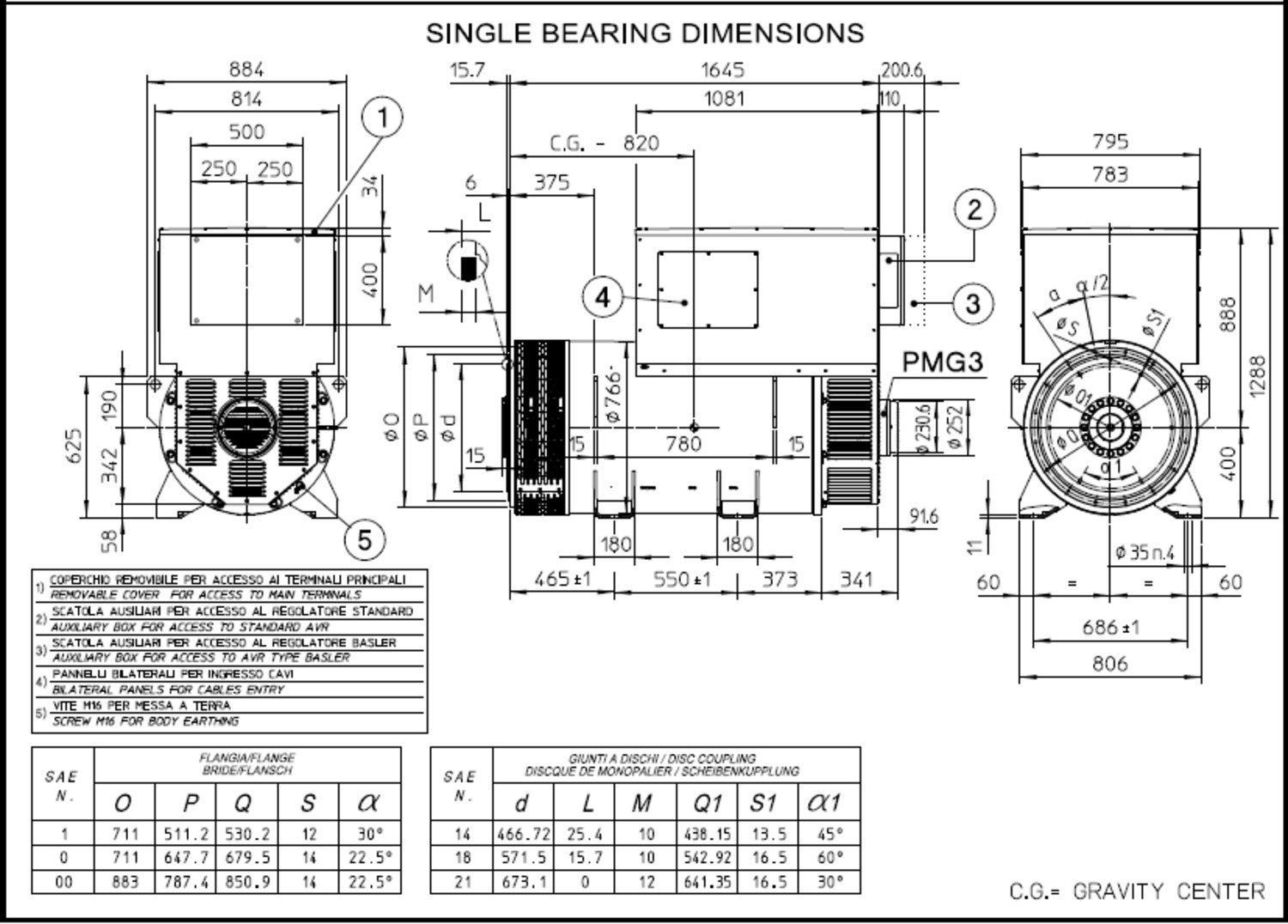

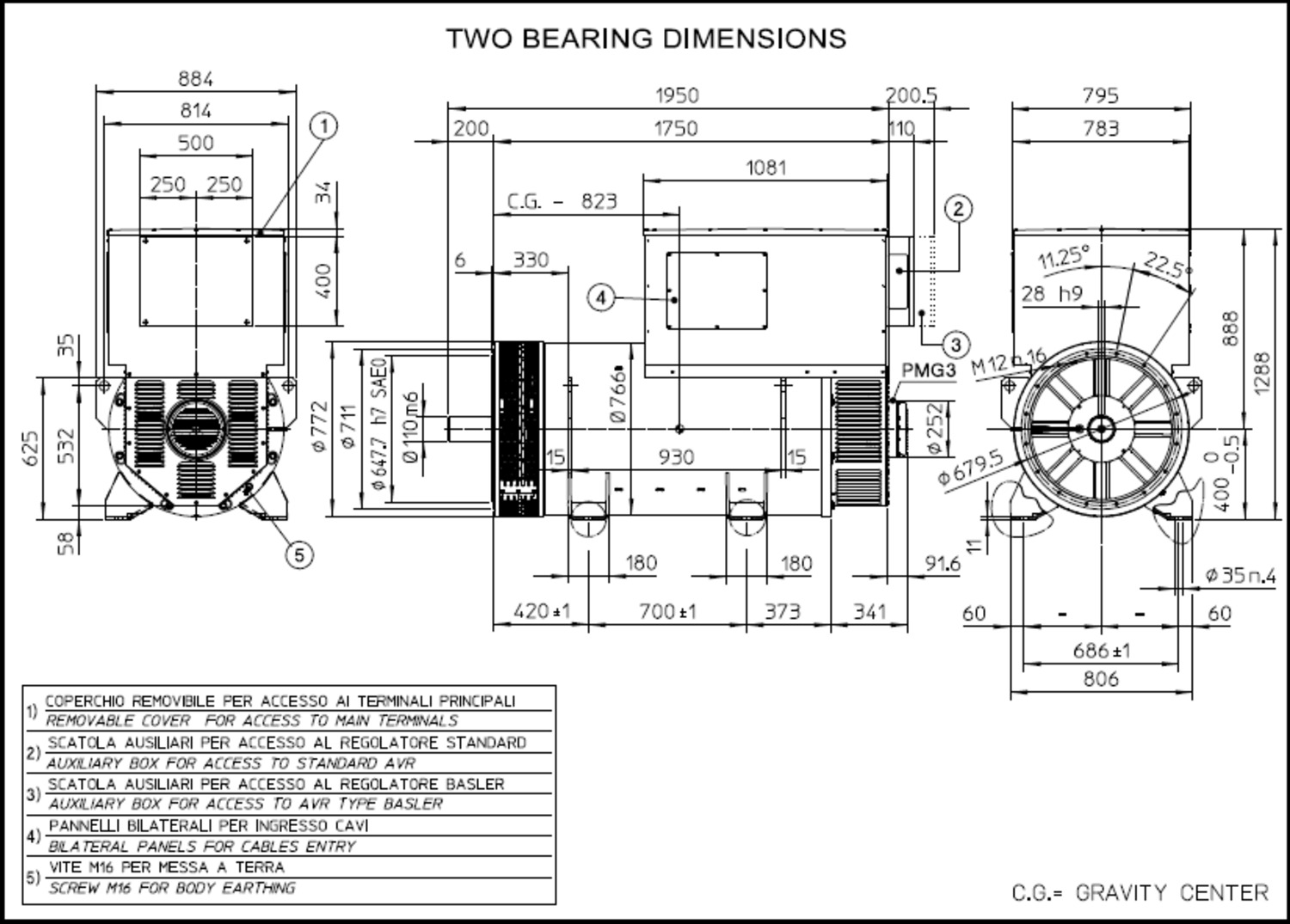

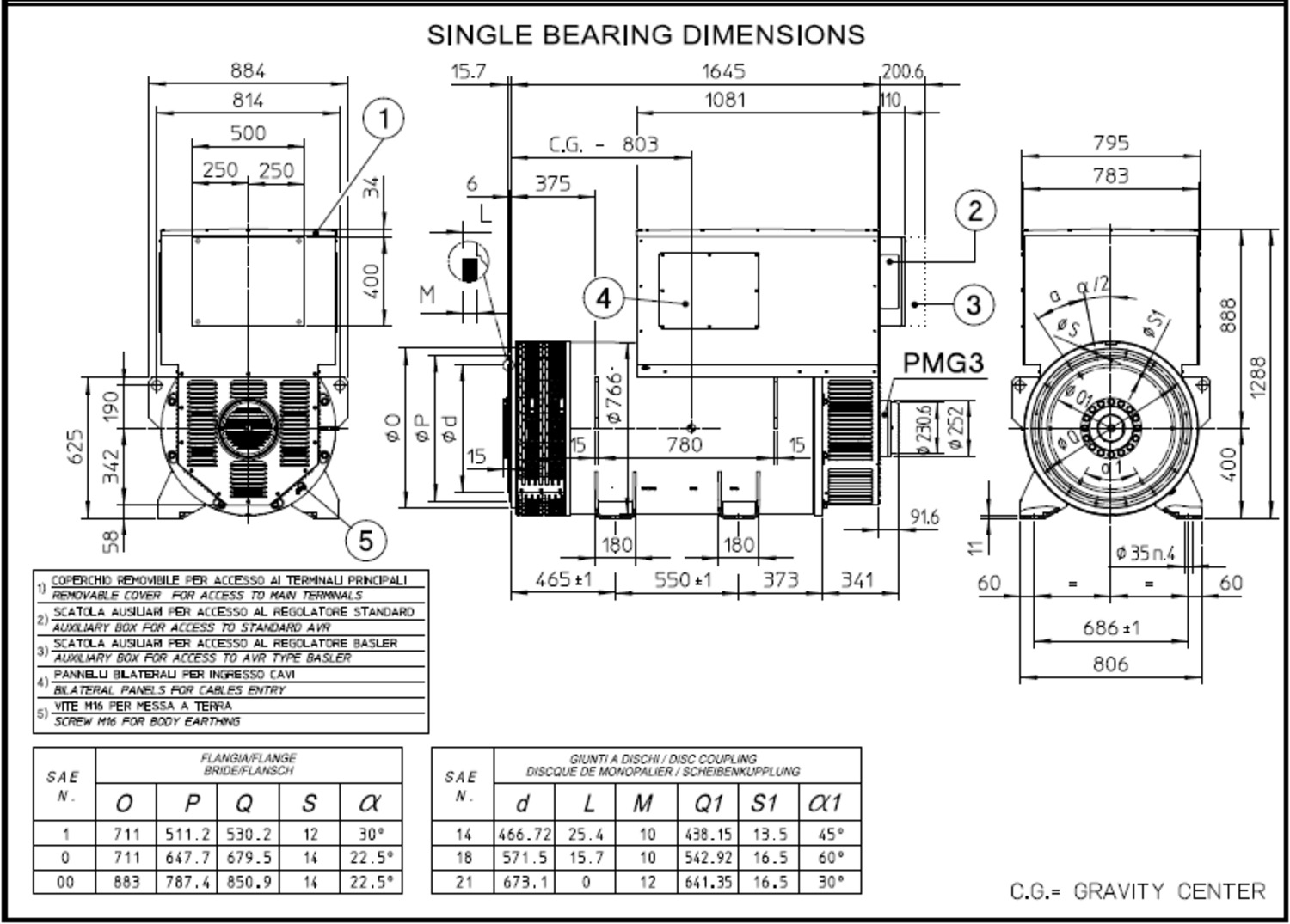

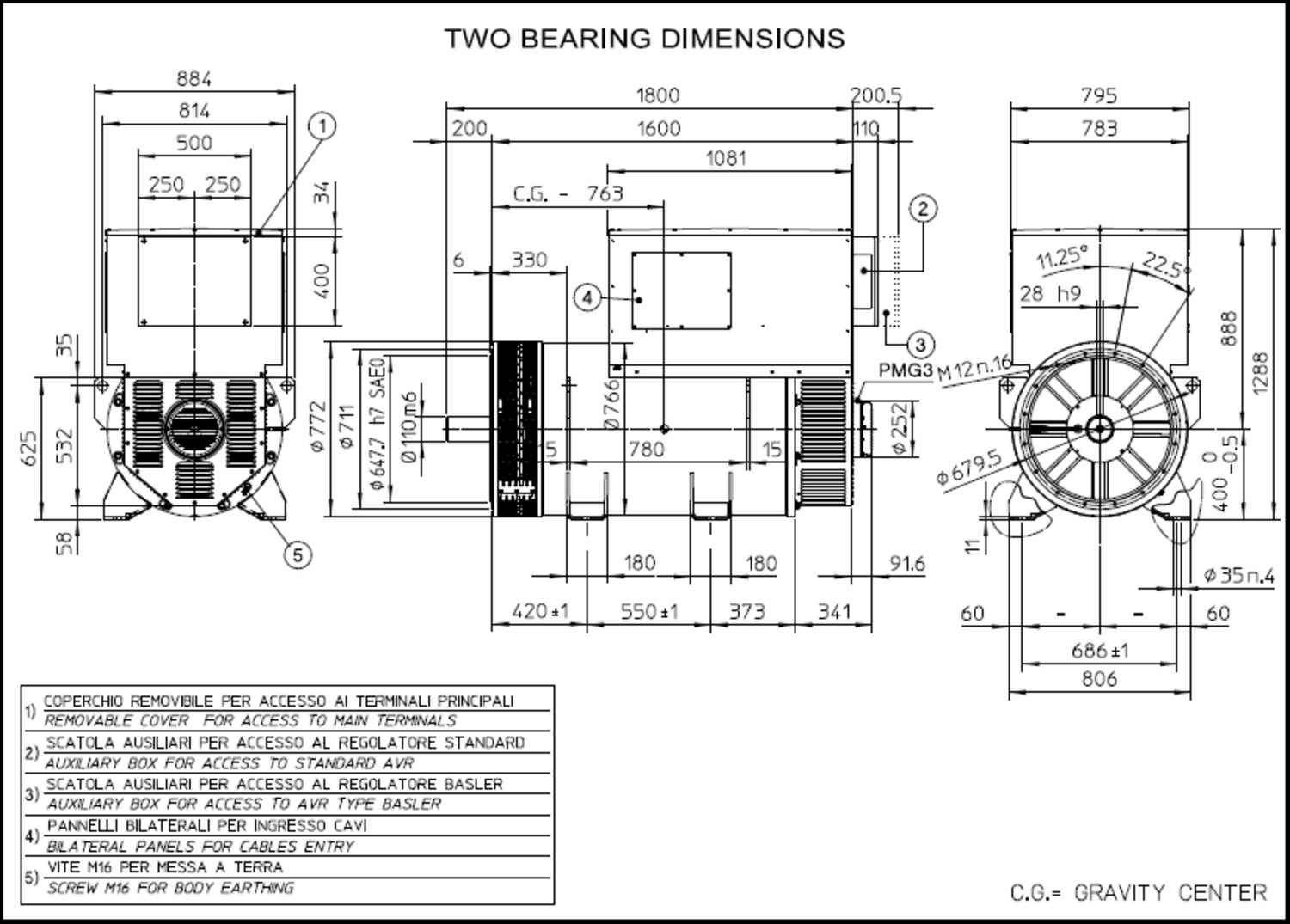

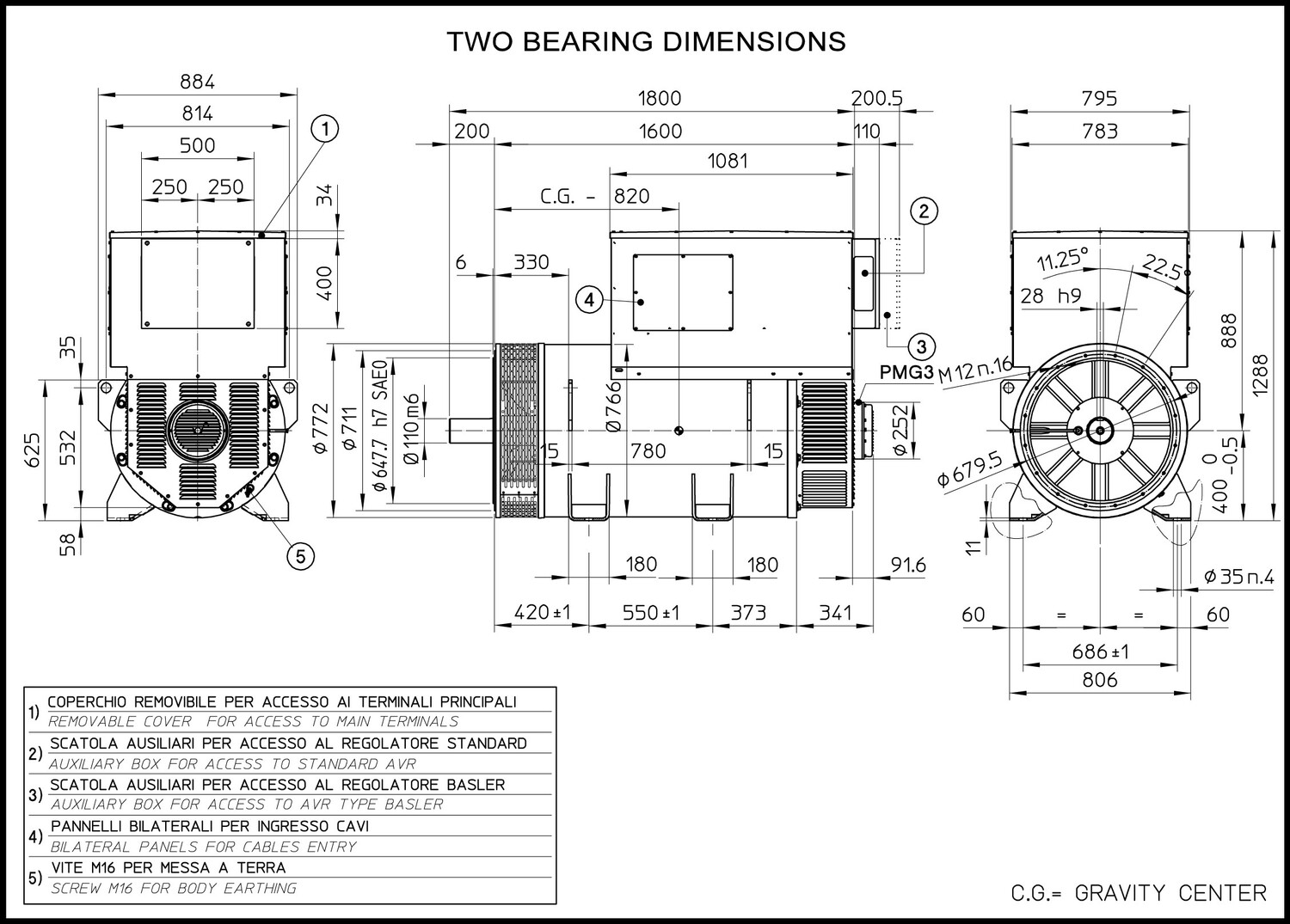

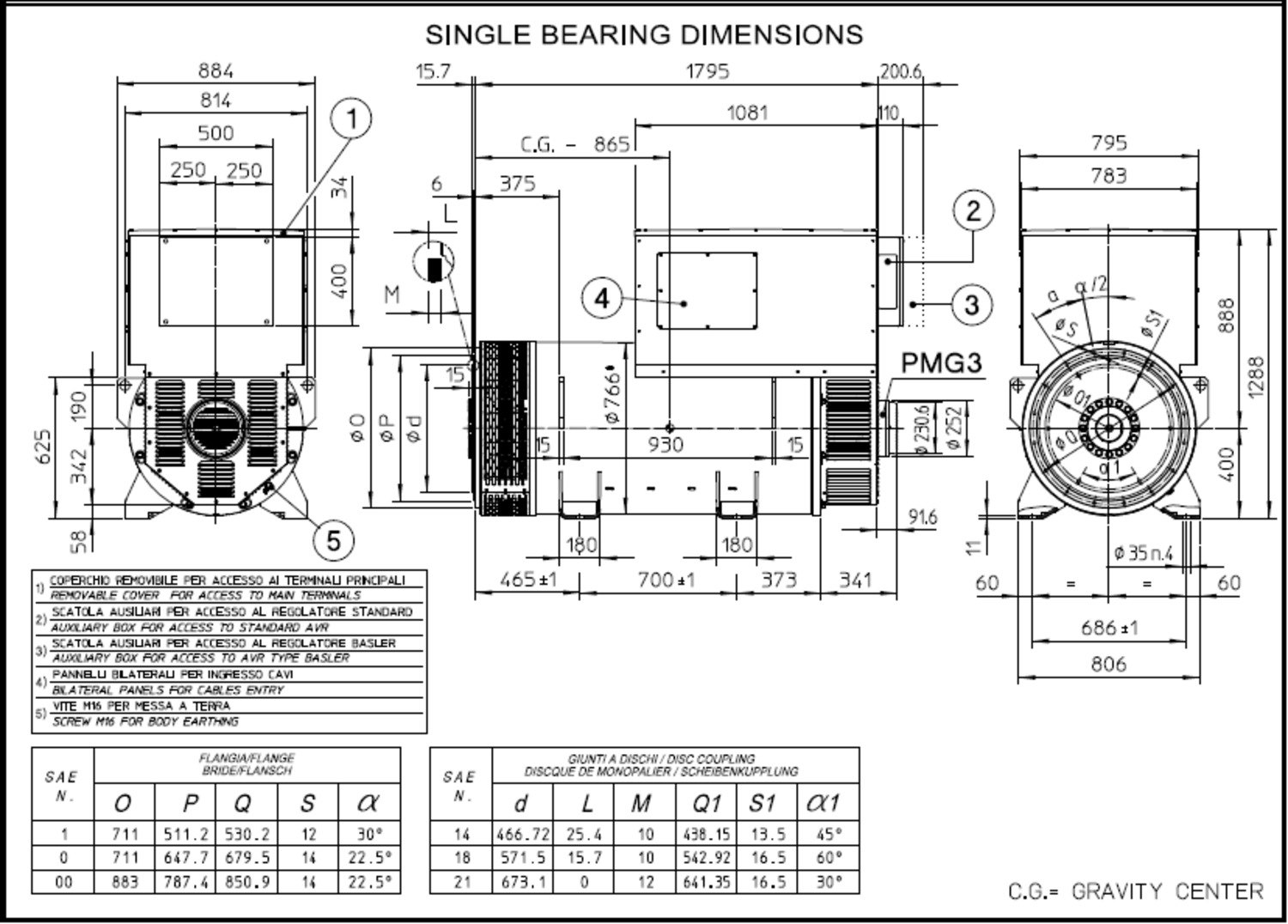

Overall Dimensions Drawings
ECO43HV 1VL4 A
ECO43HV 2VL4 A
ECO43HV 1XL4 A
ECO43HV 2XL4 A
