NPE32
4 pole generator
1 phase dedicated
The NPE32 range has many product features designed into the alternator.
Self-regulation is obtained through a digital electronic regulator that is fed by an auxiliary winding.
We guarantee an almost constant supply from the generator – under any possible operating condition.
A rotating inductor is fitted with a damper cage.
The windings have a 2/3 pitch in order to reduce the harmonic content of voltage.
The entire series is manufactured according to, and complies with, the most common specifications such as CEI 2-3, IEC 34-1, EN 60034-1, VDE 0530, BS 4999-5000, CAN/ CSA-C22.2 No14-95- No100-95.
General Characteristics
| NPE32 4 pole (1phase Dedicated) | |
|---|---|
| Power range (kVA) | 6.4 - 26.5 |
| Winding code | T4246B3 |
| Pole | 4 |
| Regulator | DSR |
| Overspeed (RPM) | 2250 |
| Protection class | IP21 |
| Altitude (m) | 0-1000 |
| Models | Power range (kVA) |
|---|---|
| 1 phase | |
| NPE32-A/4 | 6.4 - 8.4 |
| NPE32-B/4 | 8.7 - 10.5 |
| NPE32-C/4 | 10.8 - 13 |
| NPE32-D/4 | 13.8 - 17 |
| NPE32-E/4 | 18.5 - 22 |
| NPE32-F/4 | 22.5 - 26.5 |
Technical documents
DDS - Dynamic Data Support
Create your own and personalized technical datasheet according to your specifications.

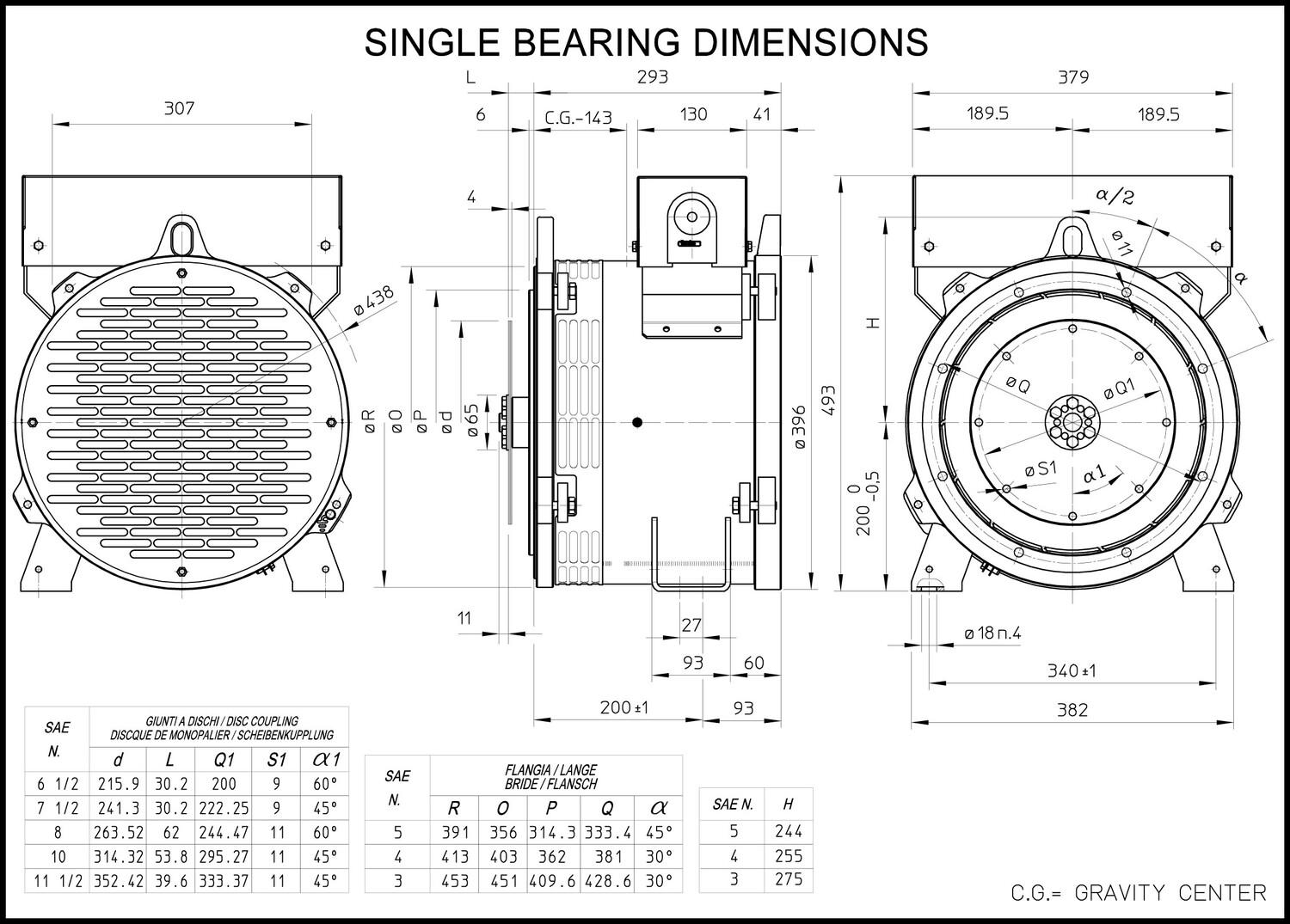

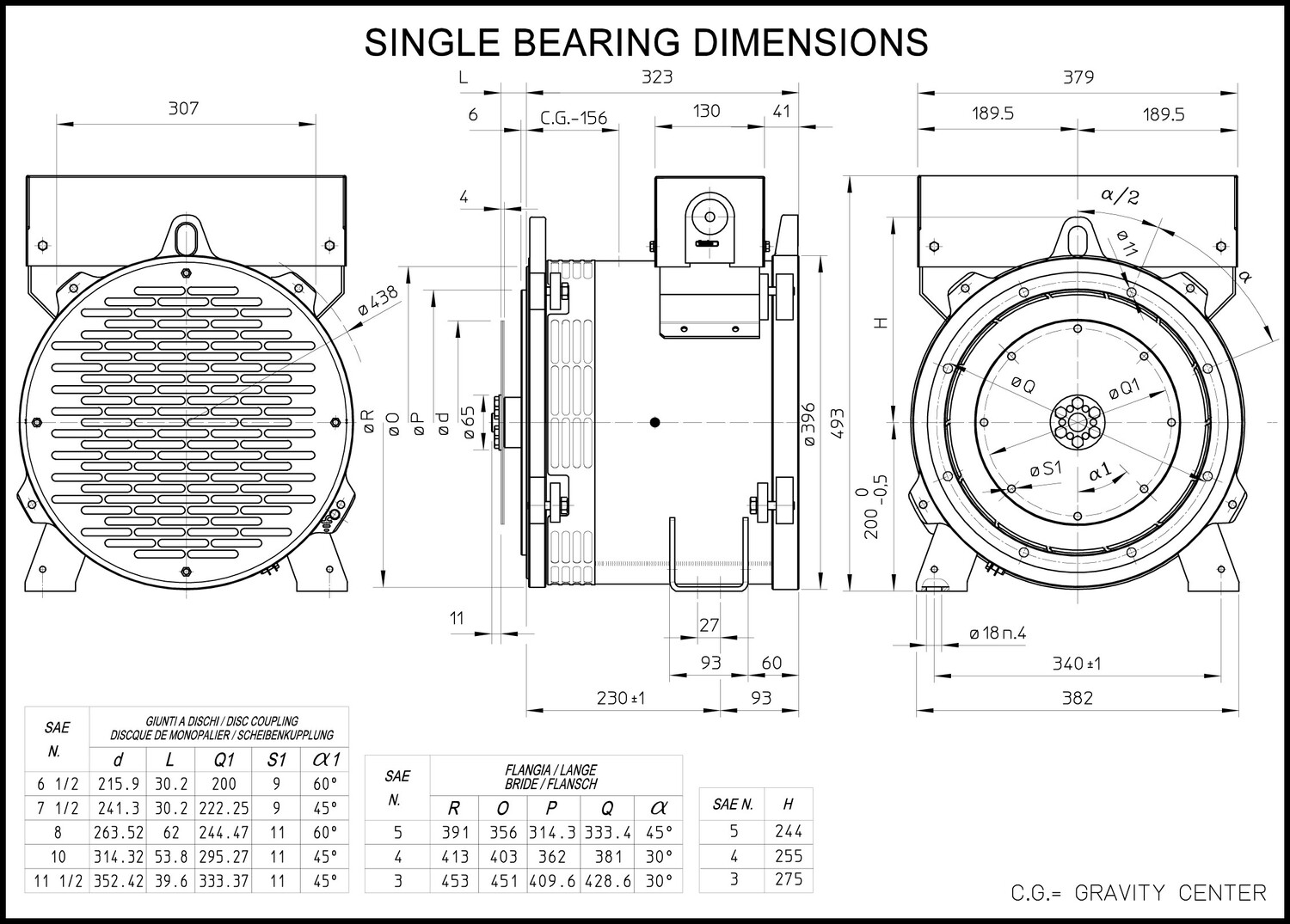

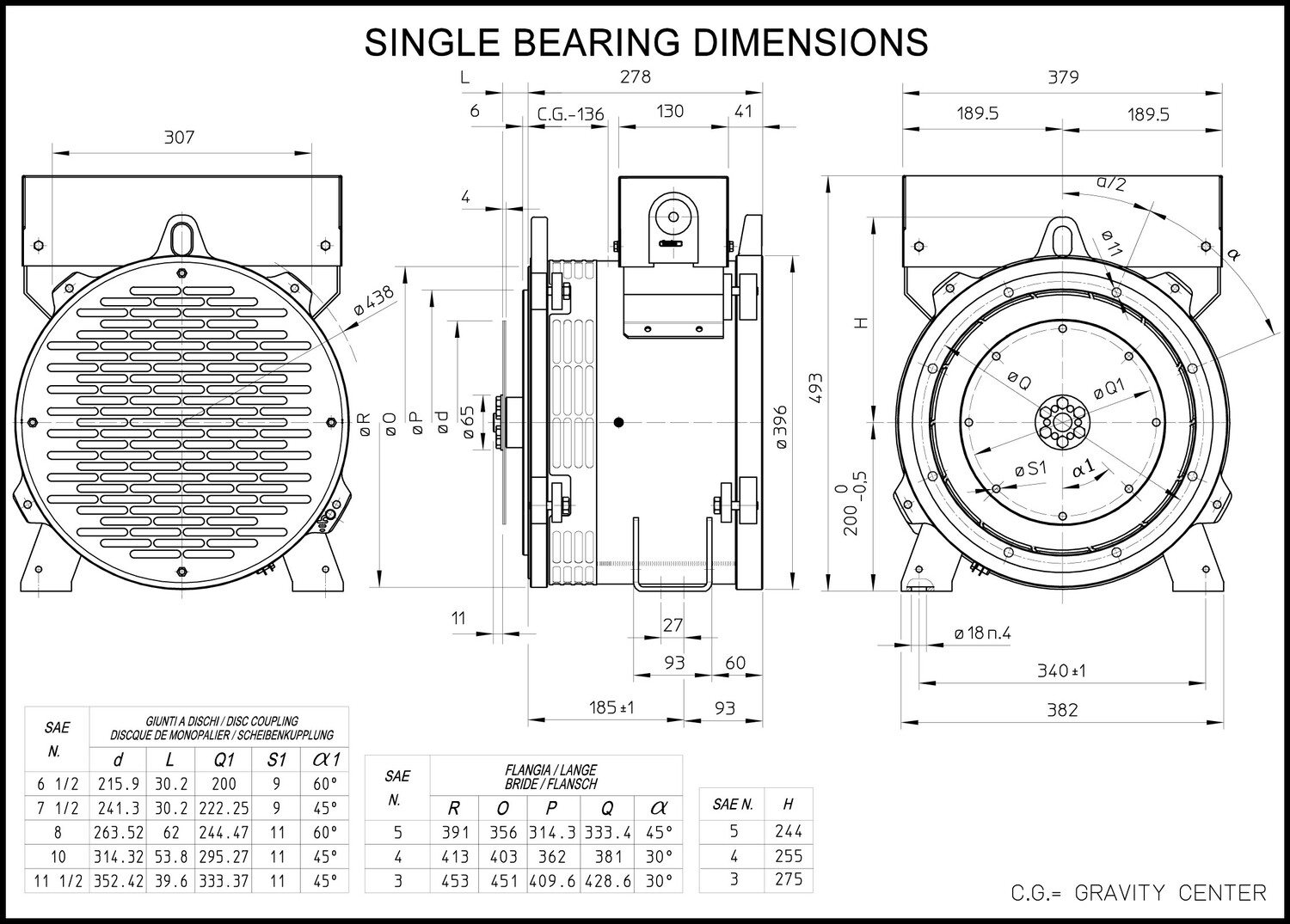

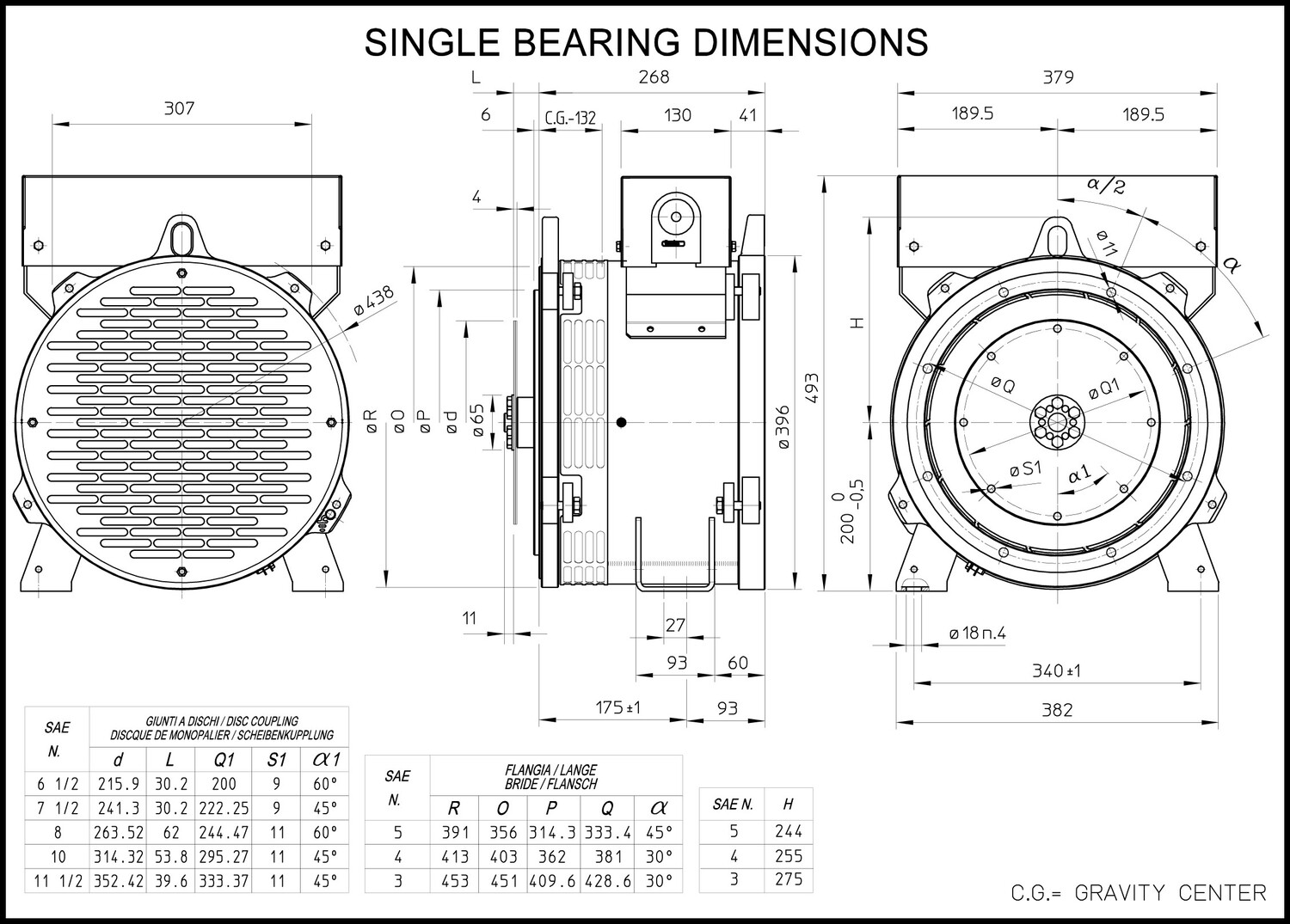

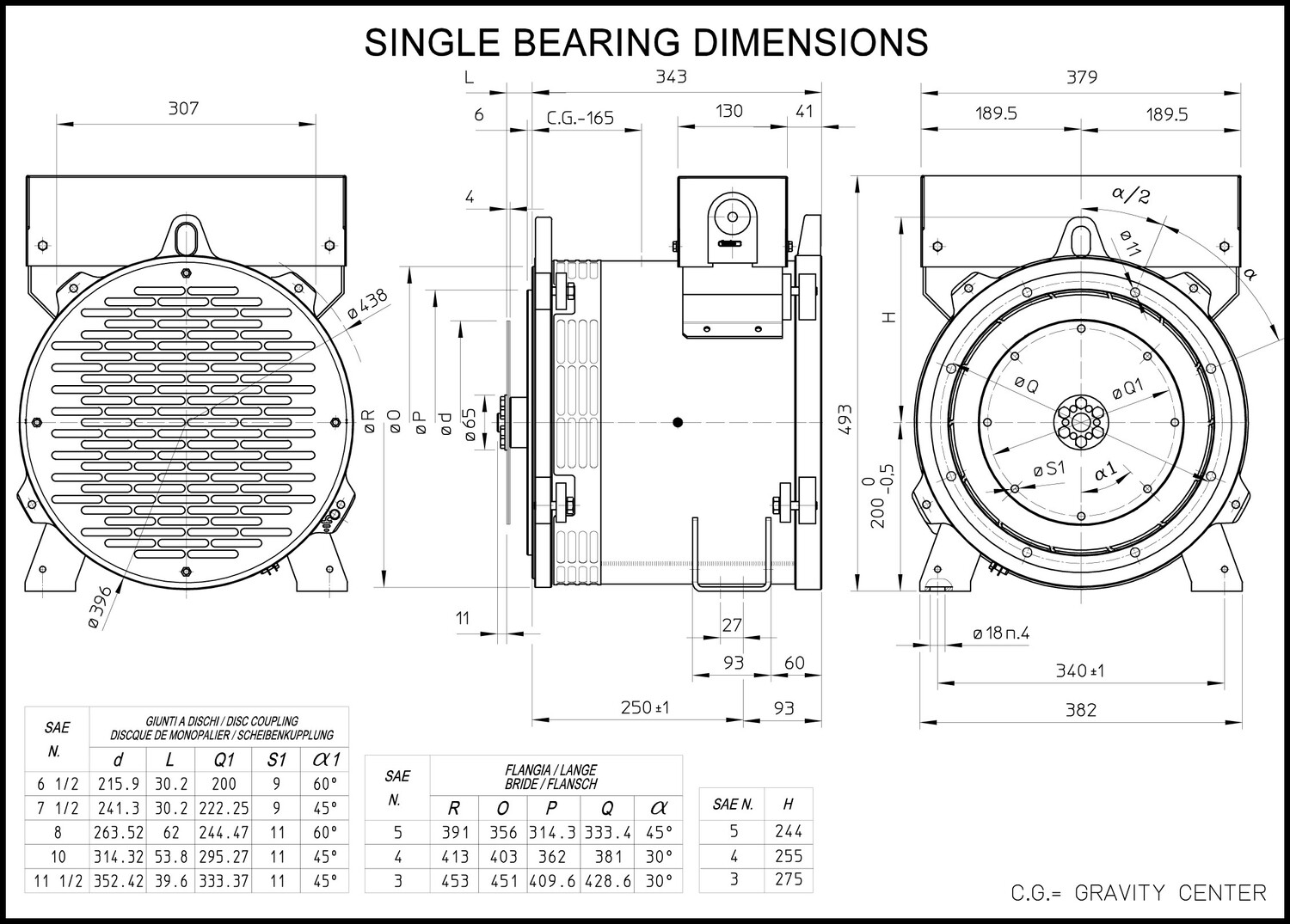

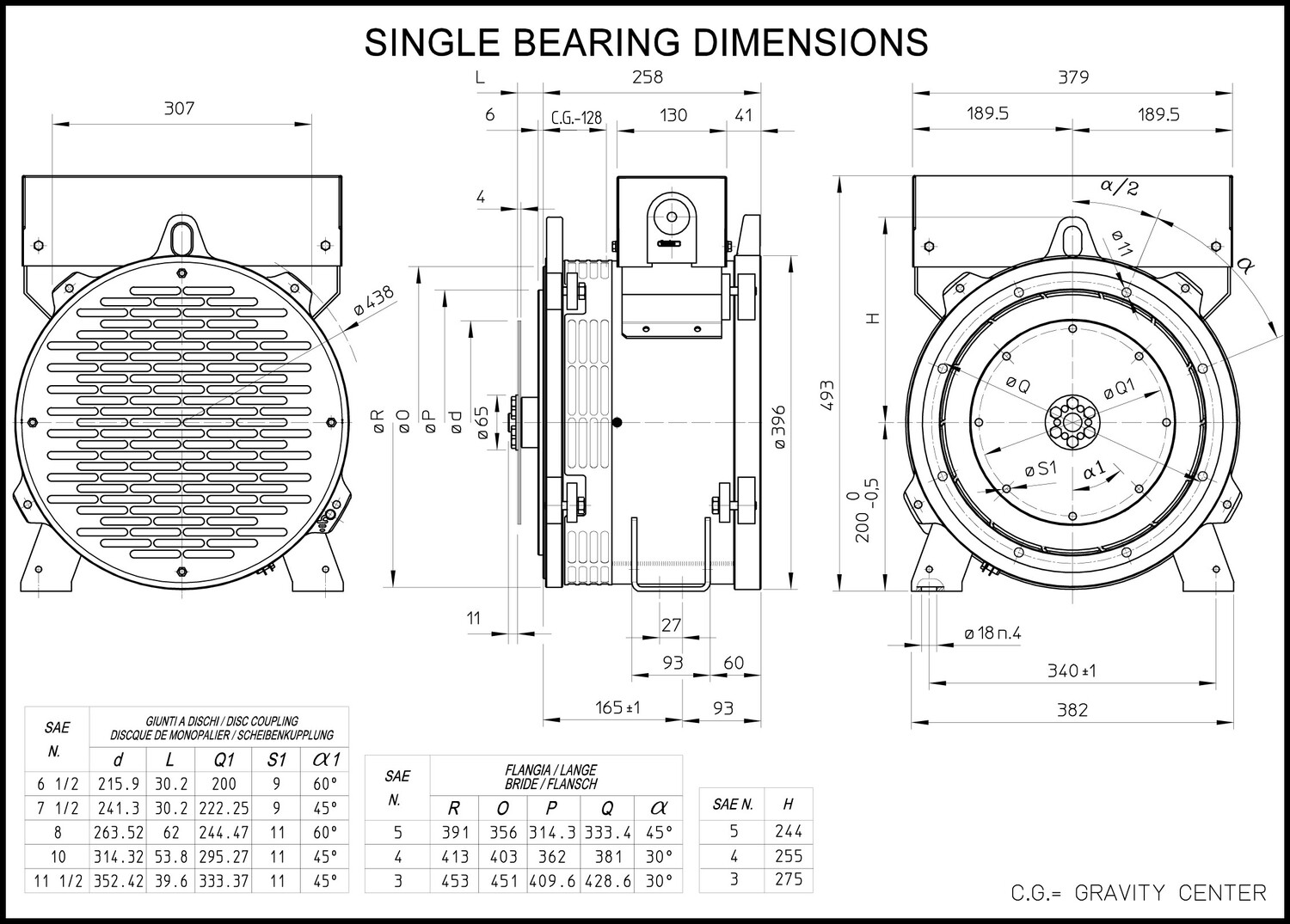

Overall Dimensions Drawings
NPE32-A/4
NPE32-B/4
NPE32-C/4
NPE32-D/4
NPE32-E/4
NPE32-F/4
