Industrial / ECP4C 4 pole

ECP4


4 pole generator

The ECP4 C-Type range has many product features designed into the alternator.
C-Type alternators make the most of energy conversion to produce the maximum power to size ratio.
C-Type is now one of the simplest alternators to assemble, integrate, configure and maintain with OEM equipment.
Our aim was to deliver maximum power from the smallest, lightest and strongest alternators and our designers have lavished the C-Type with much more flexibility.
The entire series is manufactured according to, and complies with, the most common specifications such as CEI 2-3, IEC 34-1, EN 60034-1, VDE 0530, BS 4999-5000, CAN/ CSA-C22.2 No14-95- No100-95.

Find out more   Accessories

General Characteristics

ECP4C 4 pole
Power range (kVA)6.5 - 24
Winding codeT0405S3
Pole4
RegulatorDSR
Overspeed (RPM)2250
Protection classIP23
Altitude (m)0-1000
ModelsPower range (kVA)
3 phase
ECP4 1M4 C6.5 - 7.8
ECP4 2M4 C8 - 9.6
ECP4 3M4 C10 - 12
ECP4 4M4 C12.5 - 15
ECP4 5M4 C15 - 18
ECP4 1L4 C18 - 22
ECP4 2L4 C20 - 24


Technical documents

DDS - Dynamic Data Support

Create your own and personalized technical datasheet according to your specifications.

Get it here

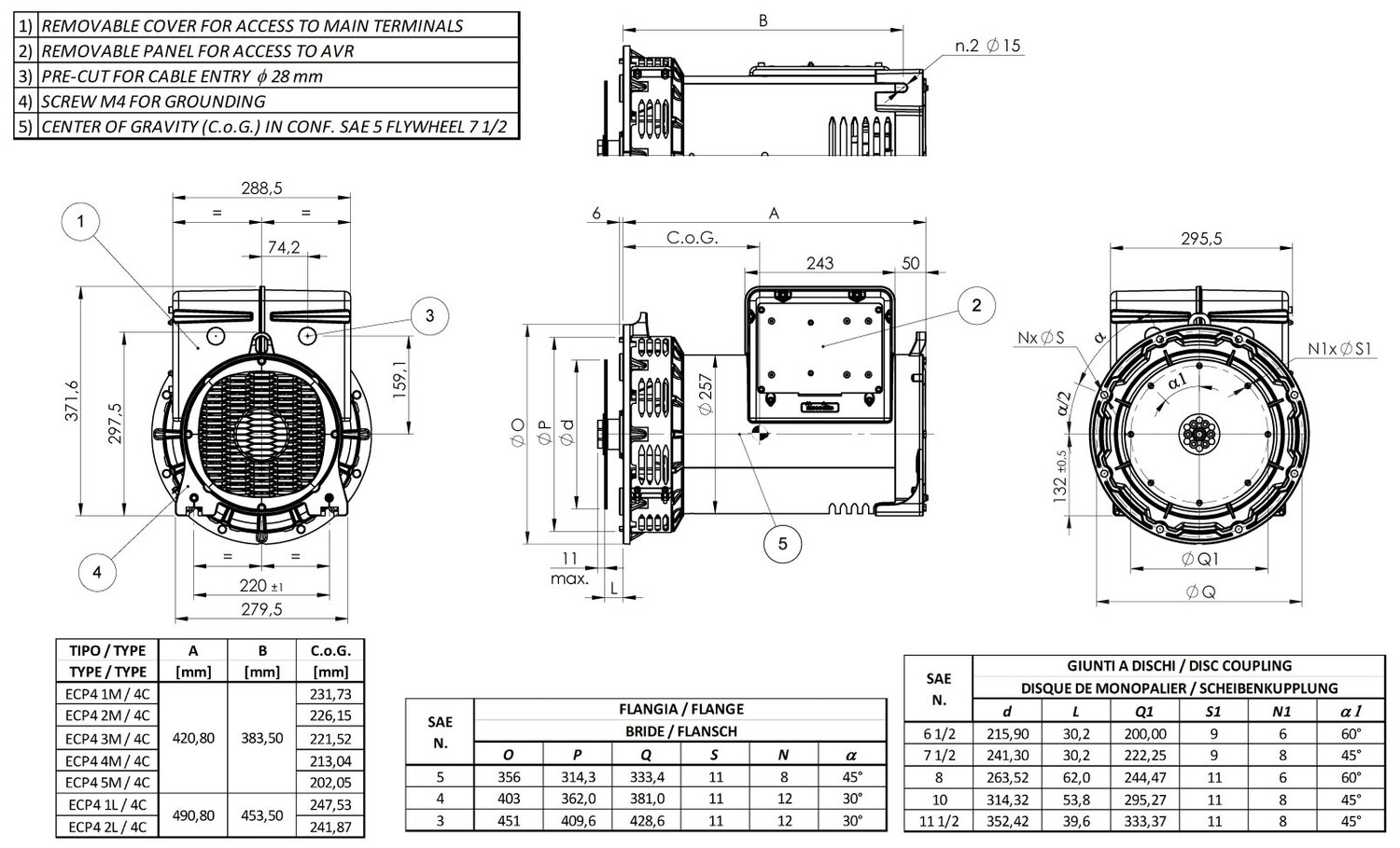

Overall Dimensions Drawings
