ECP34 A
2 pole generator
The ECP34 range has many product features designed into the alternator.
Self-regulation is obtained through a digital electronic regulator that is fed by an auxiliary winding.
We guarantee an almost constant supply from the generator – under any possible operating condition.
A rotating inductor is fitted with a damper cage.
The windings have a 2/3 pitch in order to reduce the harmonic content of voltage.
The entire series is manufactured according to, and complies with, the most common specifications such as CEI 2-3, IEC 34-1, EN 60034-1, VDE 0530, BS 4999-5000, CAN/ CSA-C22.2 No14-95- No100-95.
General Characteristics
| ECP34A 2 pole | |
|---|---|
| Power range (kVA) | 67 - 173 |
| Winding code | T0405S3 |
| Pole | 2 |
| Regulator | DSR |
| Overspeed (RPM) | 4300 |
| Protection class | IP23 |
| Altitude (m) | 0-1000 |
| Models | Power range (kVA) | |
|---|---|---|
| 1 phase | 3 phase | |
| ECP34 1S2 A | 67 - 68 | 100 - 100 |
| ECP34 2S2 A | 83 - 84 | 124 - 125 |
| ECP34 1L2 A | 104 - 105 | 155 - 156 |
| ECP34 2L2 A | 113 - 114 | 170 - 173 |
Technical documents
DDS - Dynamic Data Support
Create your own and personalized technical datasheet according to your specifications.

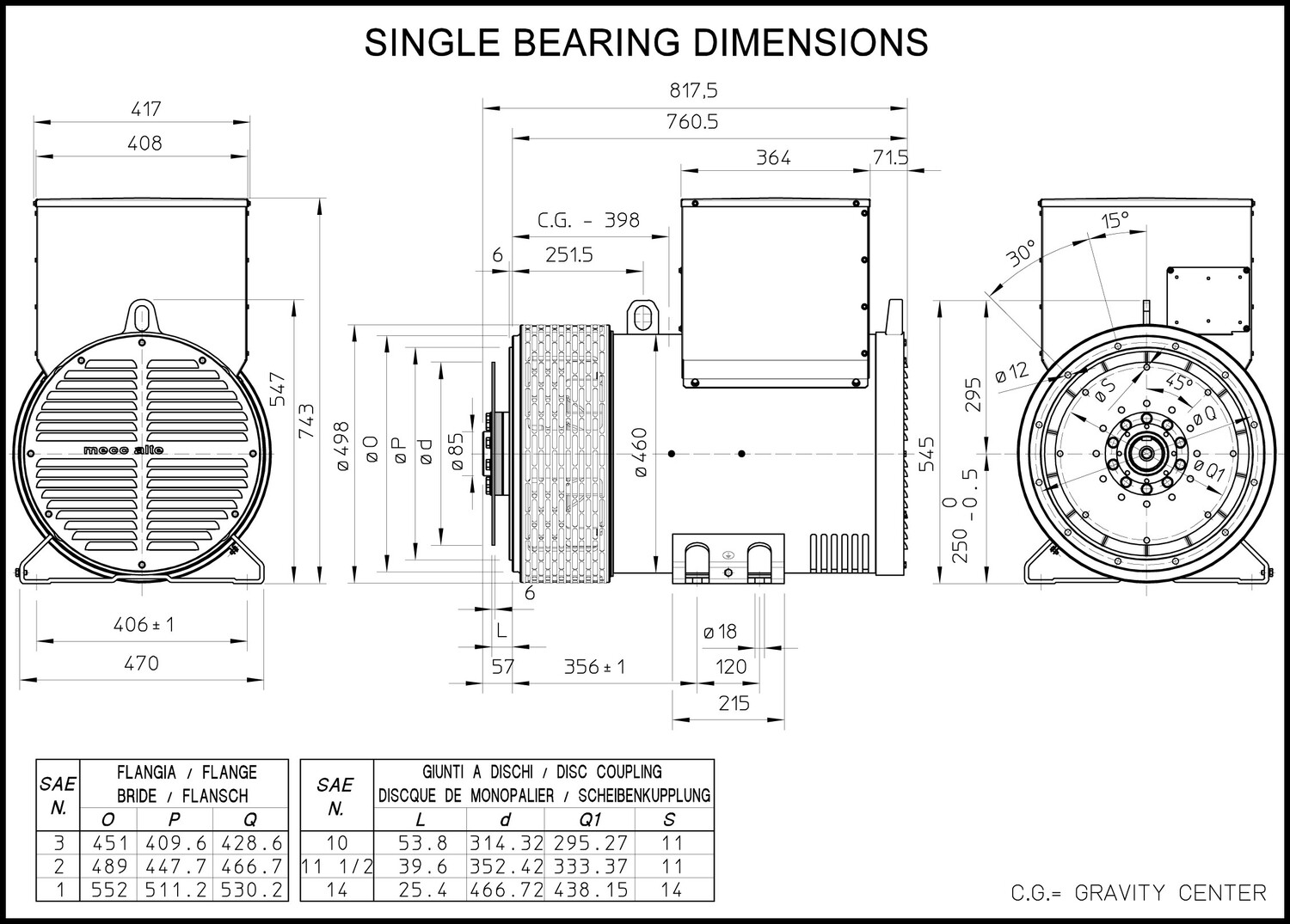

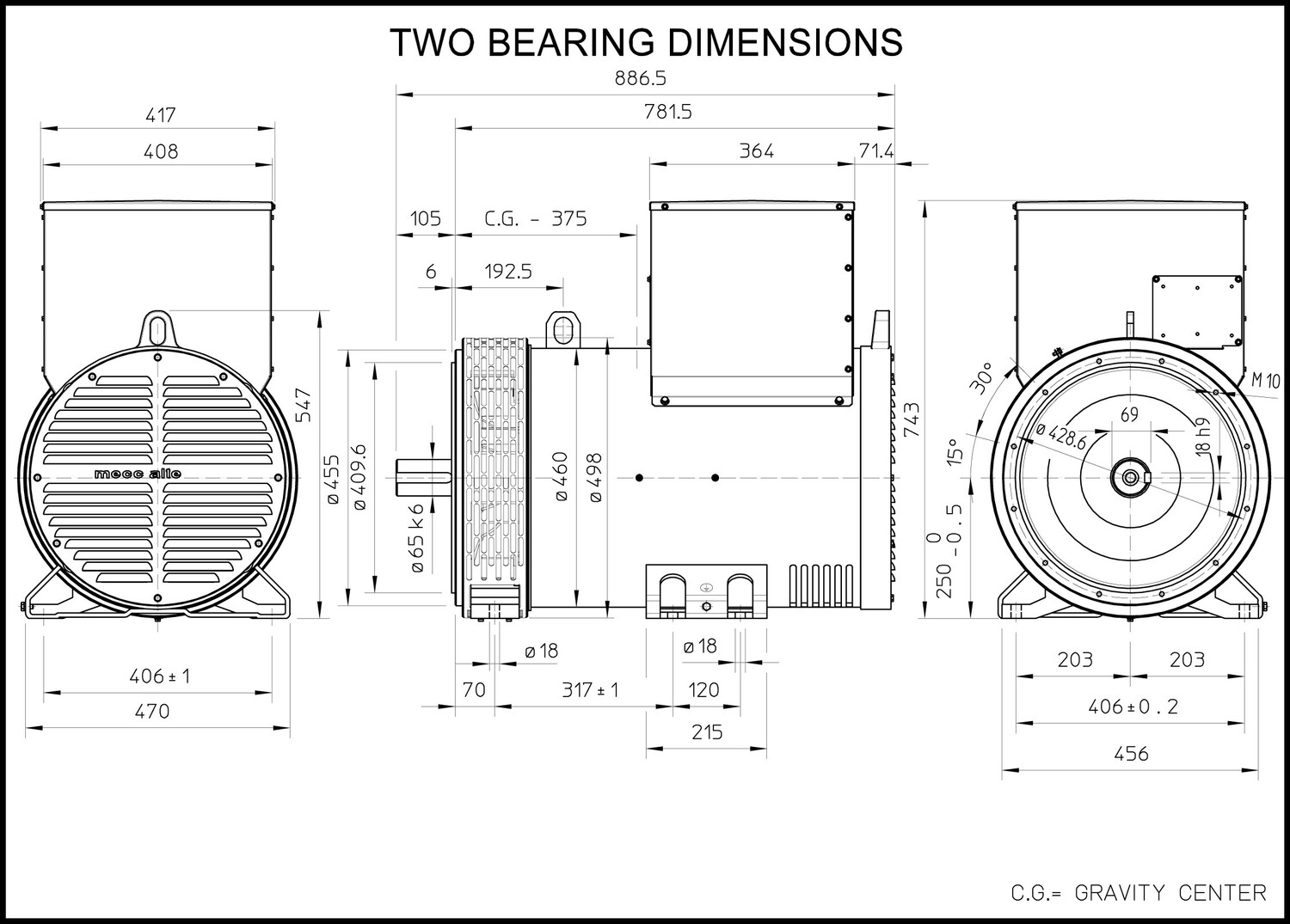

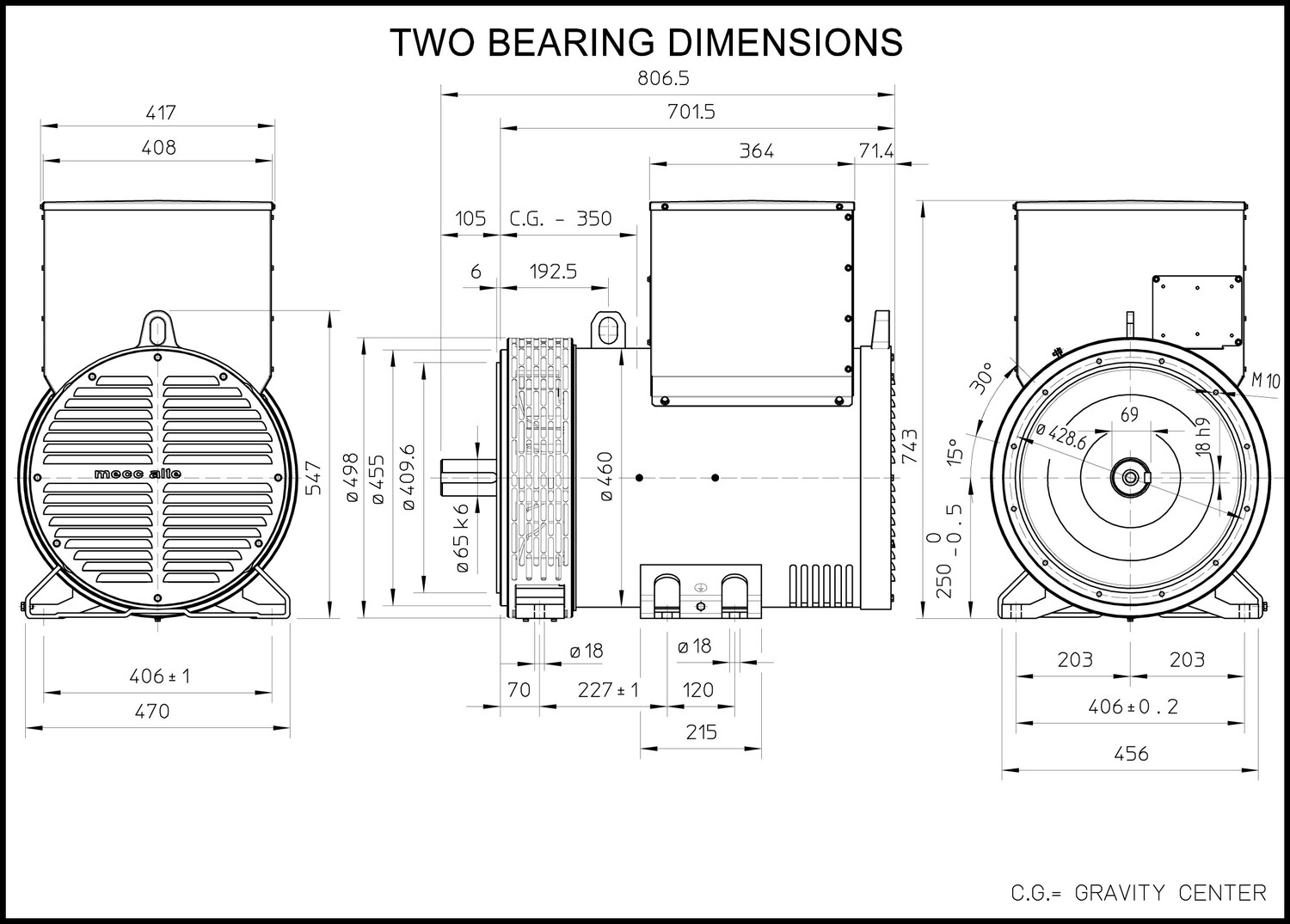

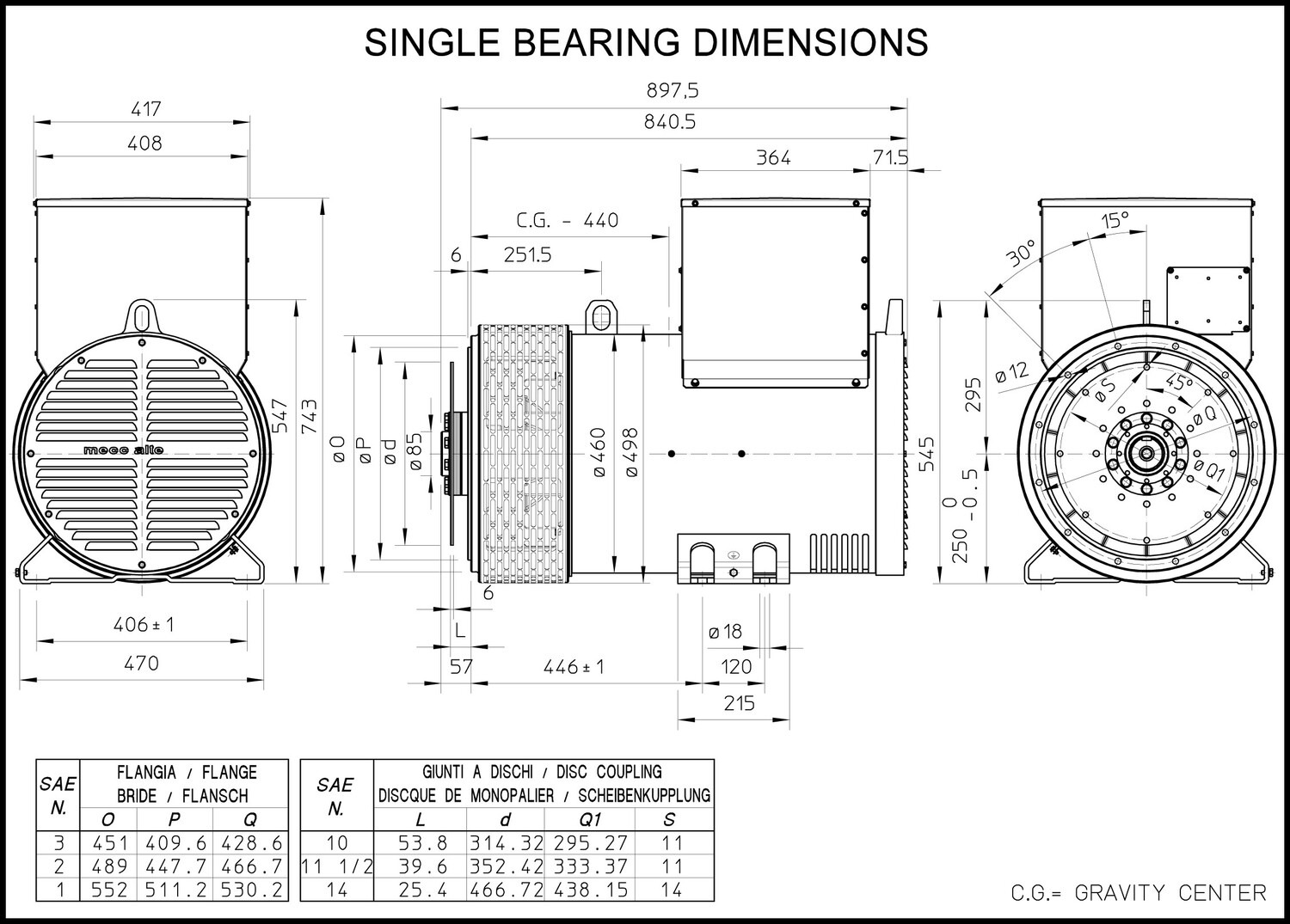

Overall Dimensions Drawings
ECP34 1S2 A
ECP34 2S2 A
ECP34 1L2 A
ECP34 2L2 A
