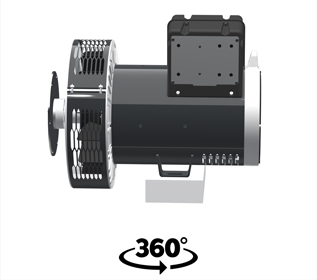

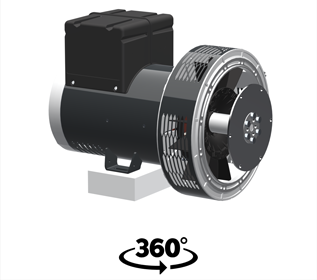

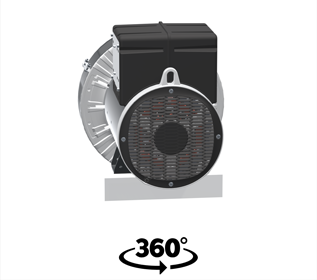

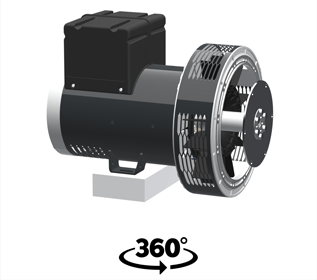

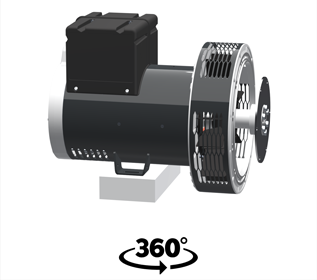

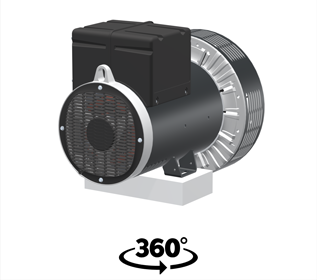

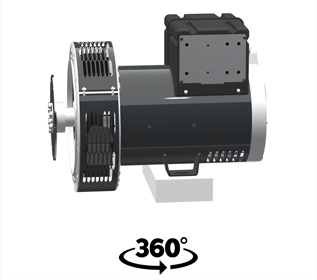

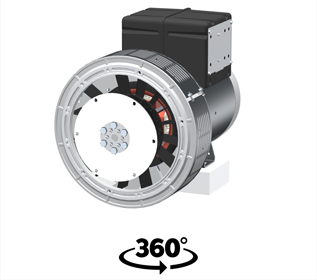

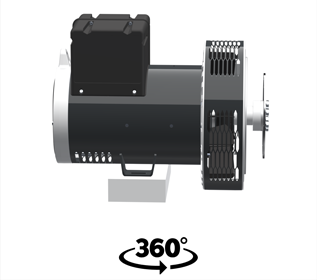

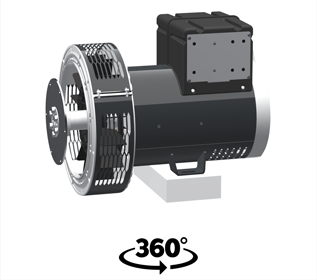

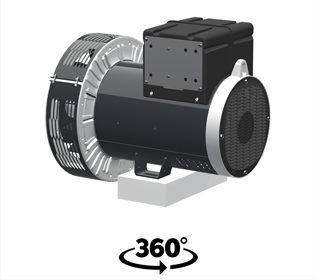

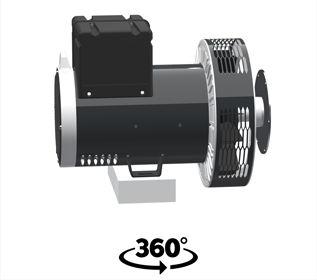

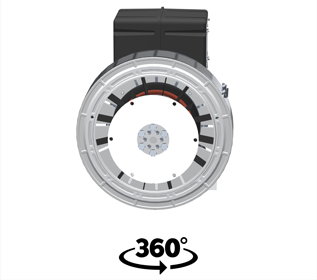

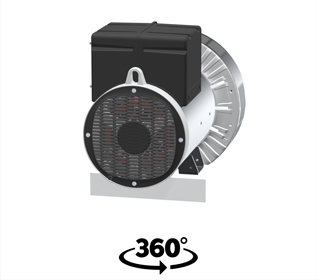

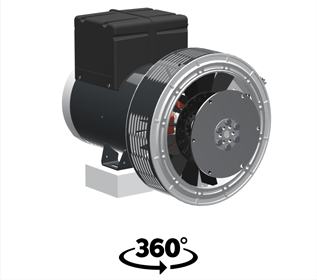

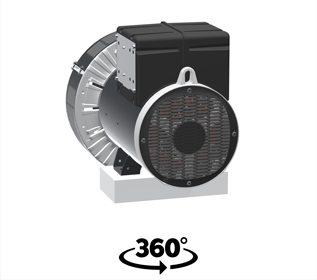

Industrial / ECP30C 4 pole

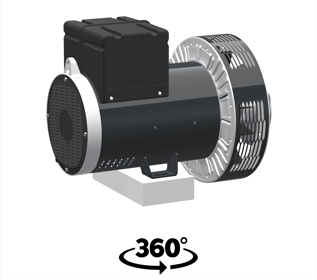

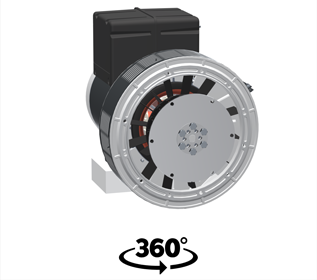

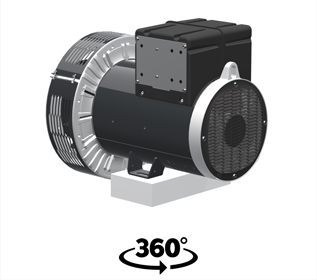

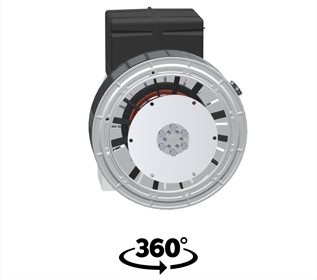

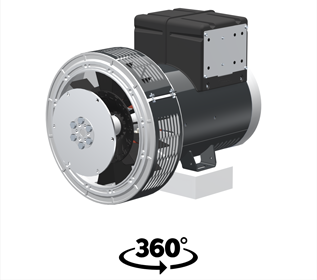

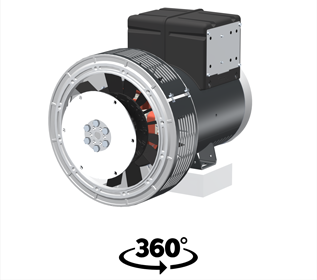

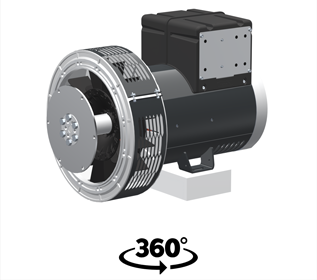

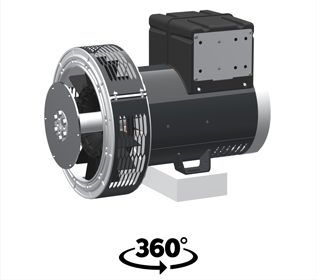

ECP30

4 pole generator

The ECP30 C-Type range has many product features designed into the alternator.
C-Type alternators make the most of energy conversion to produce the maximum power to size ratio.
C-Type is now one of the simplest alternators to assemble, integrate, configure and maintain with OEM equipment.
Our aim was to deliver maximum power from the smallest, lightest and strongest alternators and our designers have lavished the C-Type with much more flexibility.
The entire series is manufactured according to, and complies with, the most common specifications such as CEI 2-3, IEC 34-1, EN 60034-1, VDE 0530, BS 4999-5000, CAN/ CSA-C22.2 No14-95- No100-95.

Find out more   Accessories

General Characteristics

ECP30C 4 pole
Power range (kVA)13.5 - 48
Winding codeT0405S3
Pole4
RegulatorDSR
Overspeed (RPM)2250
Protection classIP23
Altitude (m)0-1000
ModelsPower range (kVA)
1 phase3 phase
ECP30 1M4 C13.5 - 1420 - 24
ECP30 2M4 C16.5 - 1725 - 30
ECP30 3M4 C20.5 - 2130 - 36
ECP30 1L4 C22 - 2335 - 42
ECP30 2L4 C24 - 2540 - 48


Technical documents

DDS - Dynamic Data Support

Create your own and personalized technical datasheet according to your specifications.

Get it here

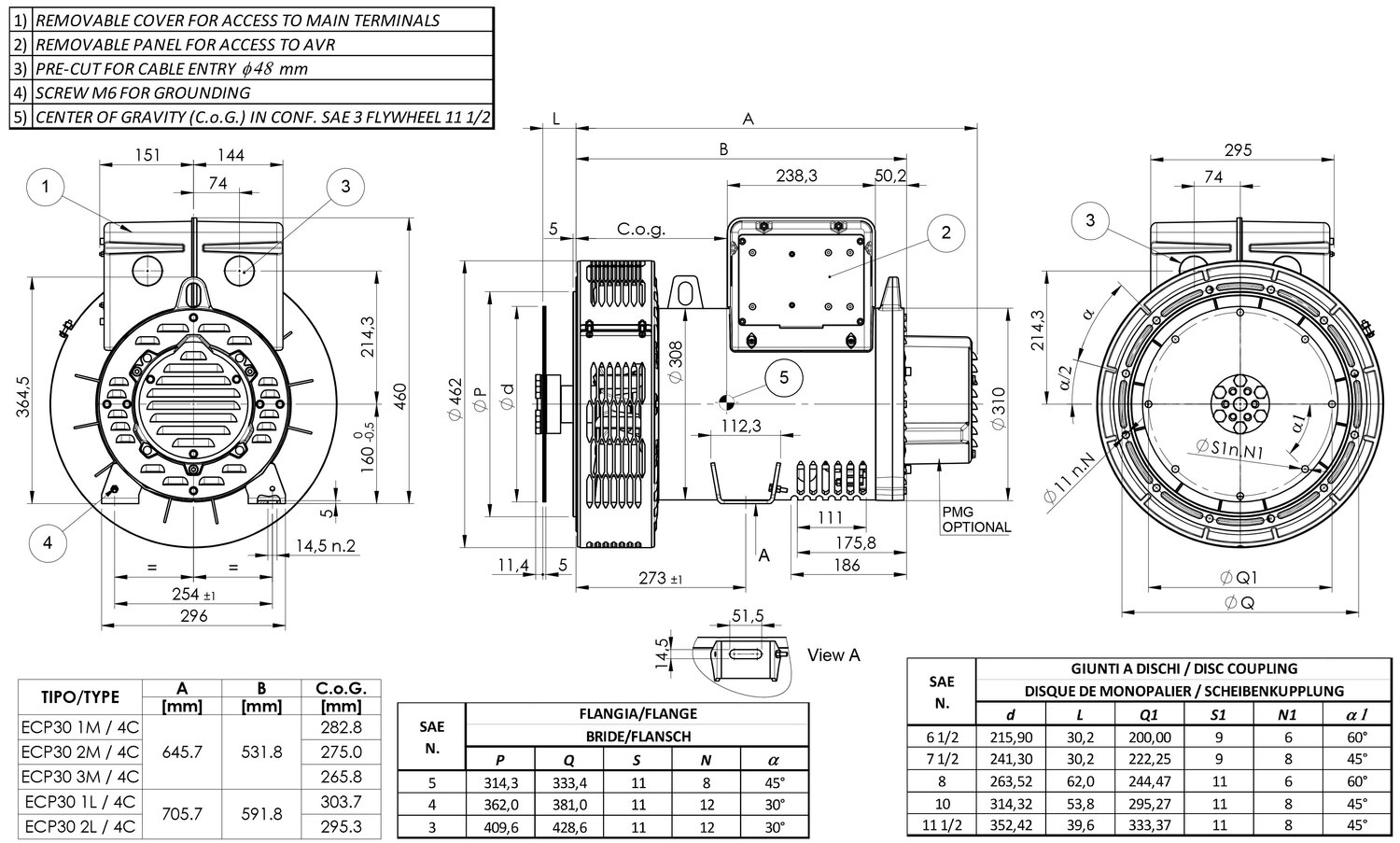

Overall Dimensions Drawings
