ECP3
2 pole generator
The ECP3 range has many product features designed into the alternator.
Self-regulation is obtained through a digital electronic regulator that is fed by an auxiliary winding.
We guarantee an almost constant supply from the generator – under any possible operating condition.
The windings have a 2/3 pitch in order to reduce the harmonic content of voltage.
The entire series is manufactured according to, and complies with, the most common specifications such as CEI 2-3, IEC 34-1, EN 60034-1, VDE 0530, BS 4999-5000, CAN/ CSA-C22.2 No14-95- No100-95.
General Characteristics
| ECP3 2 pole | |
|---|---|
| Power range (kVA) | 5 - 24 |
| Winding code | T0405S3 |
| Pole | 2 |
| Regulator | DSR |
| Overspeed (RPM) | 4500 |
| Protection class | IP23 |
| Altitude (m) | 0-1000 |
| Models | Power range (kVA) | |
|---|---|---|
| 1 phase | 3 phase | |
| ECP3 1S2 | 5 - 5.8 | 8 - 9.6 |
| ECP3 2S2 | 7 - 7.4 | 10 - 12 |
| ECP3 3S2 | 8 - 8.4 | 12.5 - 15 |
| ECP3 1L2 | 10.5 - 11 | 16 - 19.2 |
| ECP3 2L2 | 12.5 - 13 | 20 - 24 |
Technical documents
DDS - Dynamic Data Support
Create your own and personalized technical datasheet according to your specifications.

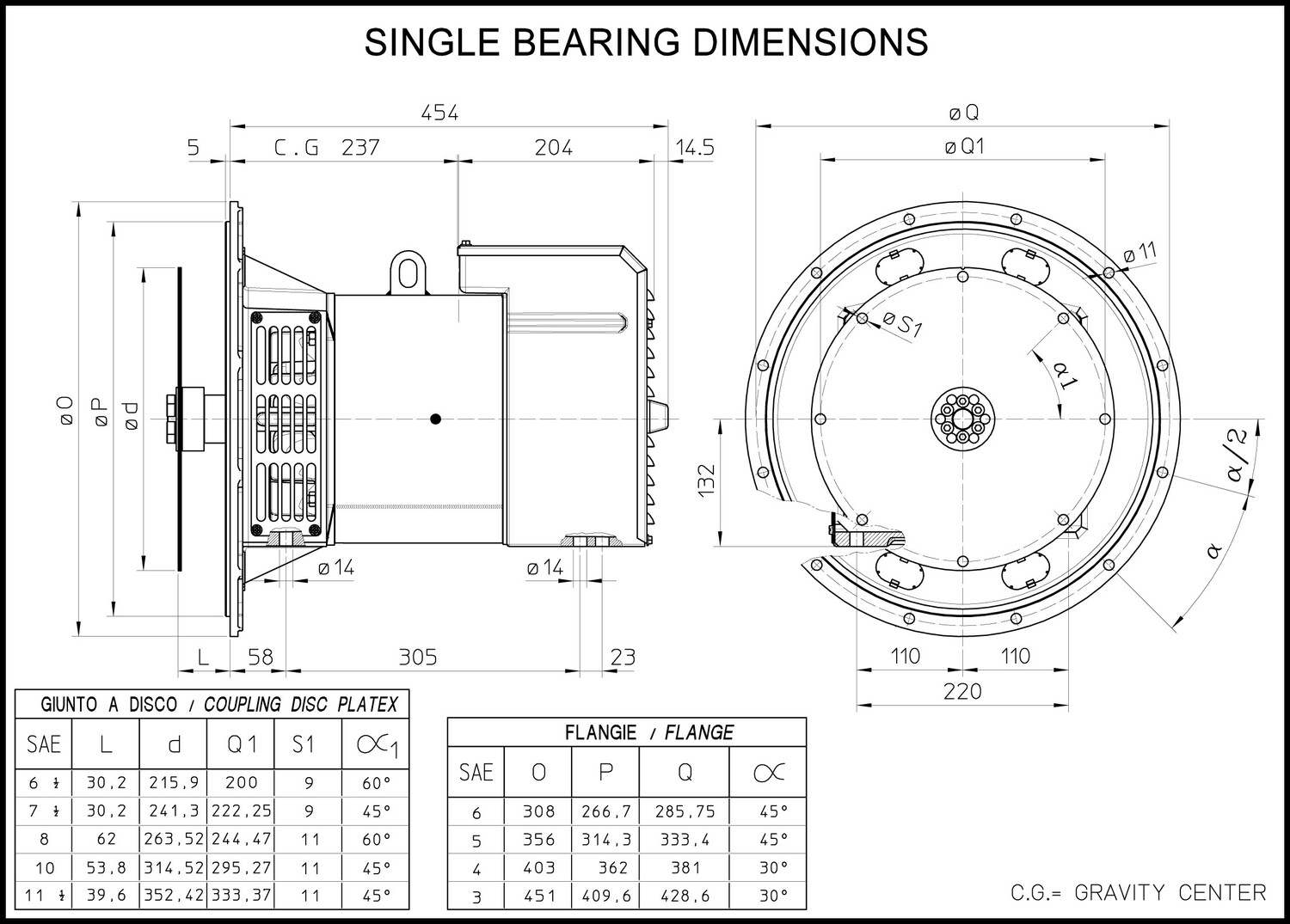

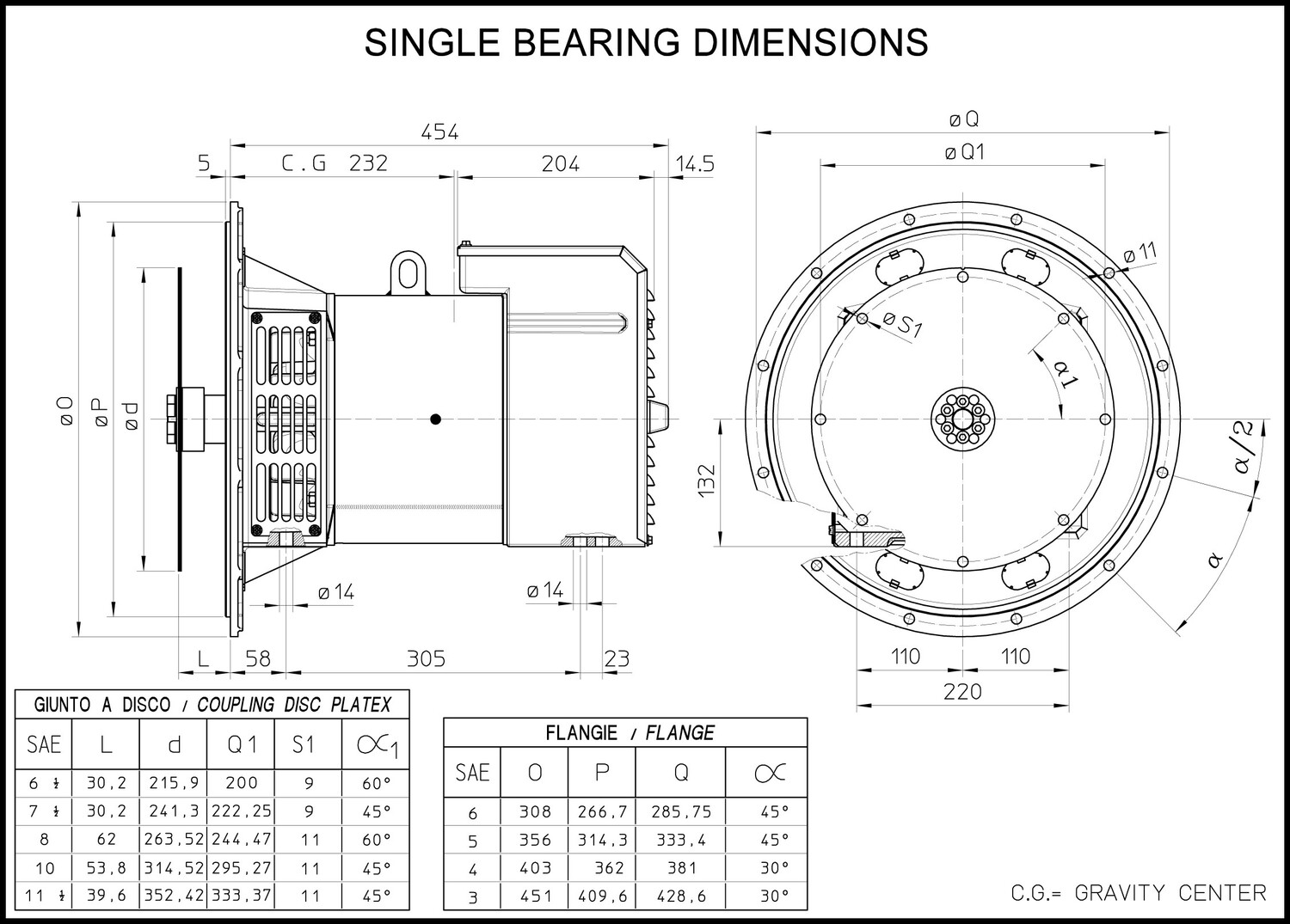

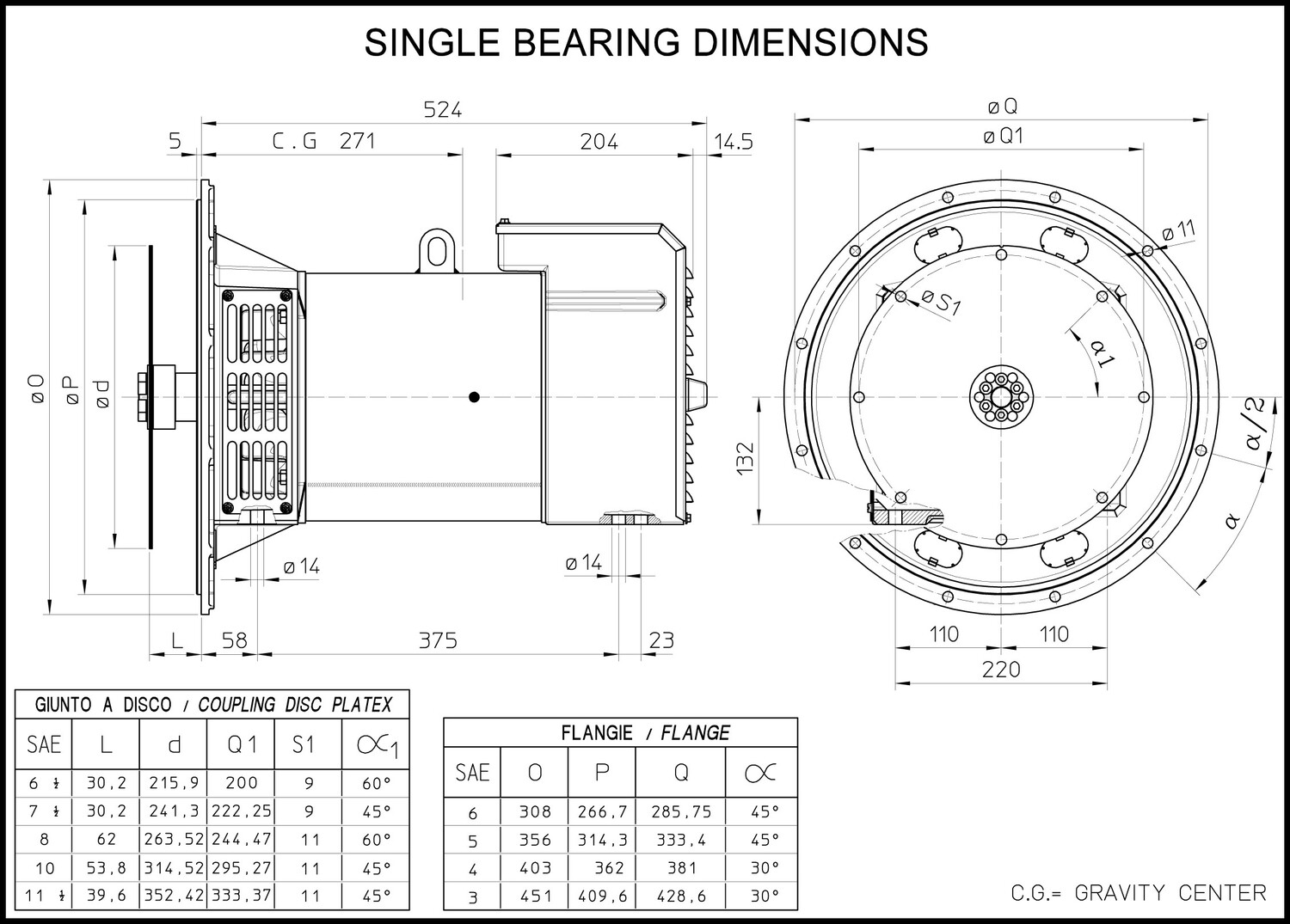

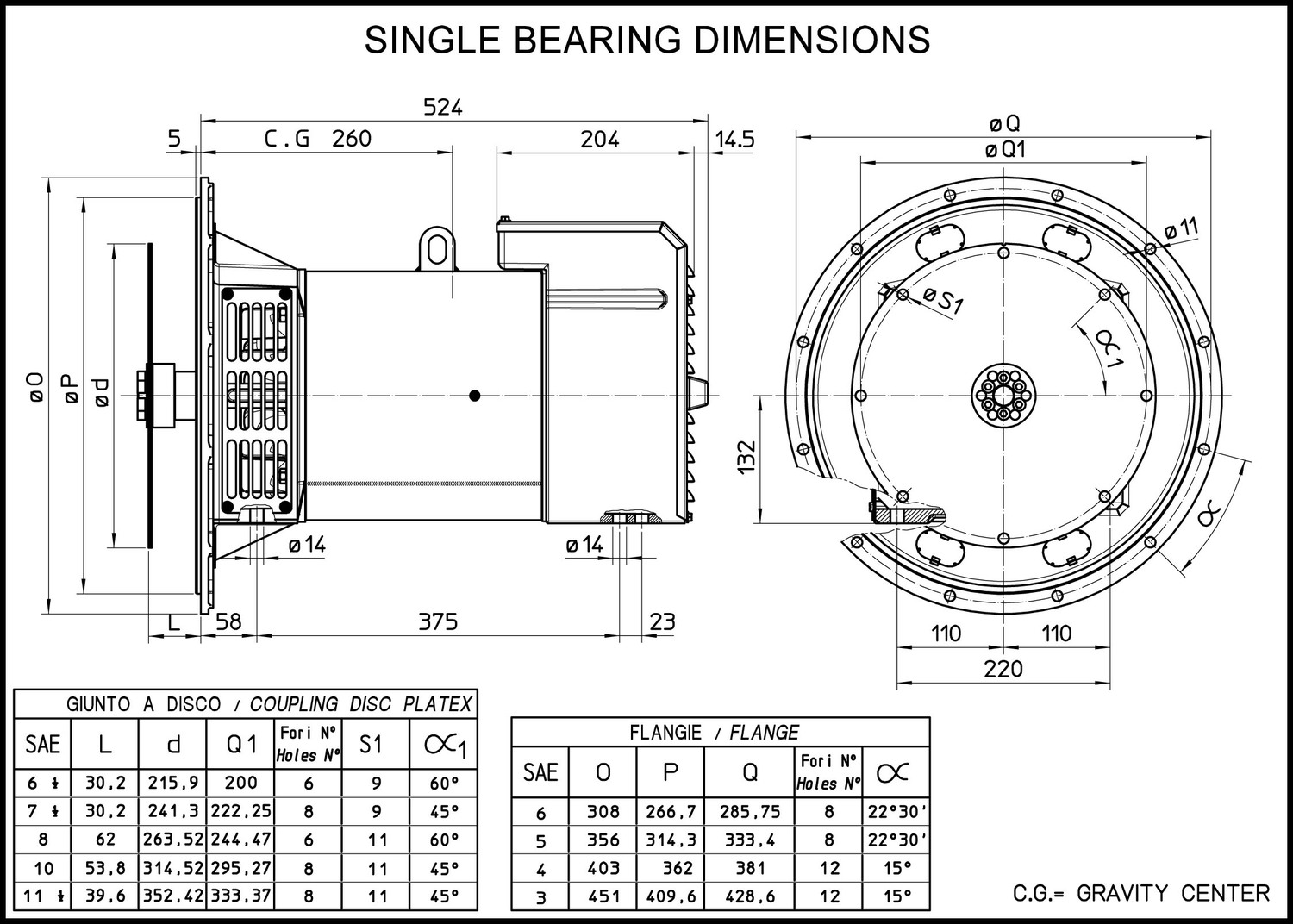

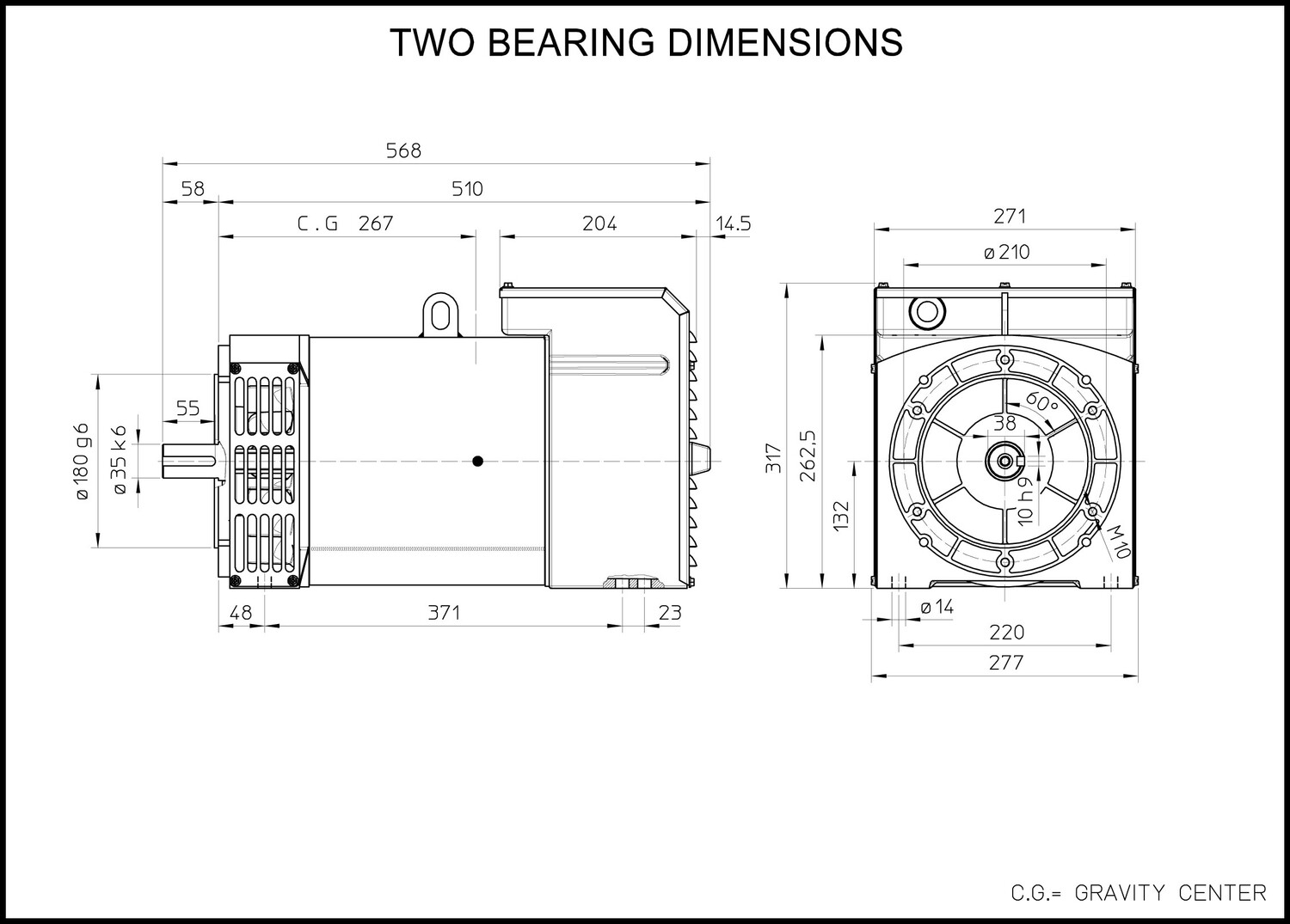

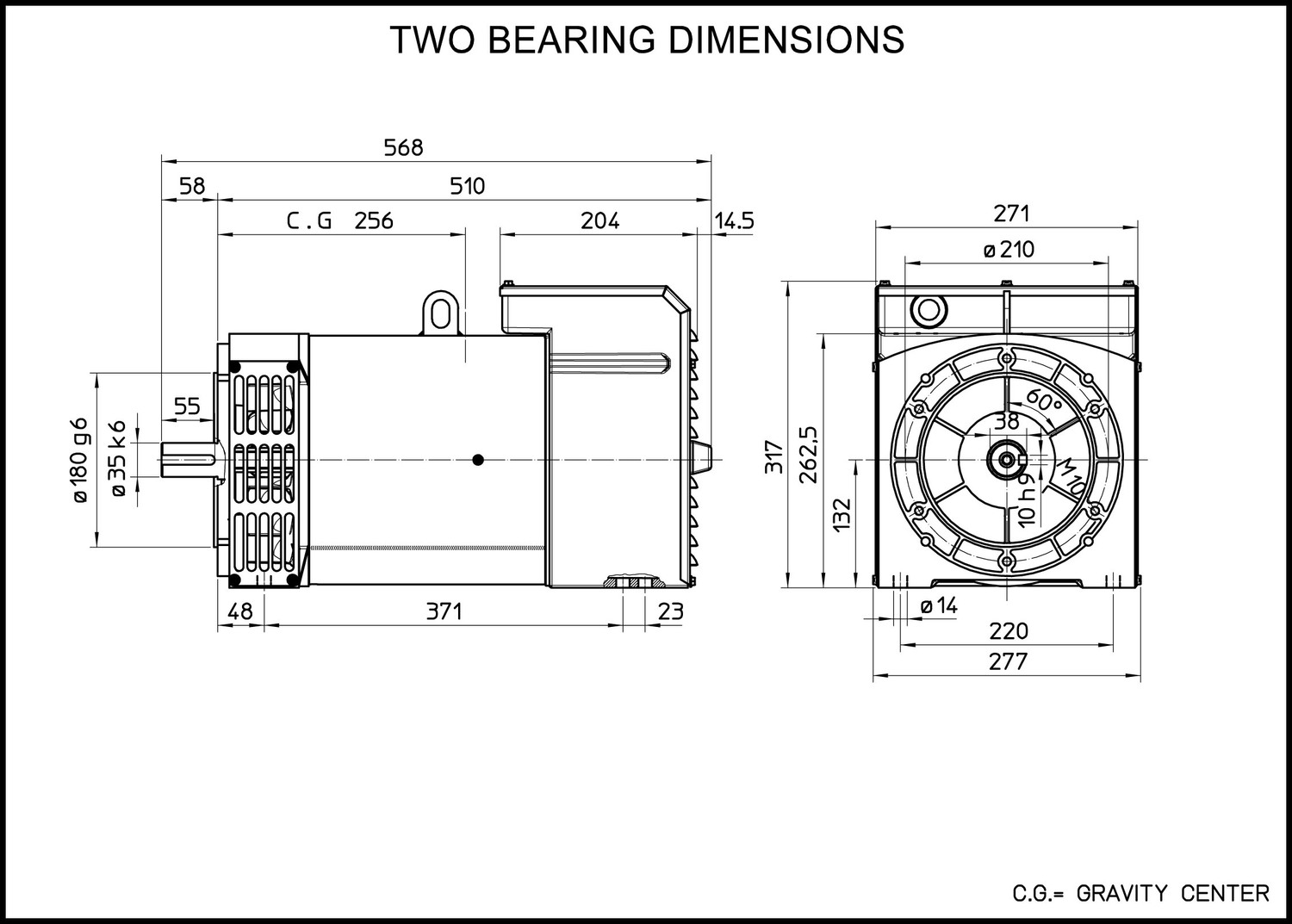

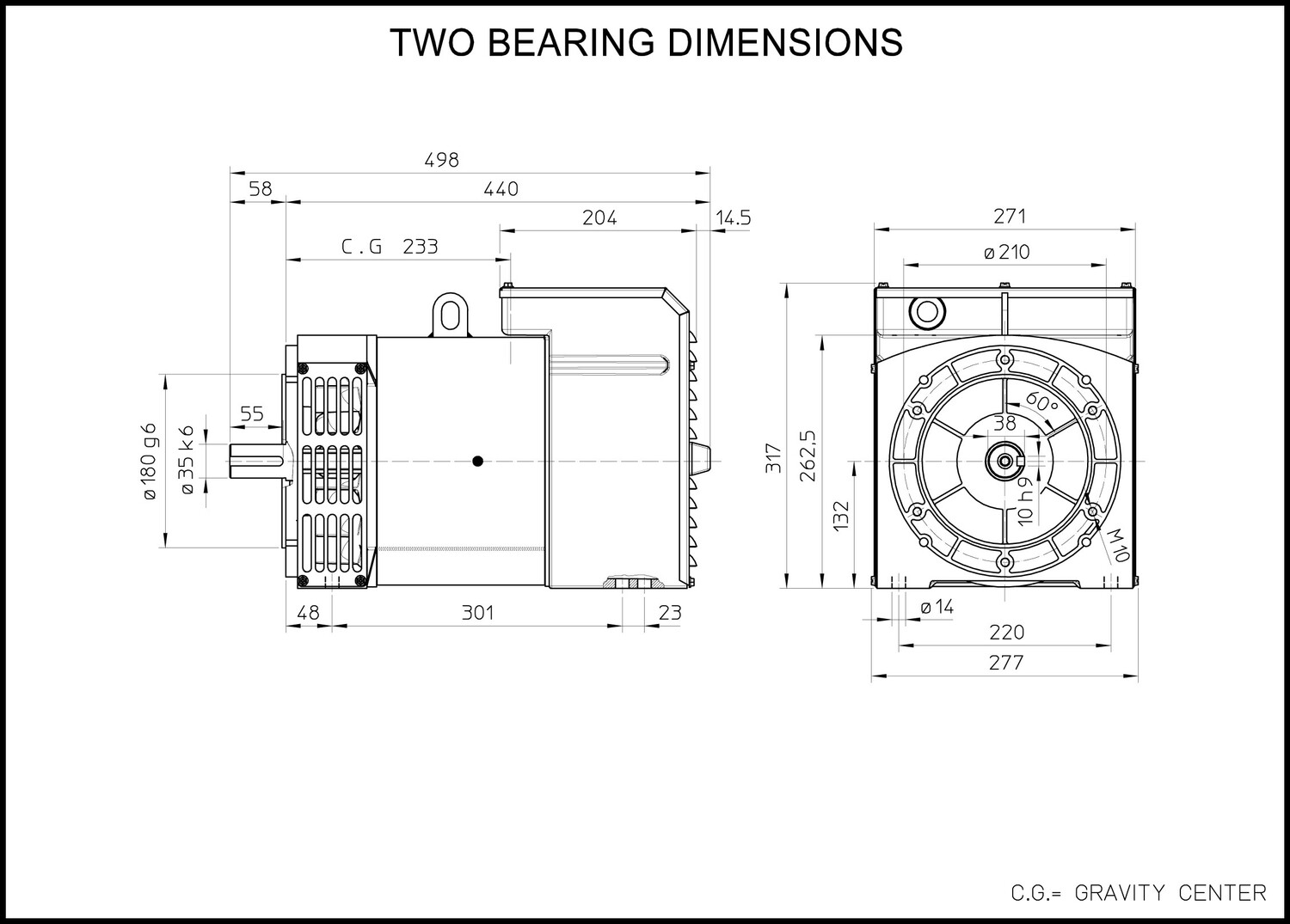

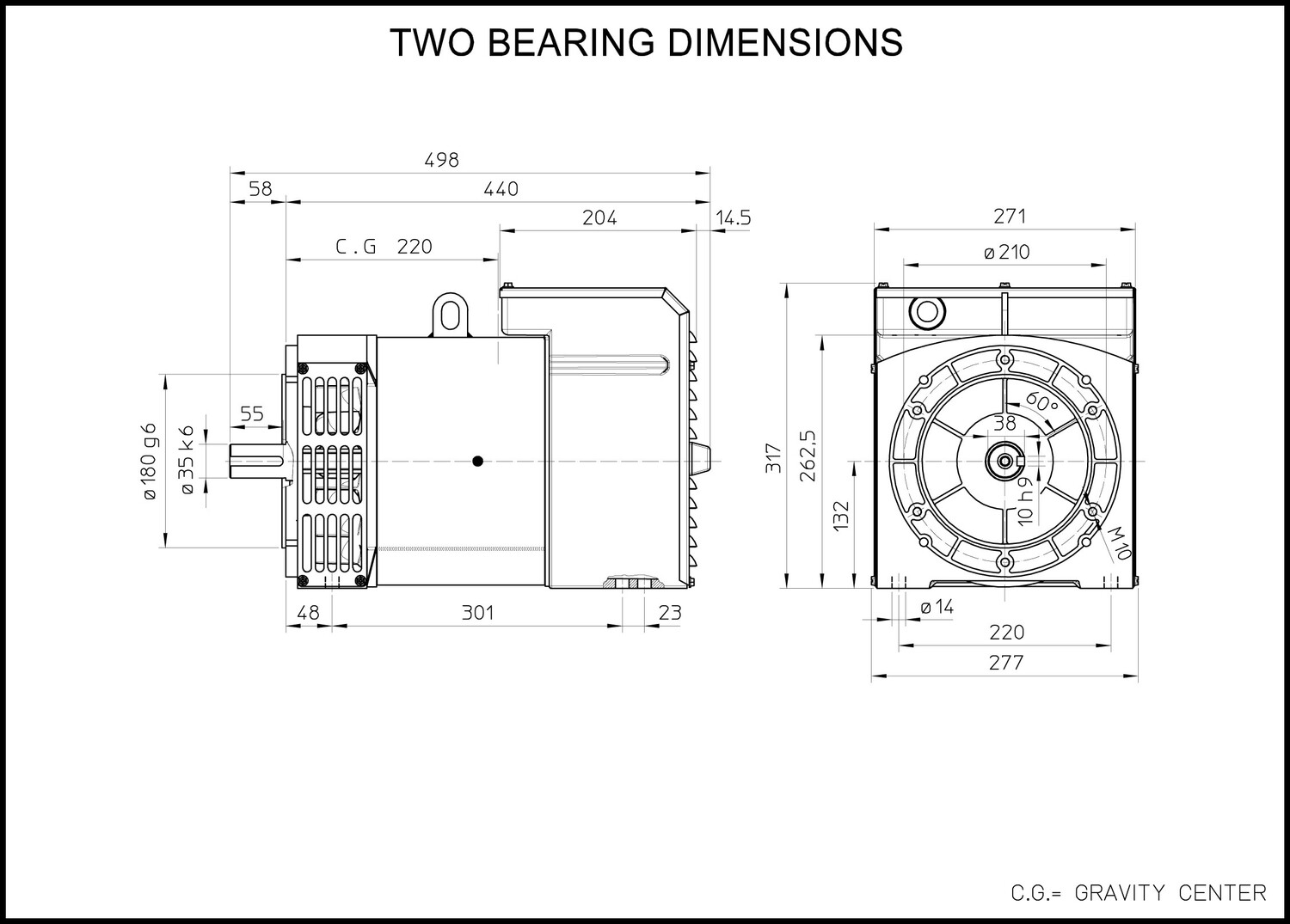

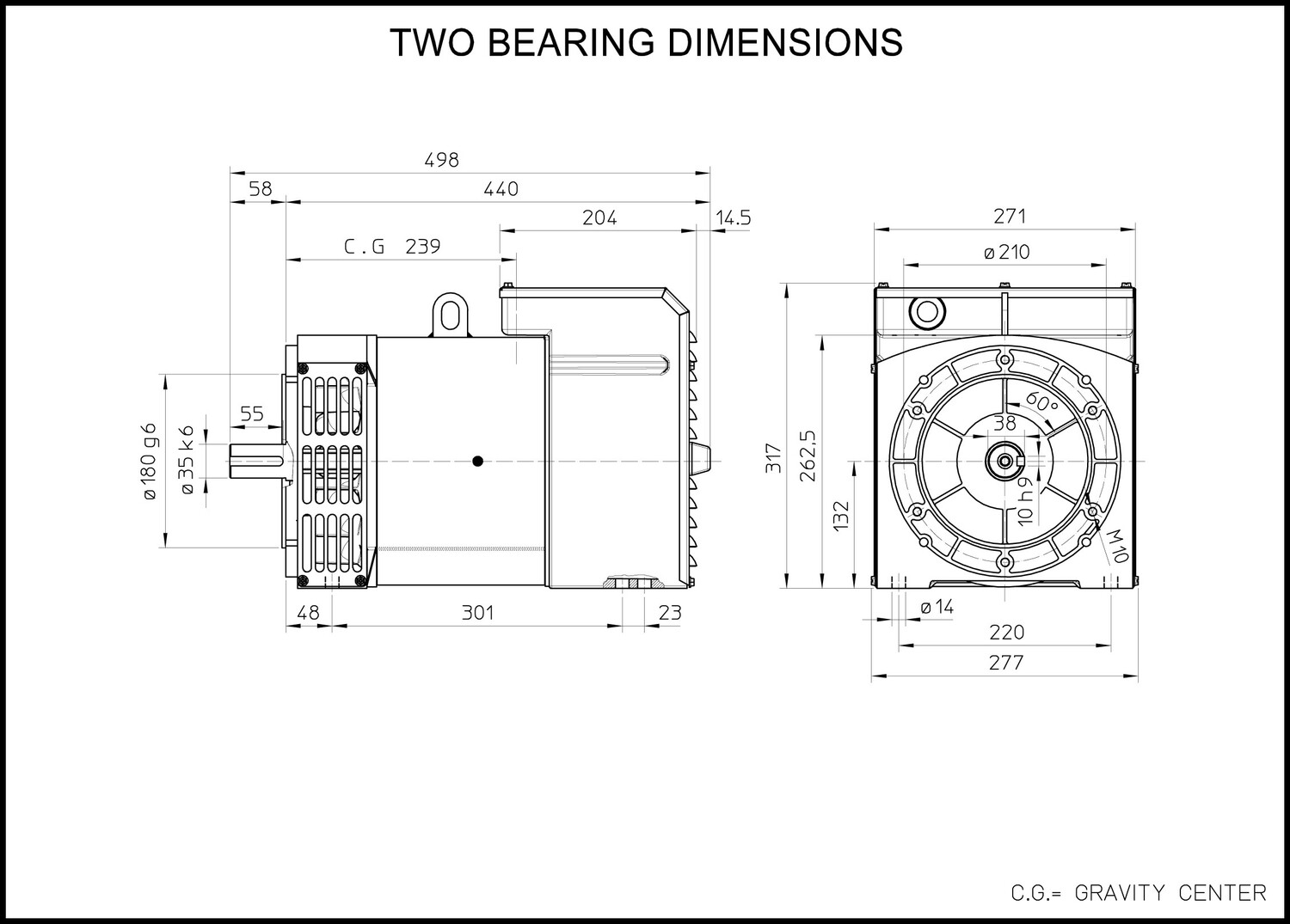

Overall Dimensions Drawings
ECP3 1S2
ECP3 2S2
ECP3 3S2
ECP3 1L2
ECP3 2L2
