ECO46 A
4 pole generator
The ECO46 range has many product features designed into the alternator.
Self-regulation is obtained through a digital electronic regulator that is fed by an auxiliary winding.
We guarantee an almost constant supply from the generator – under any possible operating condition.
A rotating inductor is fitted with a damper cage.
The windings have a 2/3 pitch in order to reduce the harmonic content of voltage.
The entire series is manufactured according to, and complies with, the most common specifications such as CEI 2-3, IEC 34-1, EN 60034-1, VDE 0530, BS 4999-5000, CAN/ CSA-C22.2 No14-95- No100-95.
General Characteristics
| ECO46A 4 pole | |
|---|---|
| Power range (kVA) | 1500 - 3410 |
| Winding code | T0405P3 |
| Pole | 4 |
| Regulator | DER-1/A |
| Overspeed (RPM) | 2250 |
| Protection class | IP23 |
| Altitude (m) | 0-1000 |
| Models | Power range (kVA) |
|---|---|
| 3 phase | |
| ECO46 1S4 A | 1500 - 1800 |
| ECO46 1.5S4 A | 1650 - 1980 |
| ECO46 2S4 A | 1800 - 2160 |
| ECO46 1L4 A | 2100 - 2520 |
| ECO46 1.5L4 A | 2300 - 2760 |
| ECO46 2L4 A | 2500 - 3000 |
| ECO46 VL4 A | 2800 - 3410 |
Technical documents
DDS - Dynamic Data Support
Create your own and personalized technical datasheet according to your specifications.

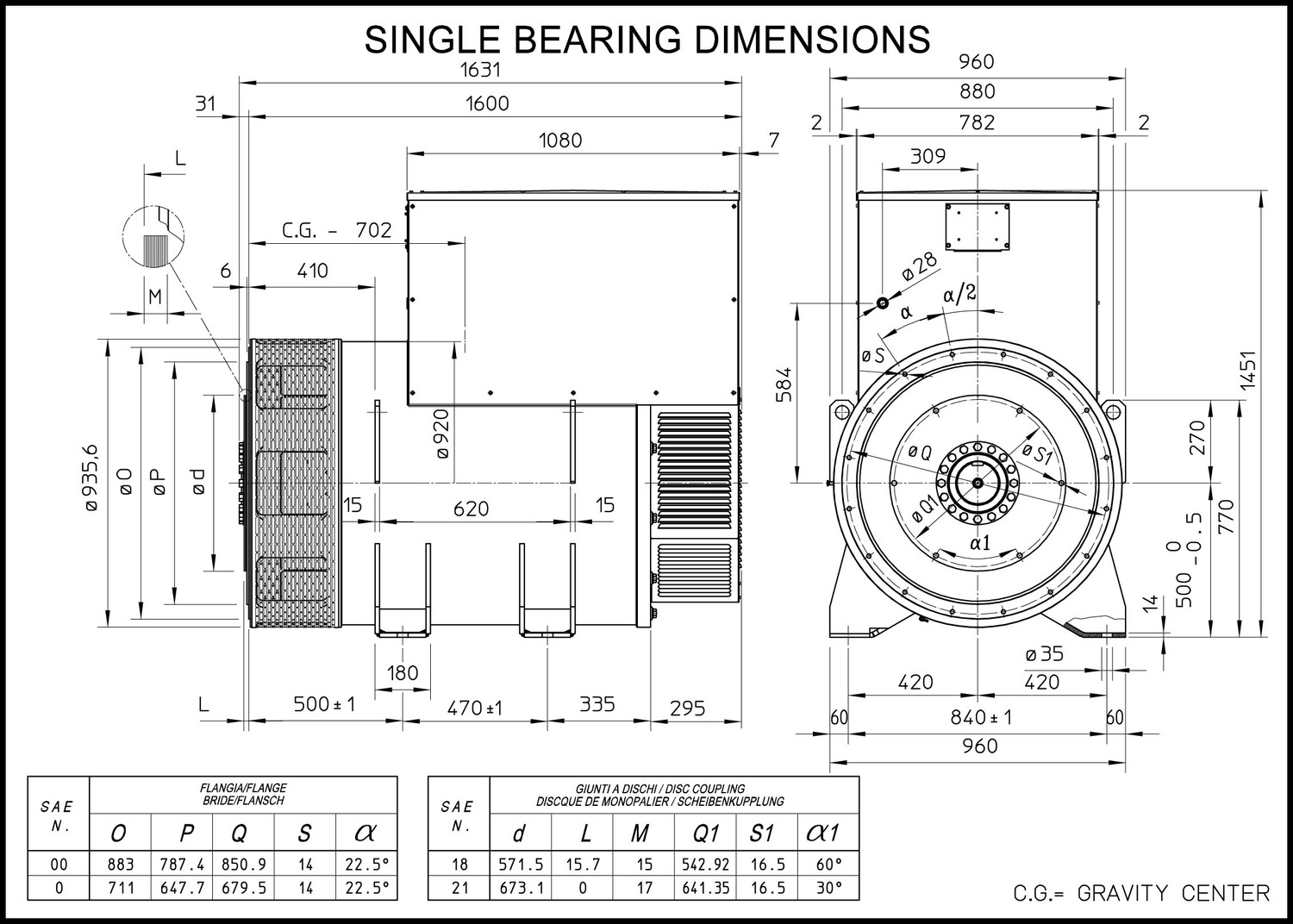

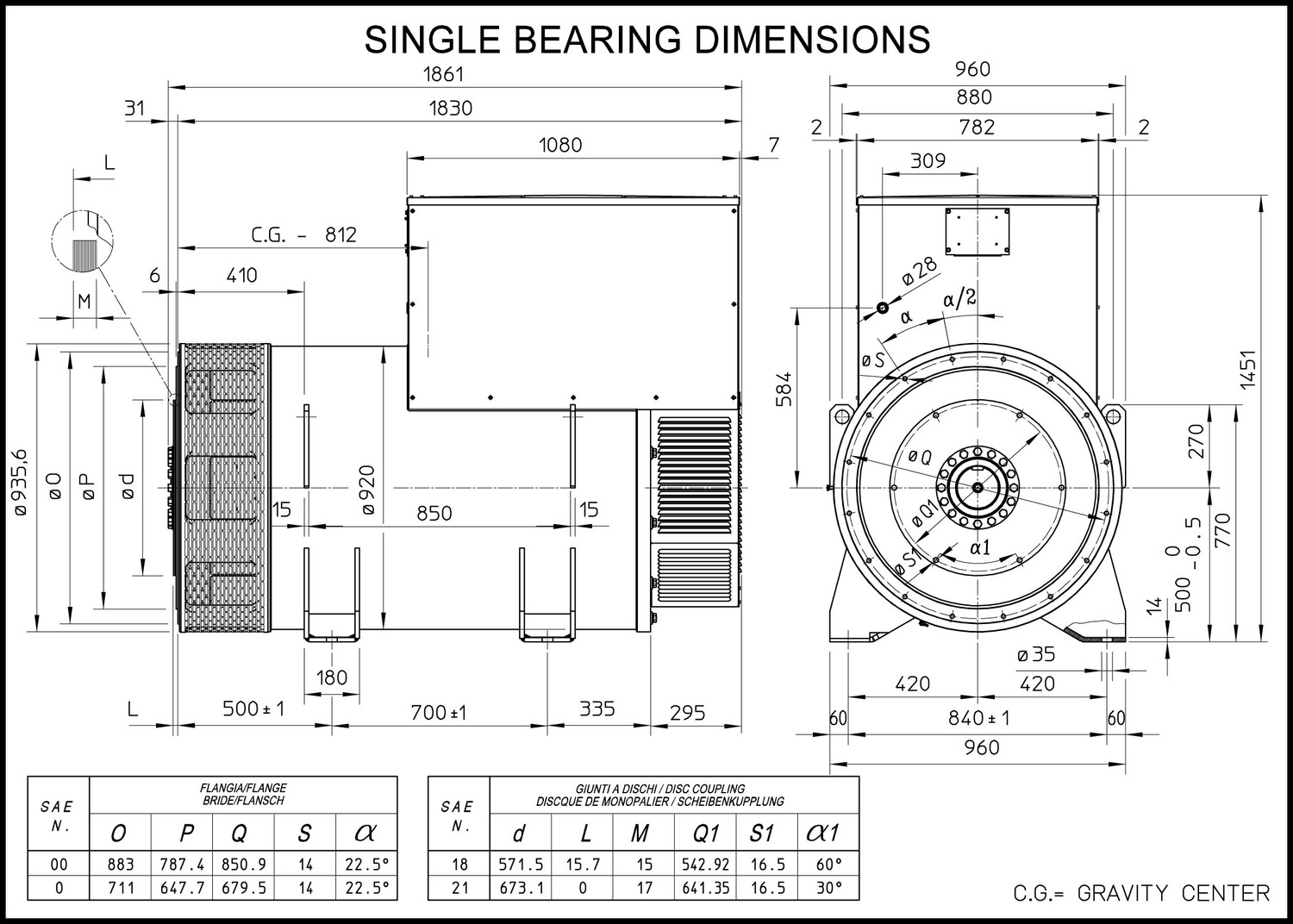

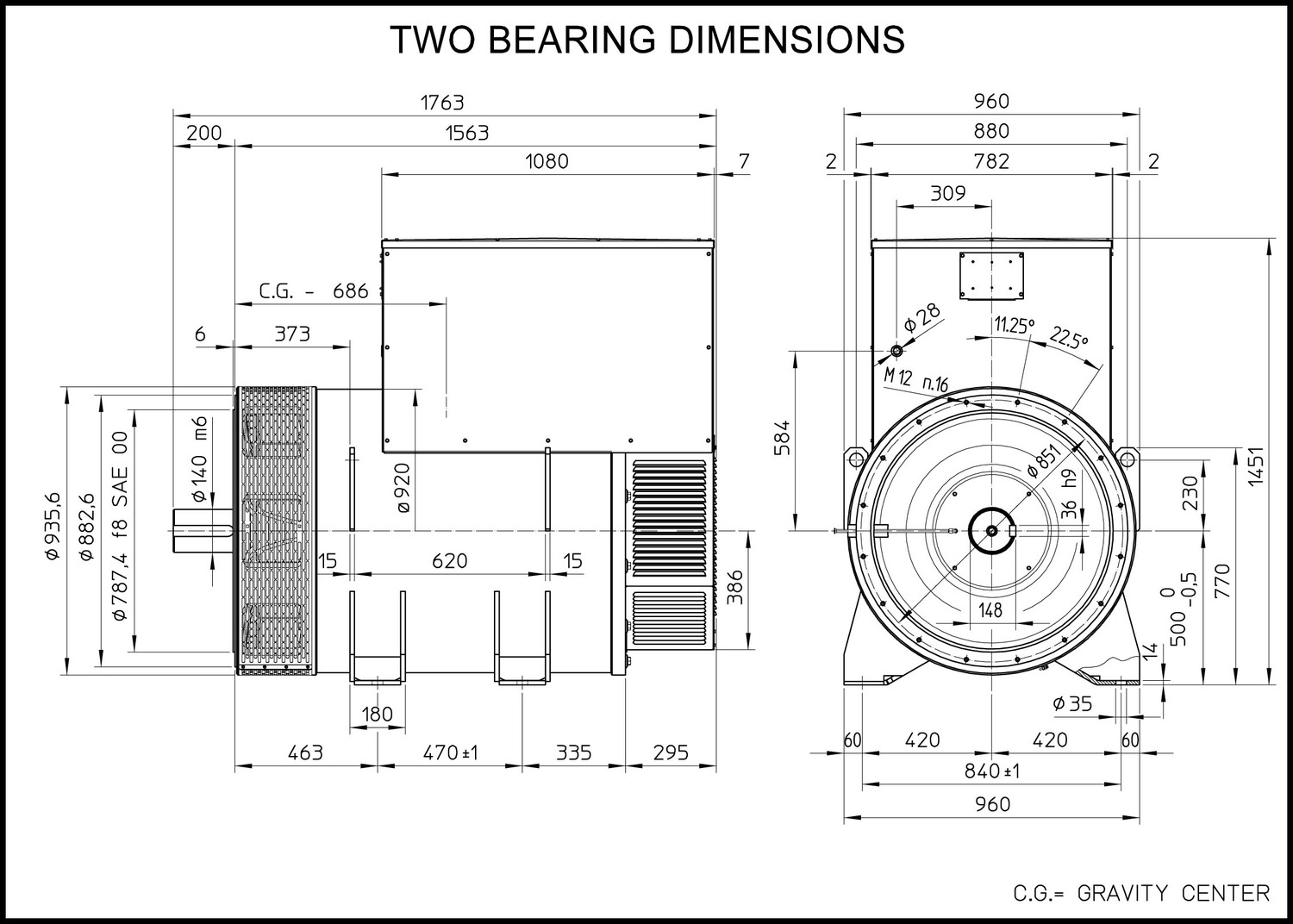

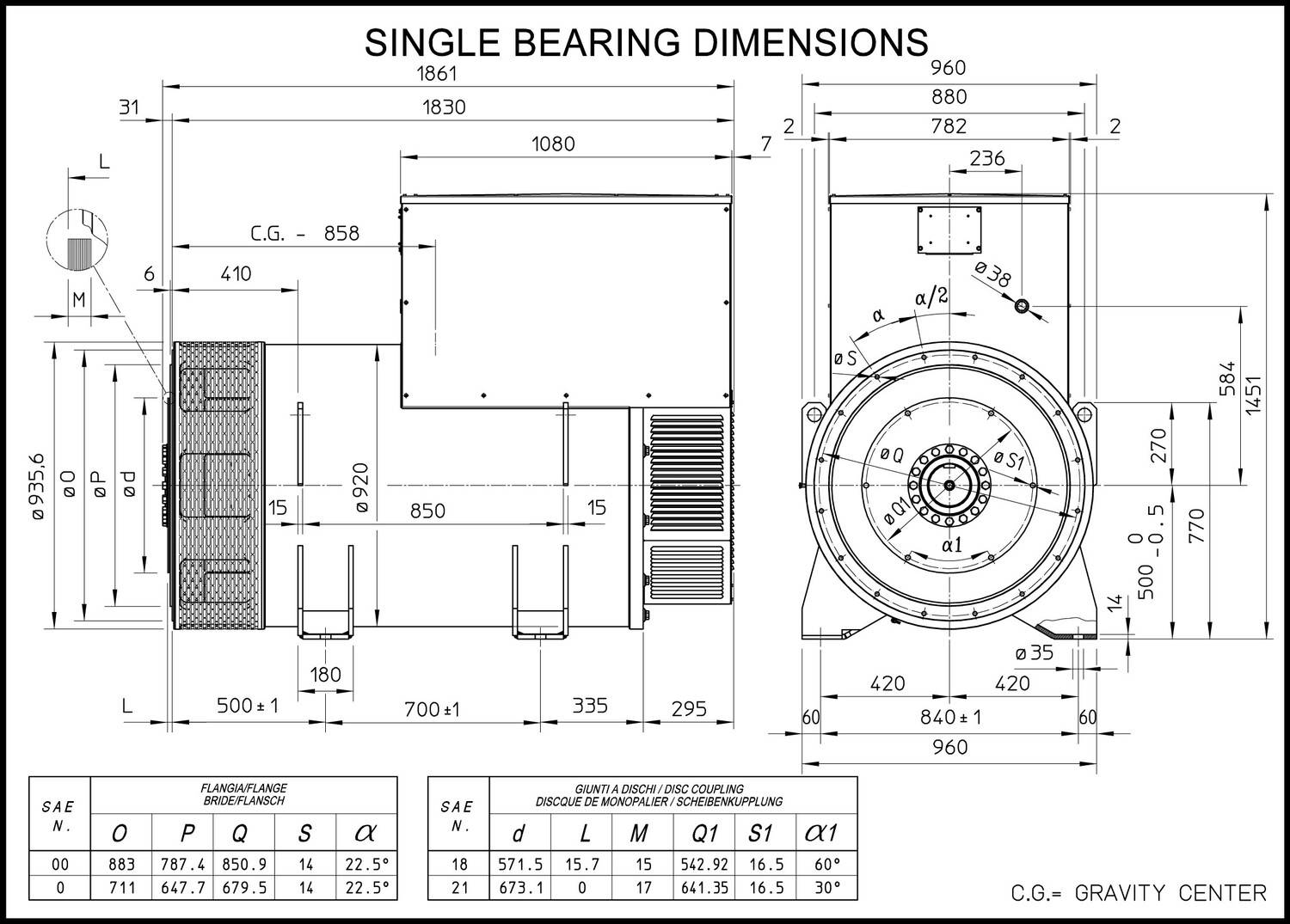

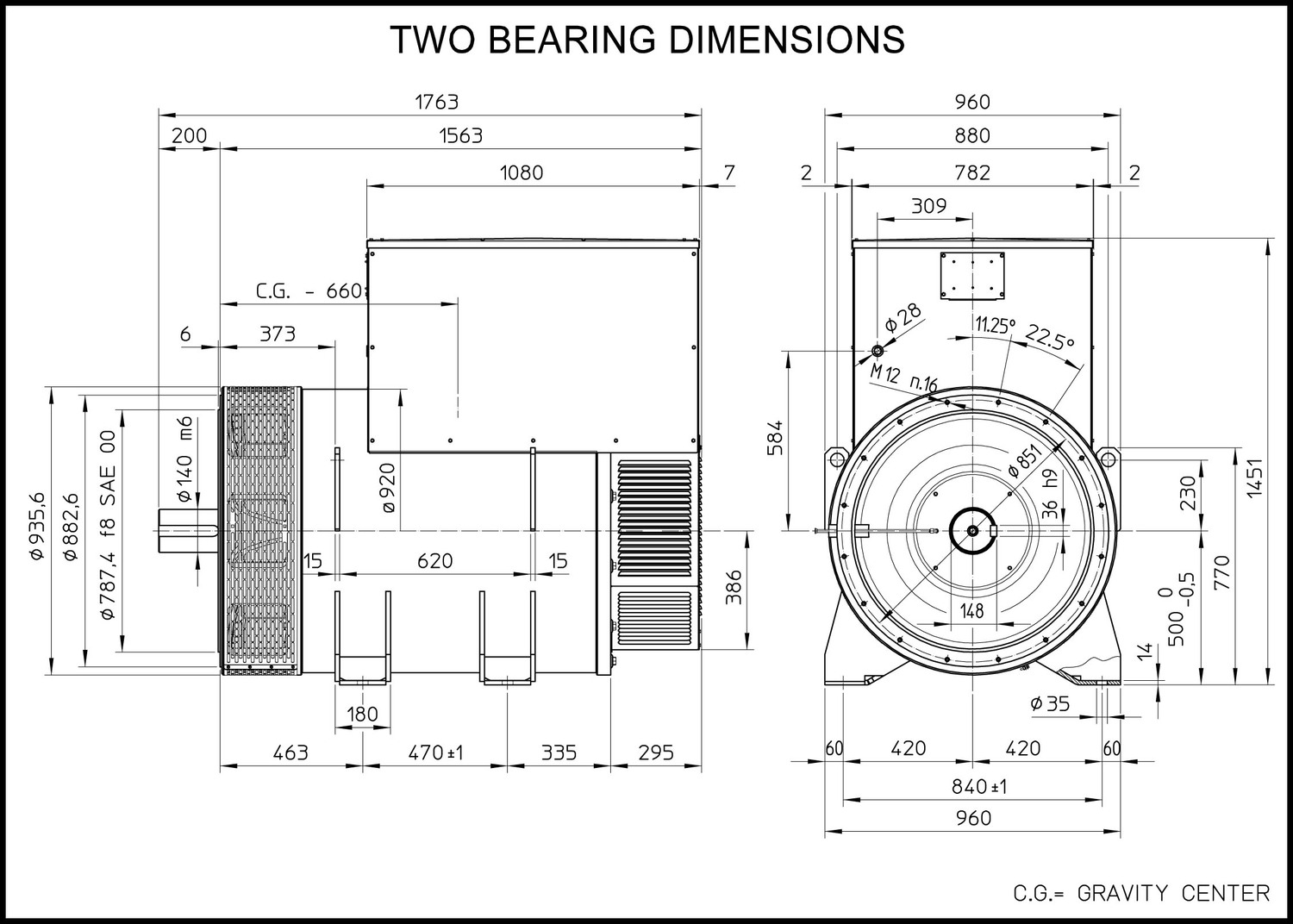

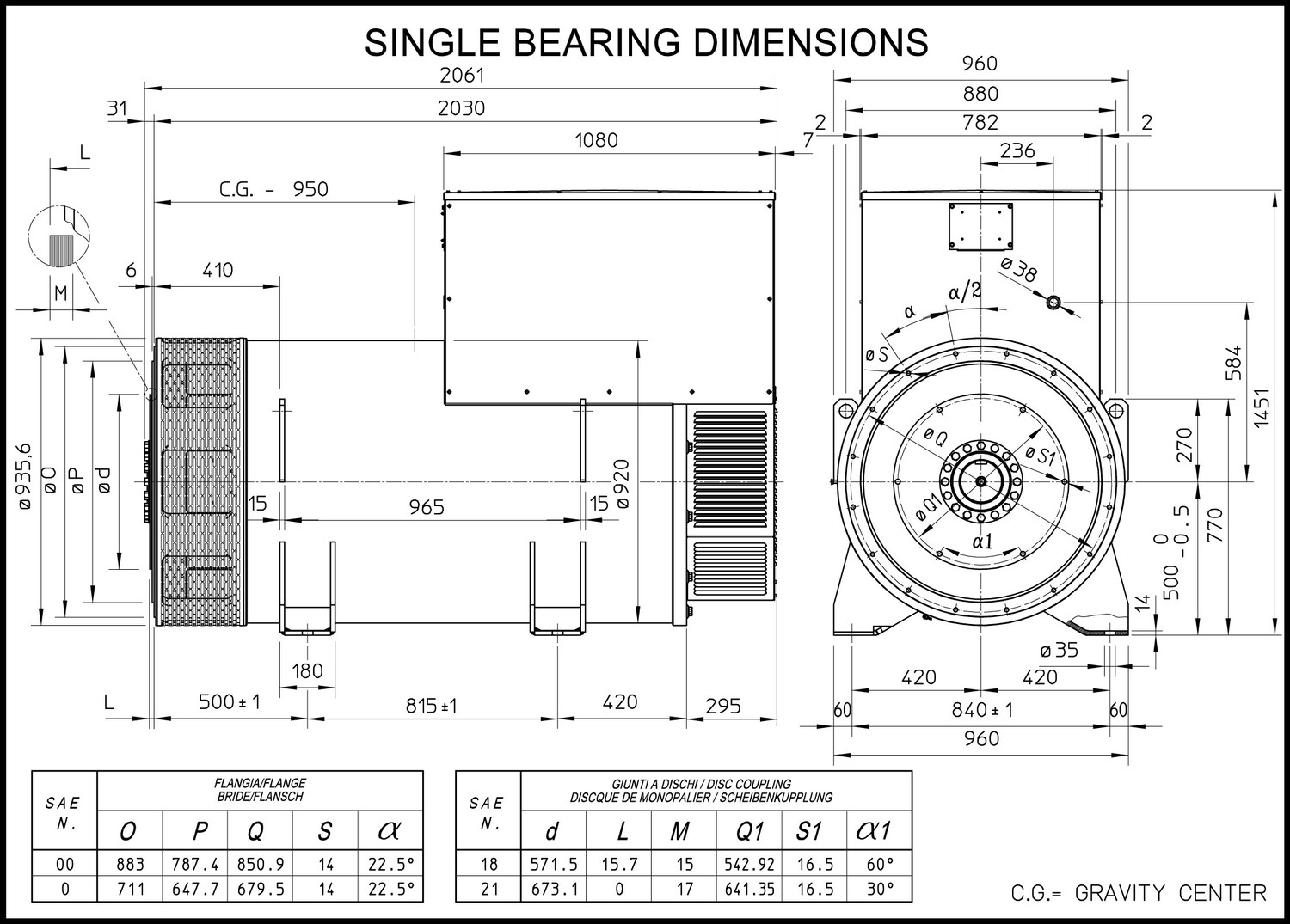

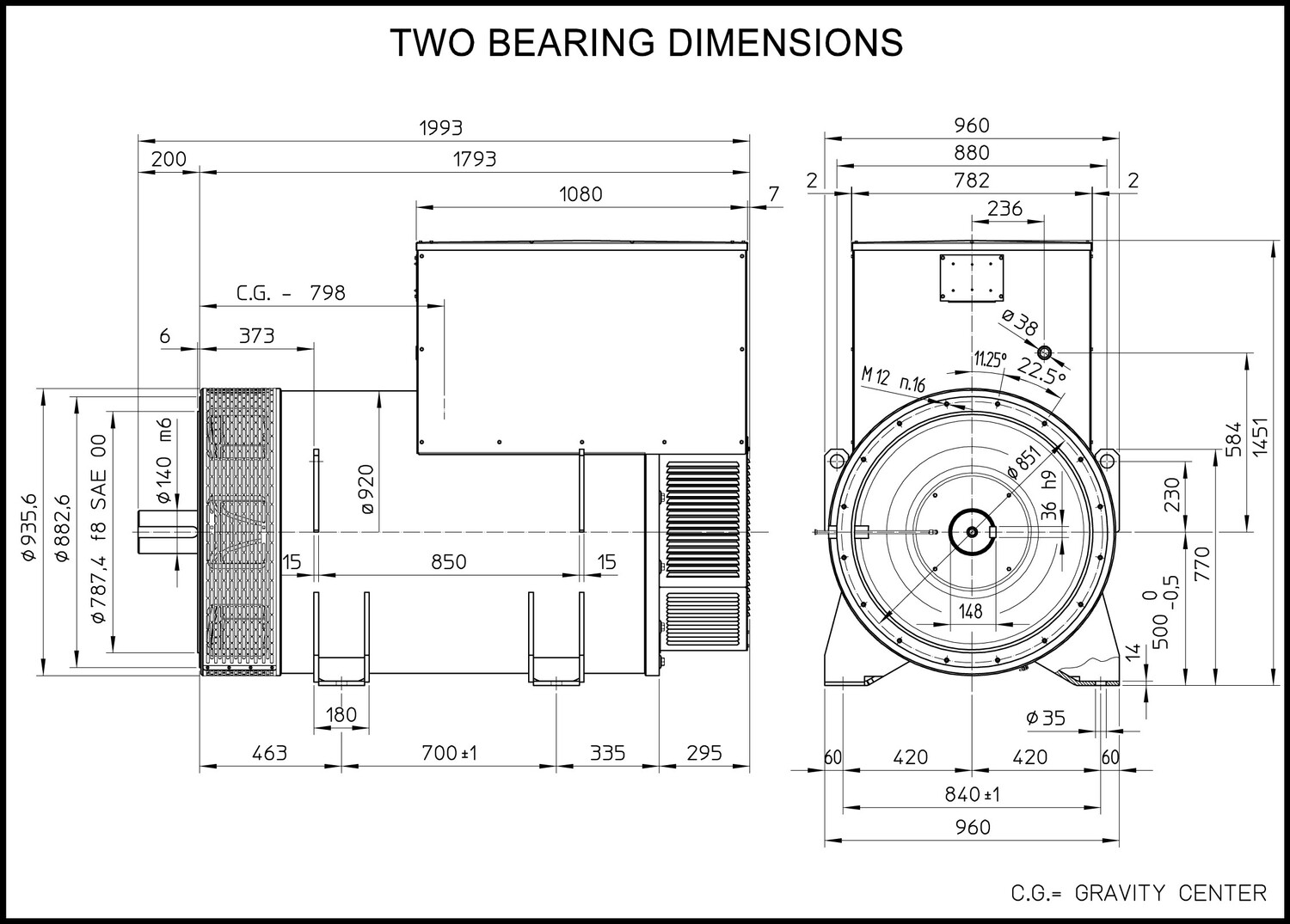

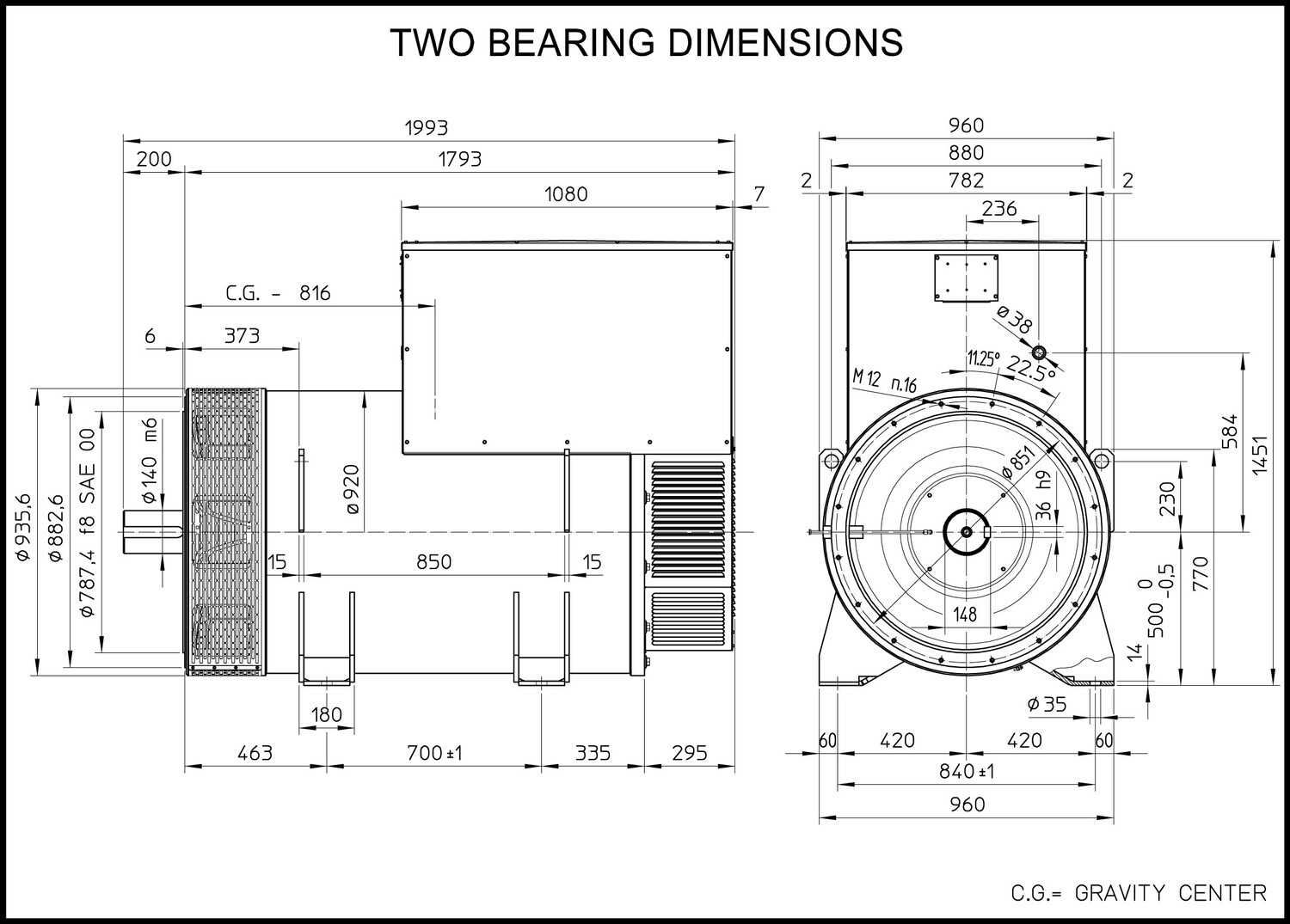

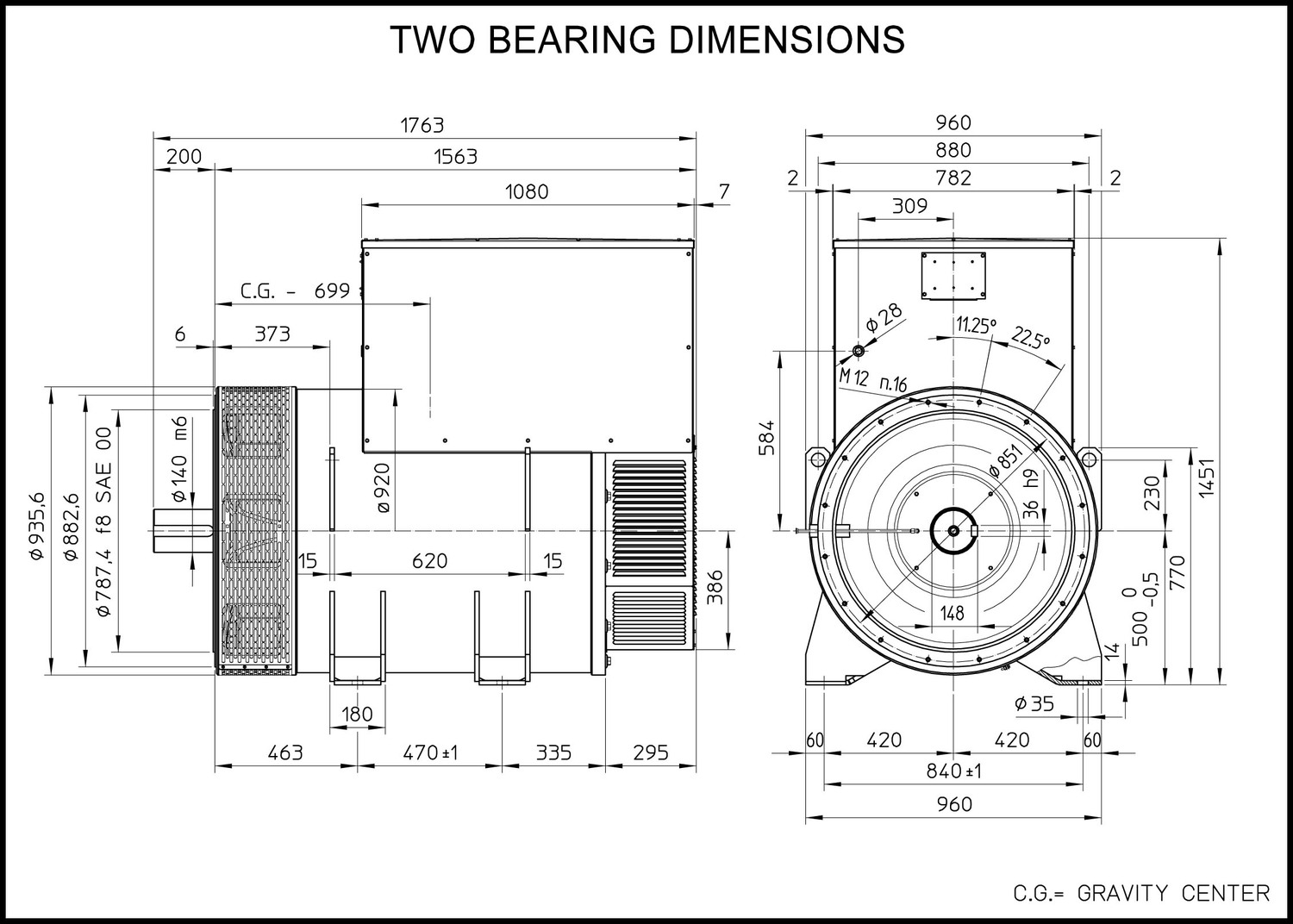

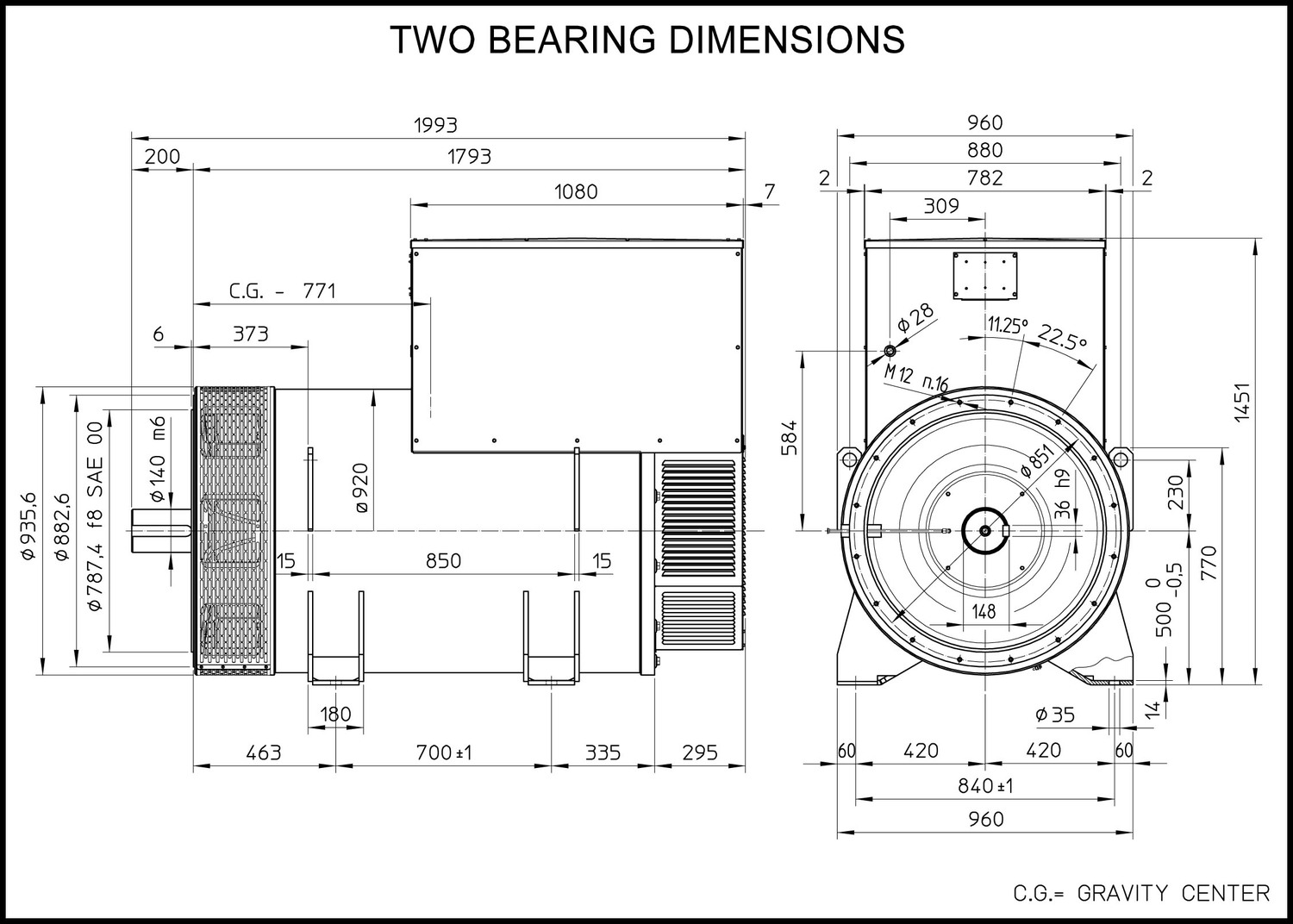

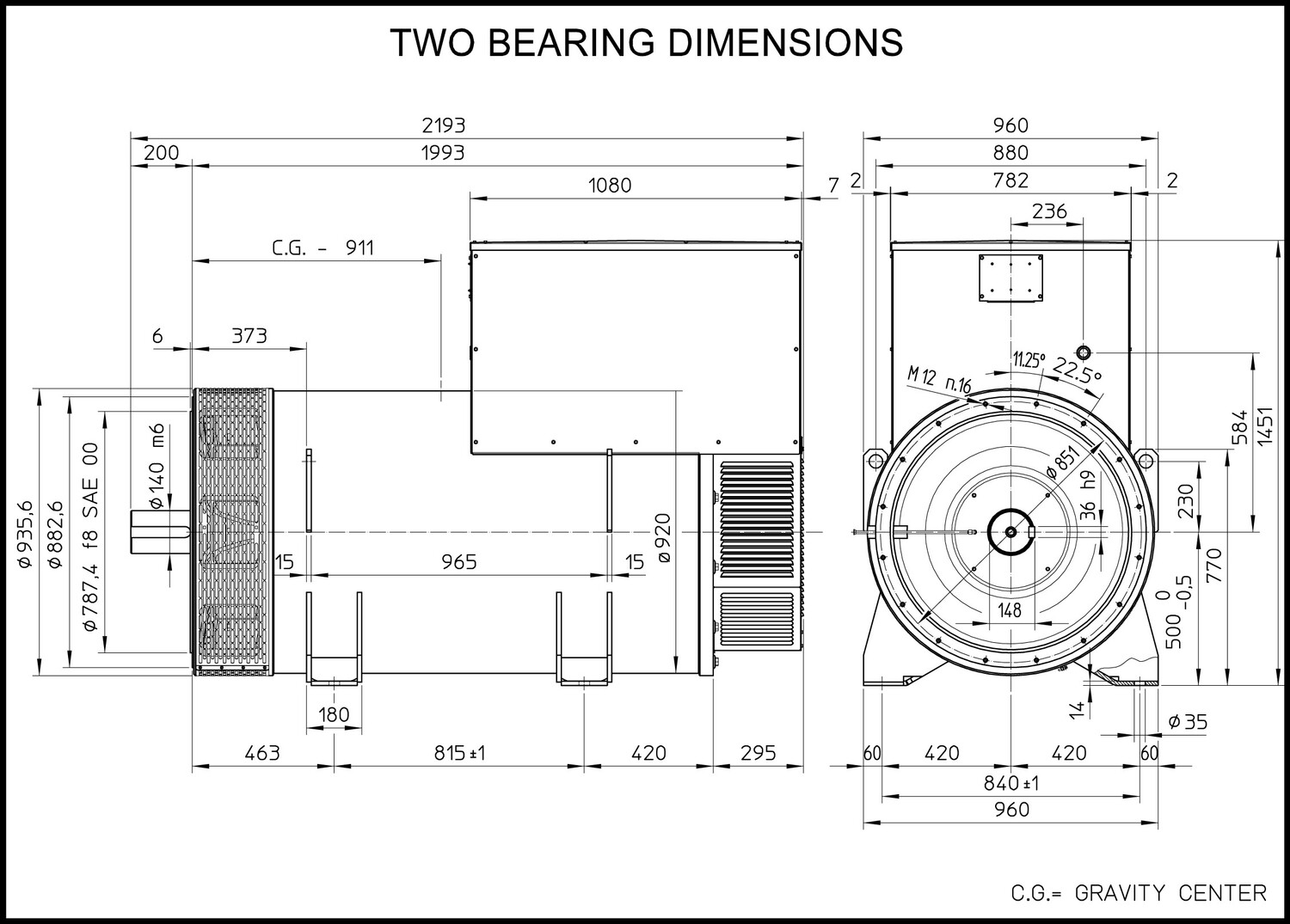

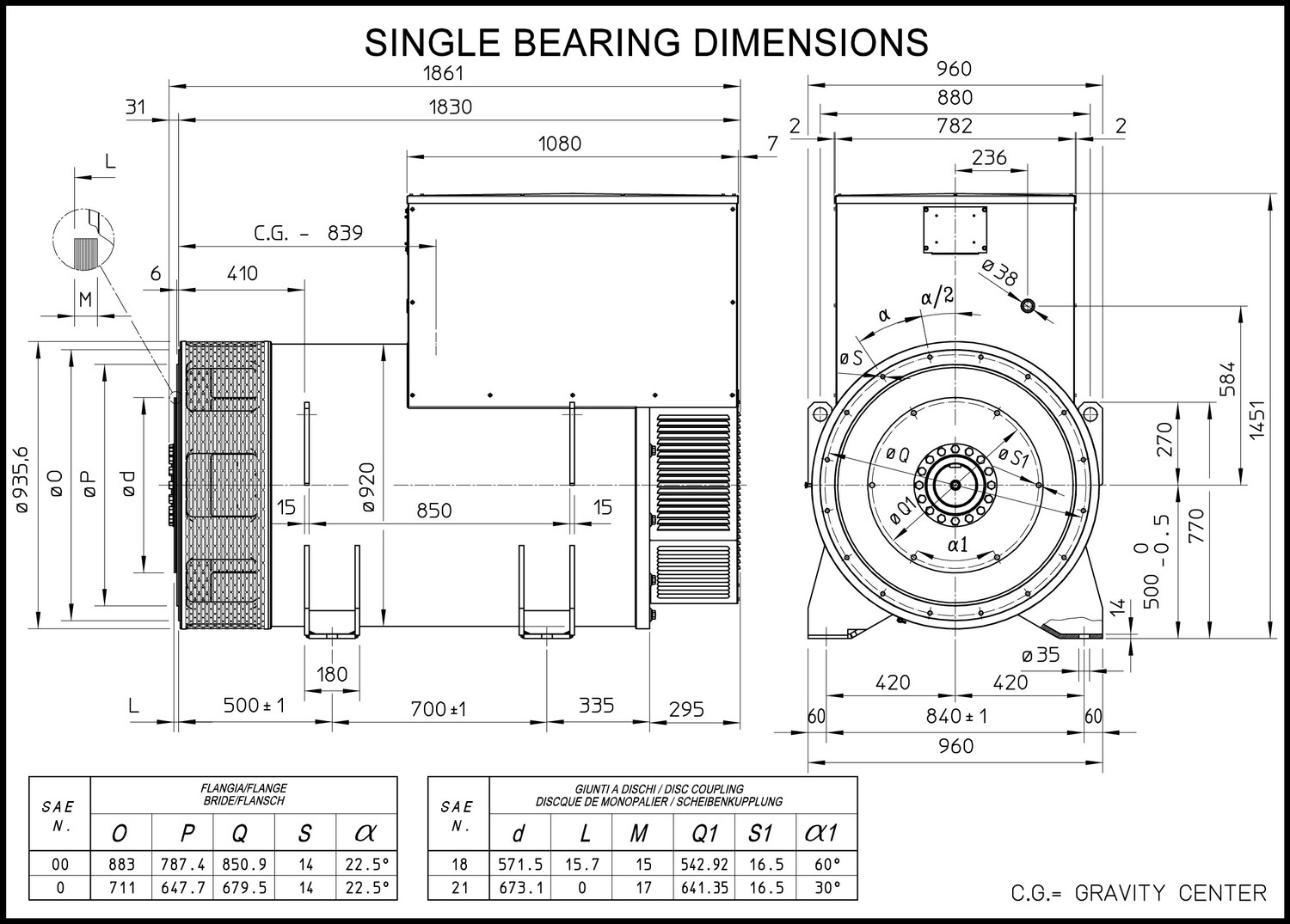

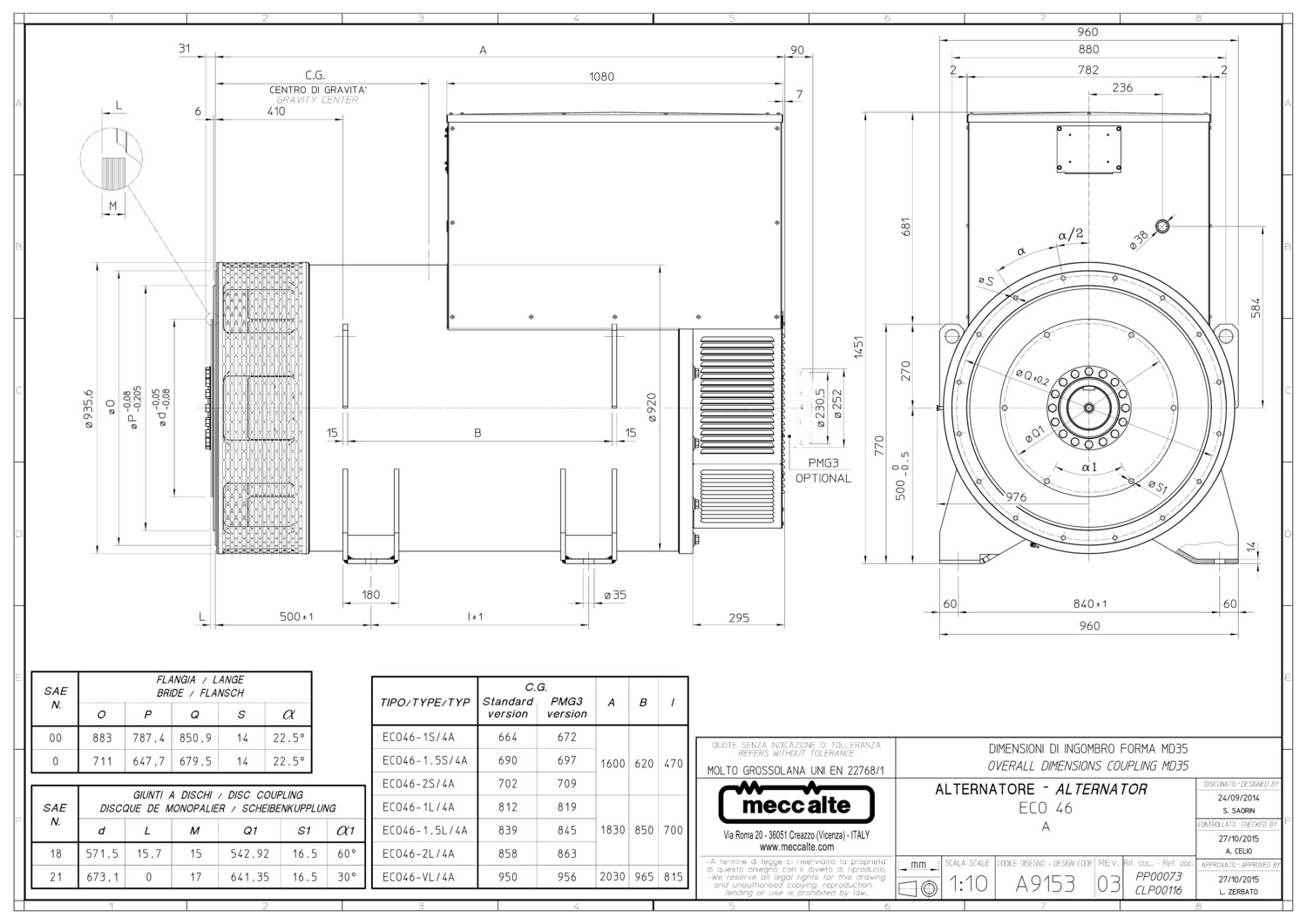

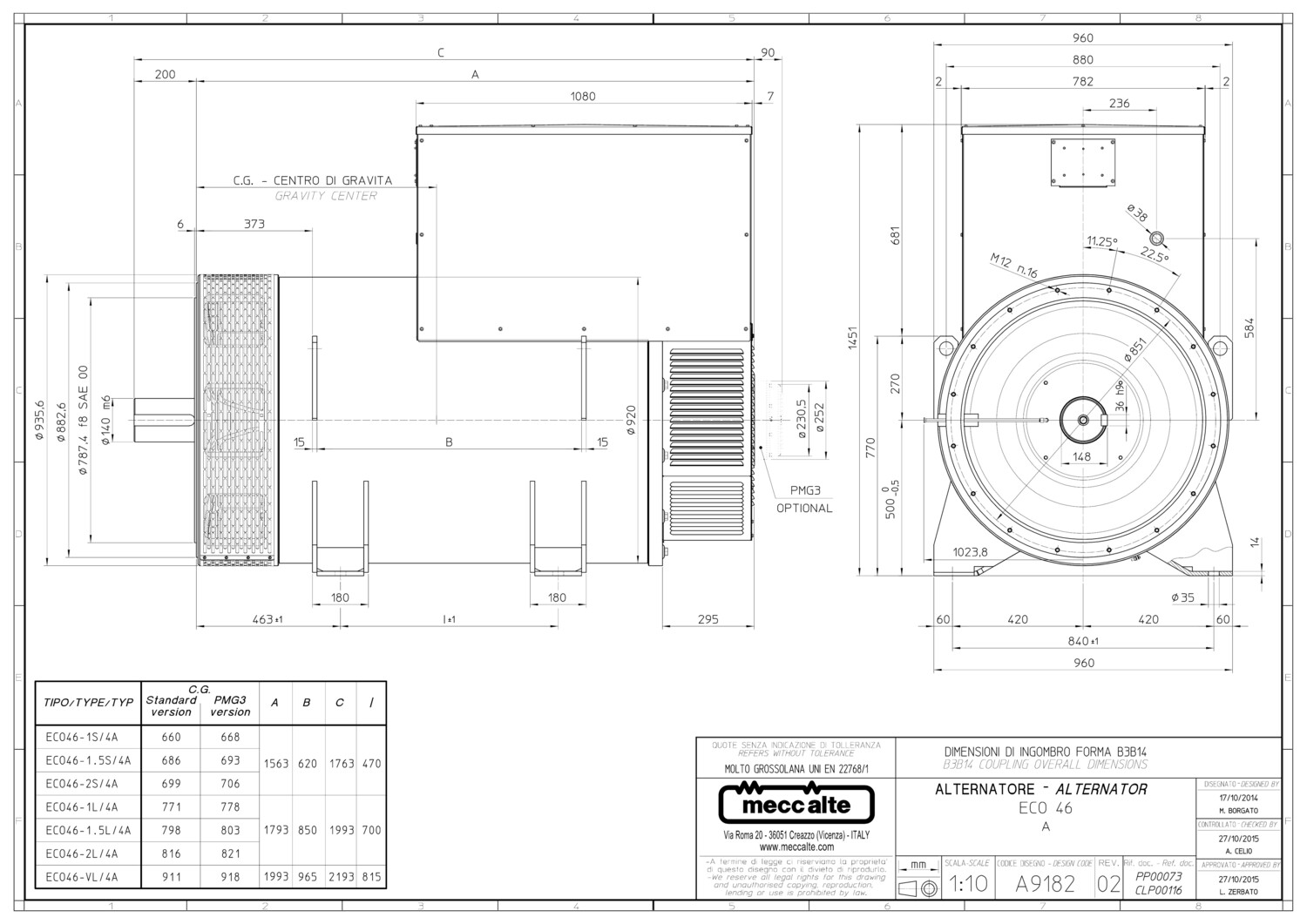

Overall Dimensions Drawings
ECO46 1S4 A
ECO46 1.5S4 A
ECO46 2S4 A
ECO46 1L4 A
ECO46 1.5L4 A
ECO46 2L4 A
ECO46 VL4 A
